DM74AS1032AN Datasheet

  • DM74AS1032AN

  • Quadruple 2-Input OR Driver

  • 4頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DM74AS1032A Quadruple 2-Input OR Driver
October 1986
Revised March 2000
DM74AS1032A
Quadruple 2-Input OR Driver
General Description
This device contains four independent 2-input drivers, each
of which performs the logic OR function. Each driver has
increased output drive capability to allow the driving of high
capacitive loads.
Features
s
Switching specifications at 50 pF
s
Switching specifications guaranteed over full tempera-
ture and V
CC
range
s
Advanced oxide-isolated, ion-implanted Schottky TTL
process
s
Improved line receiving characteristics
Ordering Code:
Order Number
DM74AS1032AM
DM74AS1032AN
Package Number
M14A
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagram
Function Table
Y
=
A
+
B
Inputs
A
L
H
X
L
=
LOW Logic Level
H
=
HIGH Logic Level
X
=
Either LOW or HIGH Logic Level
Output
B
L
X
H
Y
L
H
H
漏 2000 Fairchild Semiconductor Corporation
DS006340
www.fairchildsemi.com

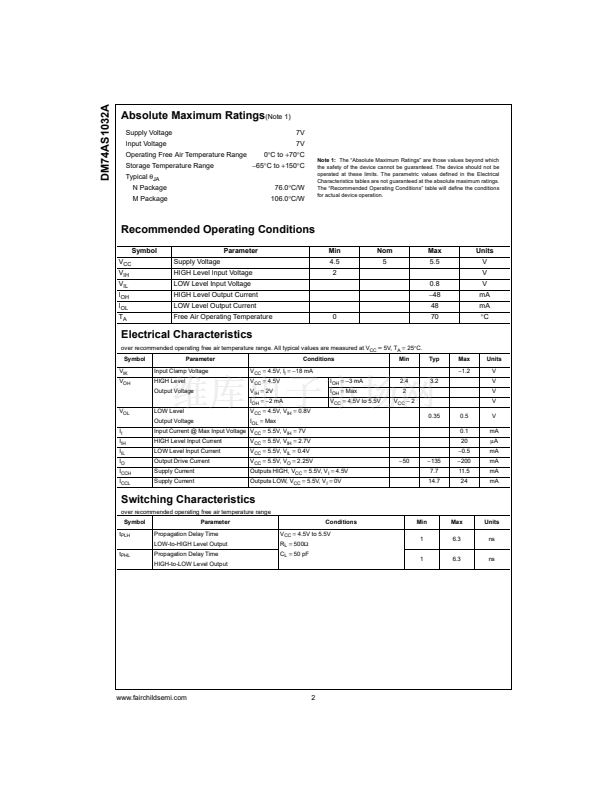

DM74AS1032AN 產品屬性

  • 25

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器

  • 74AS

  • 或門

  • 4

  • 2

  • -

  • 4.5 V ~ 5.5 V

  • -

  • 48mA，48mA

  • 0.8V

  • 2V

  • 6.3ns @ 4.5V ~ 5.5V，50pF

  • 0°C ~ 70°C

  • 通孔

  • 14-DIP

  • 14-DIP（0.300"，7.62mm）

  • 管件

  • 74AS1032
