DM74ALS1004 Hex Inverting Driver
September 1986
Revised February 2000
DM74ALS1004
Hex Inverting Driver
General Description
These devices contain six independent drivers, each of
which performs the logic inverter/complement function.
Features
s
Switching specifications at 50 pF
s
Switching specifications guaranteed over full tempera-
ture and V
CC
range
s
Advanced oxide-isolated, ion-implanted Schottky TTL
process
s
Functionally and pin for pin compatible with Schottky
and low power Schottky TTL counterpart
s
Improved AC performance over Schottky and low power
Schottky counterparts
Ordering Code:
Order Number
DM74ALS1004M
DM74ALS1004N
Package Number
M14A
N14A
Package Description

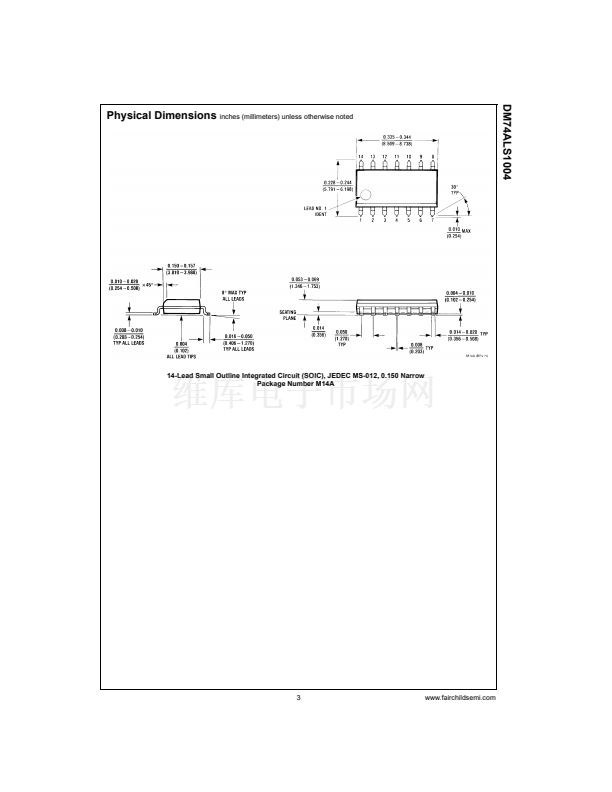

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagram
Function Table
Y
=
A
Input
A
L
H
H
=
HIGH Logic Level
L
=
LOW Logic Level
Output
Y
H
L

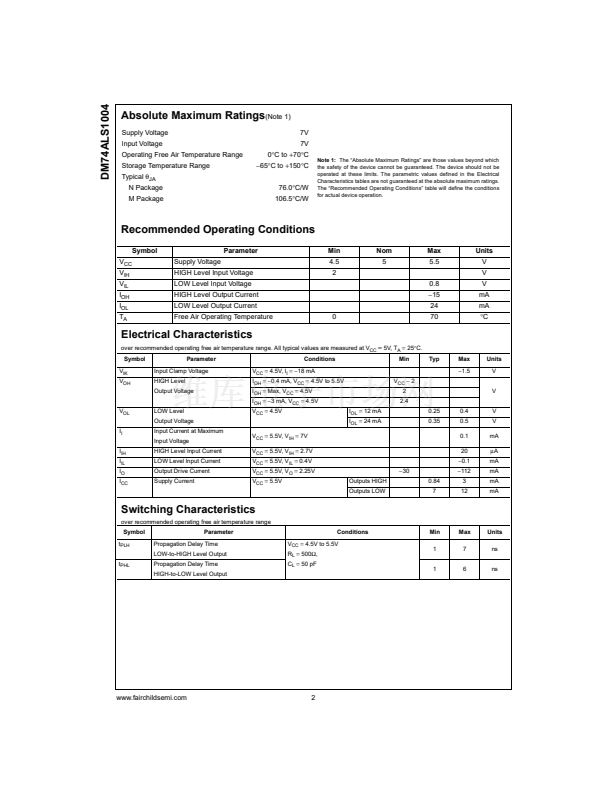

漏 2000 Fairchild Semiconductor Corporation
DS006252
www.fairchildsemi.com
