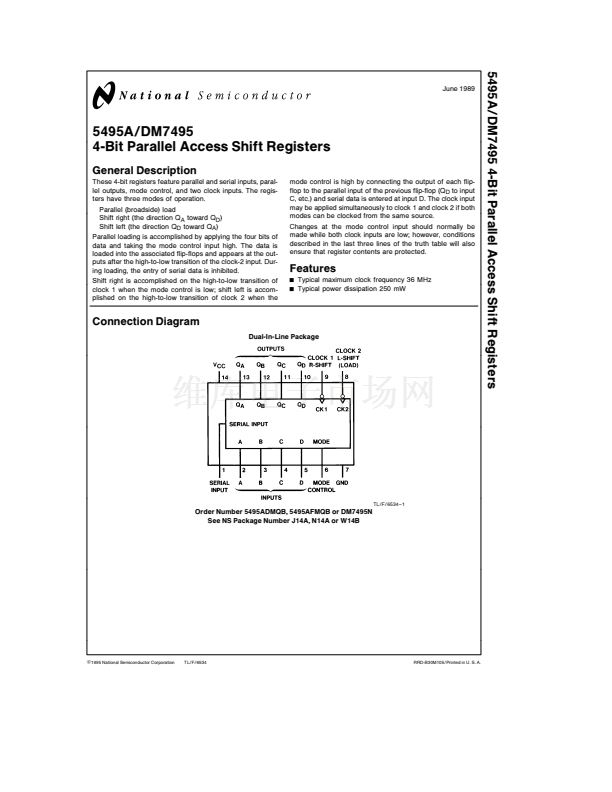

5495A DM7495 4-Bit Parallel Access Shift Registers
June 1989
5495A DM7495
4-Bit Parallel Access Shift Registers
General Description
These 4-bit registers feature parallel and serial inputs paral-
lel outputs mode control and two clock inputs The regis-
ters have three modes of operation
Parallel (broadside) load
Shift right (the direction Q
A
toward Q
D
)
Shift left (the direction Q
D
toward Q
A
)
Parallel loading is accomplished by applying the four bits of
data and taking the mode control input high The data is
loaded into the associated flip-flops and appears at the out-
puts after the high-to-low transition of the clock-2 input Dur-
ing loading the entry of serial data is inhibited
Shift right is accomplished on the high-to-low transition of
clock 1 when the mode control is low shift left is accom-
plished on the high-to-low transition of clock 2 when the
mode control is high by connecting the output of each flip-
flop to the parallel input of the previous flip-flop (Q
D
to input
C etc ) and serial data is entered at input D The clock input
may be applied simultaneously to clock 1 and clock 2 if both
modes can be clocked from the same source
Changes at the mode control input should normally be
made while both clock inputs are low however conditions

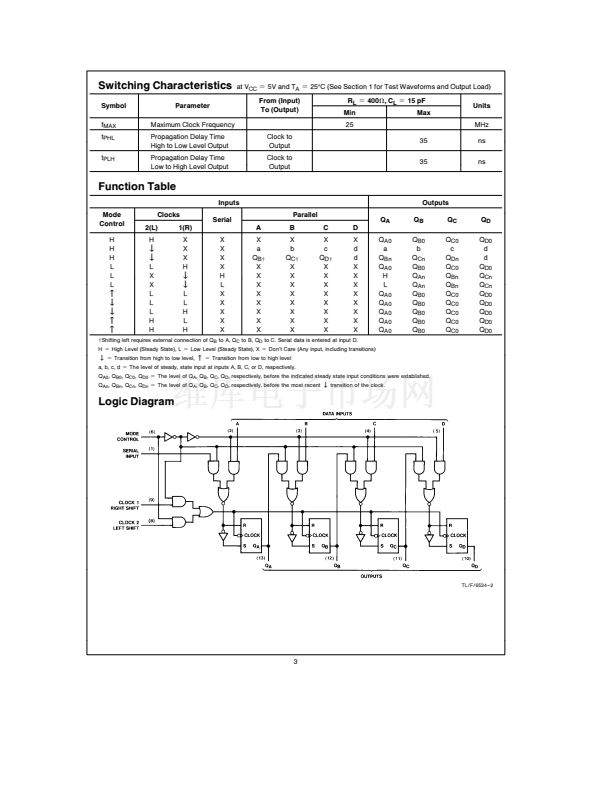

described in the last three lines of the truth table will also
ensure that register contents are protected
Features
Y
Y

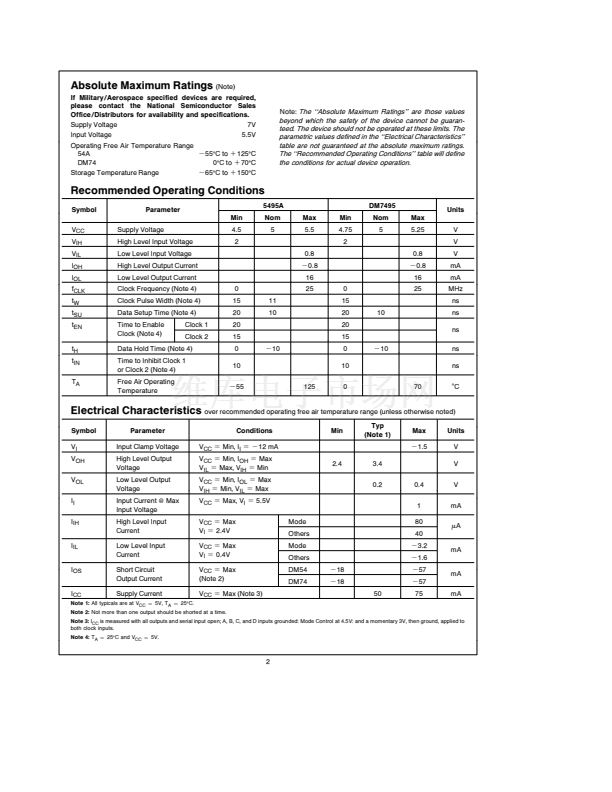

Typical maximum clock frequency 36 MHz
Typical power dissipation 250 mW
Connection Diagram
Dual-In-Line Package
TL F 6534 鈥?1
Order Number 5495ADMQB 5495AFMQB or DM7495N

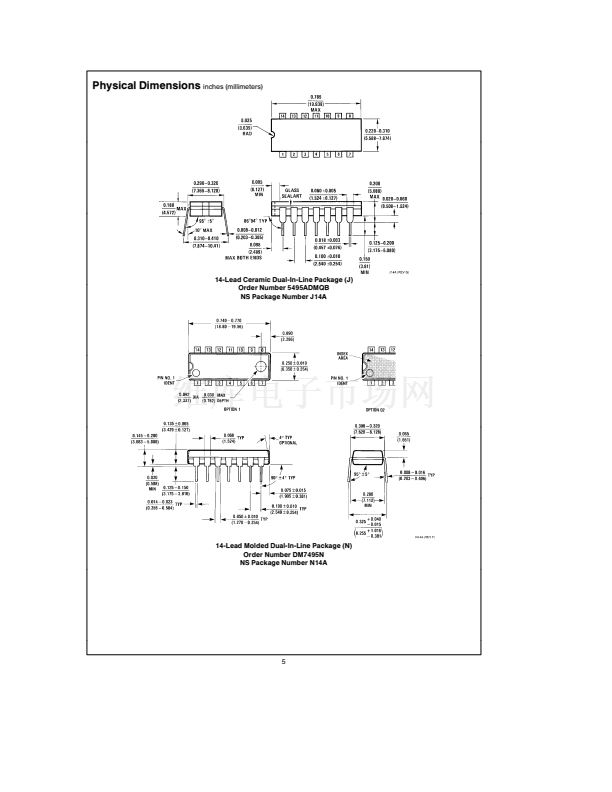

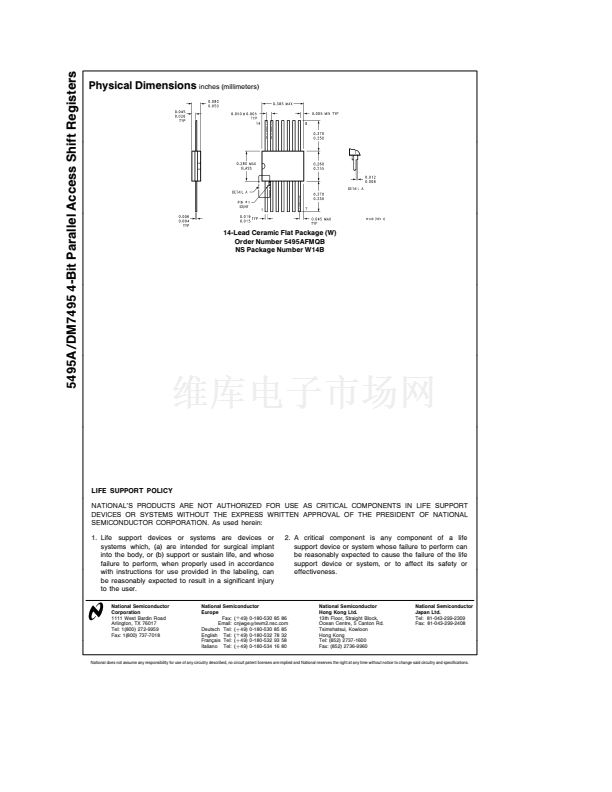

See NS Package Number J14A N14A or W14B
C
1995 National Semiconductor Corporation
TL F 6534
RRD-B30M105 Printed in U S A
