ture, the DiMeNsion family of products is intended for demanding, yet cost-sensitive,
single-stream A/V codec applications in consumer electronics products.
design complexity, power consumption, and time-to-market through its high level of
鈩?/div>
software environment. The
DMN-8600 supports MPEG-1, MPEG-2, and DV-25 encoding, decoding, transrating
and transcoding. The DMN-8600 also supports DVD playback, recording, and simul-
taneous encoding and playback of DVD streams to optical disc, enabling digital video
recording (DVR)/timeshifting applications to be developed on DVD-RAM, DVD-RW,
DVD+RW, and other recording drives. The DMN-8600 represents a quantum leap in
performance, allowing multiple A/V streams to execute simultaneously.
With its embedded, dual 32-bit RISC-based host processors with dedicated
DSP units, the DMN-8600 delivers up to 600 MIPS of processing power. This allows
the DMN-8600 to simultaneously handle multiple A/V processing functions while
managing all system control tasks, eliminating the need for an external host CPU. The
DMN-8600 also integrates a dedicated video processor and motion estimation engine
that enables advanced image processing tasks. LSI Logic鈥檚 proprietary TrueScan Pro
鈩?/div>
de-interlacing and TrueView Pro
鈩?/div>
input video filtering algorithms leverage these
processing elements to deliver the highest quality images available in the market.
The DMN-8600 also performs all audio processing tasks, supporting industry stan-
dard audio encoding and decoding formats, as well as audio post-processing tasks
such as 3D audio effects and bass management functions.
The DMN-8600 is compatible with LSI Logic鈥檚 C-Ware architecture,which
provides hardware abstraction and an object-oriented programming environment that
is reusable across LSI Logic DoMiNo- and ZiVA鈩?based consumer digital video prod-
ucts. C-Ware is implemented in standard ANSI C/C++, provides certified software
library components and standardized API. C-Ware is compatible with WindRiver
Systems
廬
VxWorks RTOS and is compatible with commercially available software
development tools.
Clock
(27 MHz or Core
13.5 Crytsal) Power
I/O
Power
Ground
JTAG
TARGET APPLICATIONS
鈥?Low cost DVD recorders
鈥?Digital video recorders (DVRs)
鈥?Home media servers
8-bit YUV
V_IN
V_OUT
8/16-bit YUV
DMN-8600
Dual Port (4 Channels)
A_In
Bitstream/
Storage
A_OUT
Quad Port (8 Channels)
S/PDIF
UART1
UART2
IR Remote
IR Blaster
SPI
IDC
Host
Optional generic
16/32-bit
Host Interface
DRAM
Link
SIO
DDR/SDR ATAPI/
SDRAM DVD (SD)
CD/SBP
IEEE1394
Link
The
Communications
Company
TM

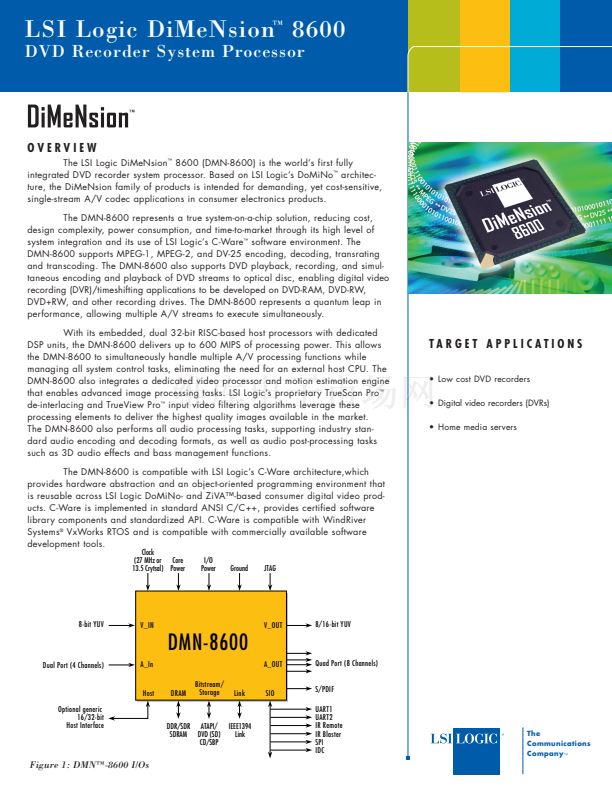

Figure 1: DMN鈩?8600 I/Os
