DIM800DCM12-A000
DIM800DCM12-A000
IGBT Chopper Module
Replaces July 2002 version DS5548-2.0
DS5548-
FEATURES
I
I
I
I
10碌s Short Circuit Withstand
High Thermal Cycling Capability
Non Punch Through Silicon
Isolated MMC Base with AlN Substrates

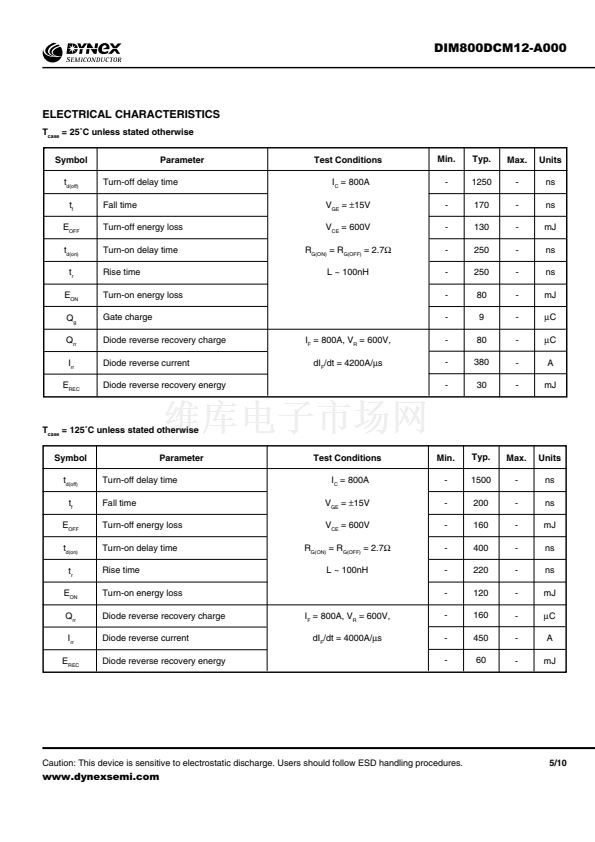

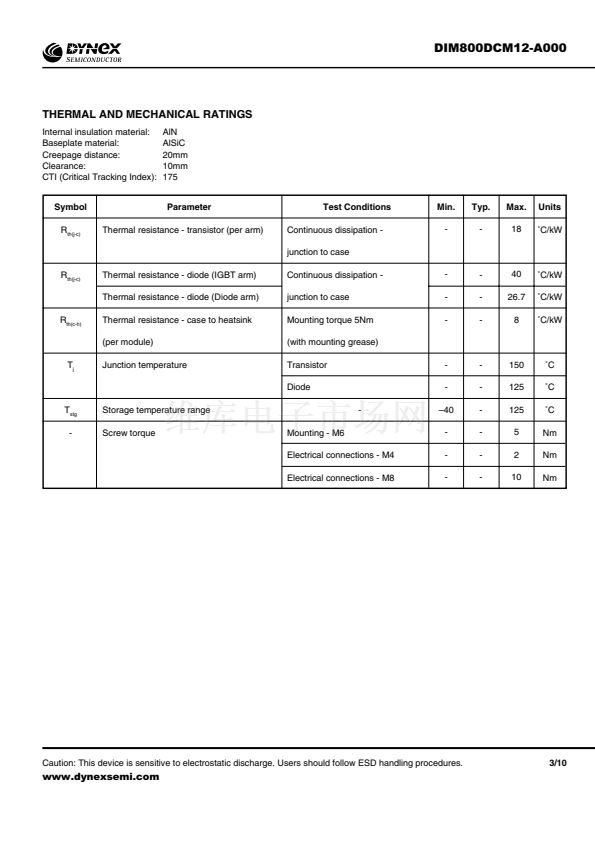

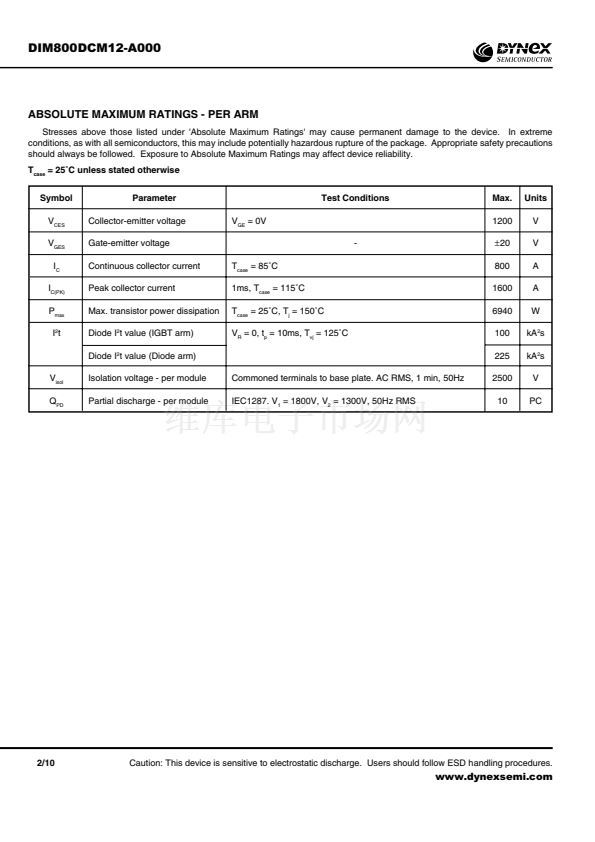

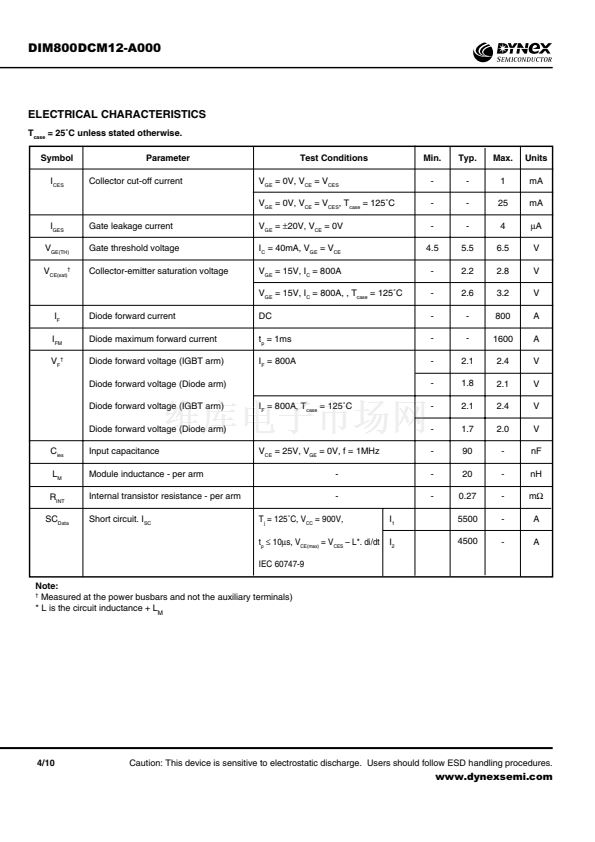

KEY PARAMETERS
V
CES
(typ)
V
CE(sat)
*
(max)
I
C
(max)
I
C(PK)
1200V
2.2V
800A
1600A
*(measured at the power busbars and not the auxiliary terminals)
APPLICATIONS
I
I
I
Inverters
Motor Controllers
Traction Drives
5(E
1
)
1(E1)
2(C2)
6(G
1
)
The Powerline range of modules includes half bridge, dual,
chopper, bi-directional and single switch configurations covering
voltages from 600V to 3300V and currents up to 2400A.

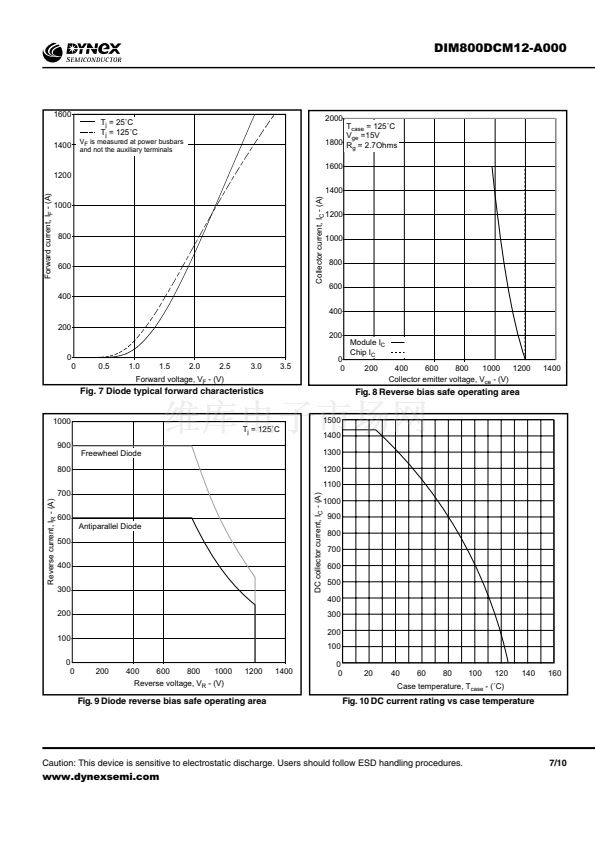

The DIM800DCM12-A000 is a 1200V, n channel
enhancement mode insulated gate bipolar transistor (IGBT)
chopper module. The IGBT has a wide reverse bias safe
operating area (RBSOA) plus full 10碌s short circuit withstand.
This module is optimised for applications requiring high thermal
cycling capability.
The module incorporates an electrically isolated base plate
and low inductance construction enabling circuit designers to
optimise circuit layouts and utilise grounded heat sinks for safety.
7(C
1
)
3(C1)
4(E2)
Fig. 1 Chopper circuit diagram
ORDERING INFORMATION
Order As:
DIM800DCM12-A000
Note: When ordering, please use the whole part number.
Outline type code:
D
(See package details for further information)
Fig. 2 Electrical connections - (not to scale)
Caution: This device is sensitive to electrostatic discharge. Users should follow ESD handling procedures.
1/10
www.dynexsemi.com
