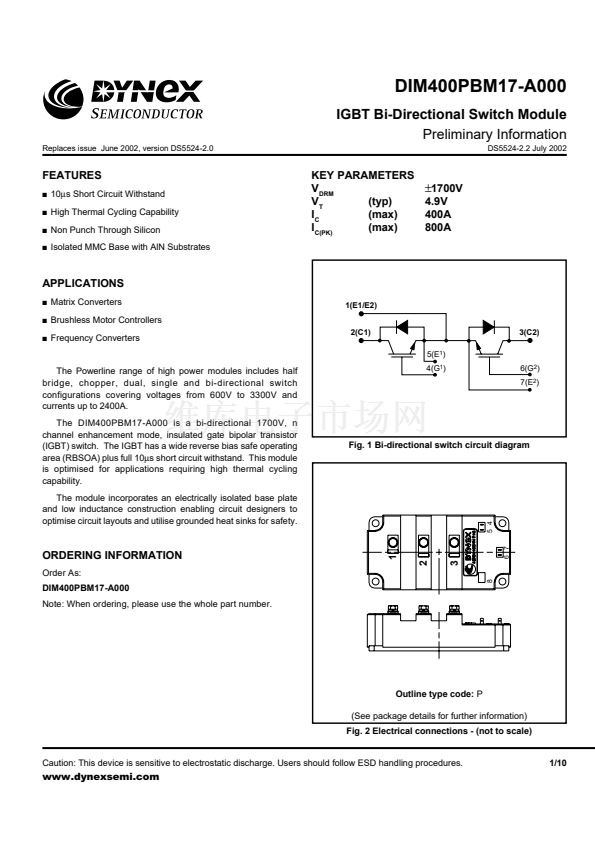

DIM400PBM17-A000
DIM400PBM17-A000
IGBT Bi-Directional Switch Module
Preliminary Information
Replaces issue June 2002, version DS5524-2.0
DS5524-2.2 July 2002
FEATURES
s
s
s
s
10碌s Short Circuit Withstand
High Thermal Cycling Capability
Non Punch Through Silicon
Isolated MMC Base with AlN Substrates

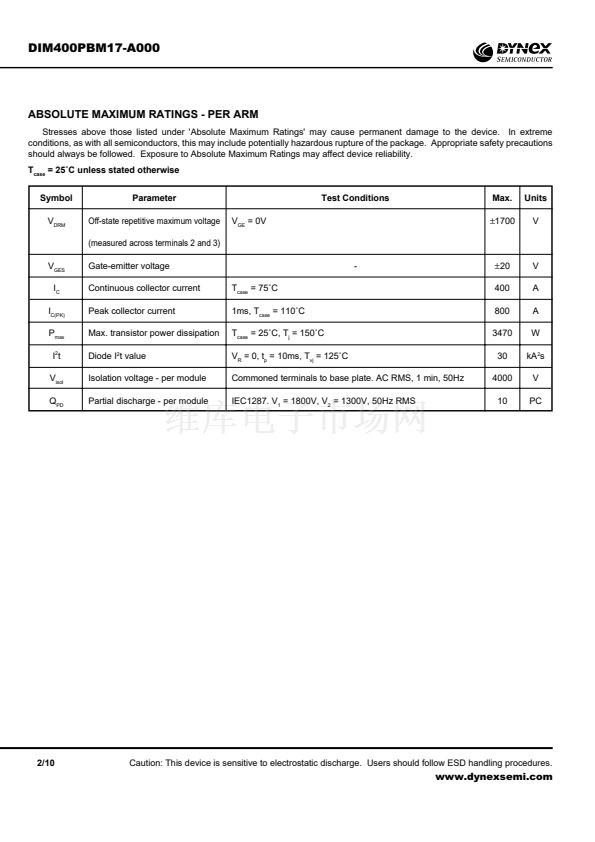

KEY PARAMETERS
V
DRM
(typ)
V
T
(max)
I
C
(max)
I
C(PK)
鹵
1700V
4.9V
400A
800A
APPLICATIONS
s
s
s
Matrix Converters
Brushless Motor Controllers
Frequency Converters
1(E1/E2)
2(C1)
5(E
1
)
3(C2)
The Powerline range of high power modules includes half
bridge, chopper, dual, single and bi-directional switch
configurations covering voltages from 600V to 3300V and
currents up to 2400A.
The DIM400PBM17-A000 is a bi-directional 1700V, n
channel enhancement mode, insulated gate bipolar transistor
(IGBT) switch. The IGBT has a wide reverse bias safe operating
area (RBSOA) plus full 10碌s short circuit withstand. This module
is optimised for applications requiring high thermal cycling
capability.
The module incorporates an electrically isolated base plate
and low inductance construction enabling circuit designers to
optimise circuit layouts and utilise grounded heat sinks for safety.
4(G
1
)
6(G
2
)
7(E
2
)
Fig. 1 Bi-directional switch circuit diagram
5 4
2
Order As:
DIM400PBM17-A000
Note: When ordering, please use the whole part number.
8

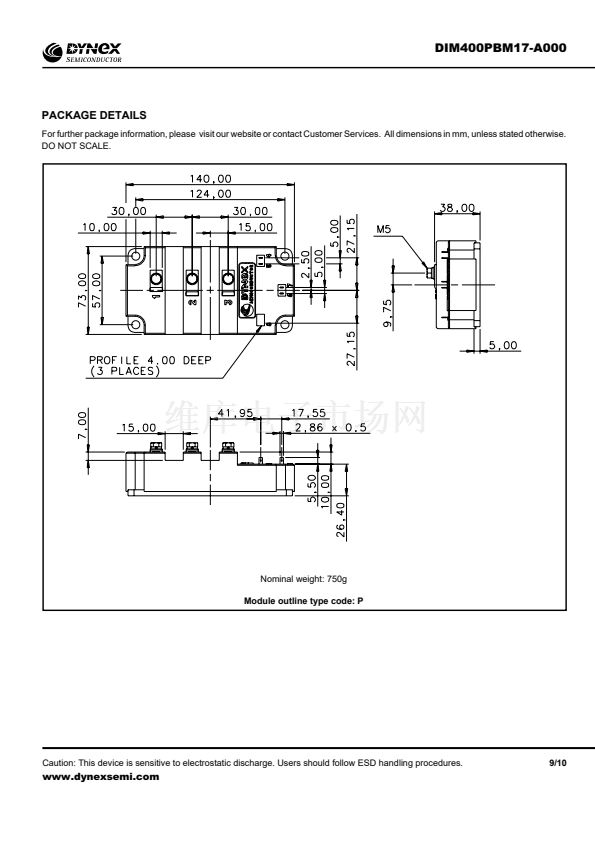

Outline type code:
P
(See package details for further information)
Fig. 2 Electrical connections - (not to scale)
Caution: This device is sensitive to electrostatic discharge. Users should follow ESD handling procedures.
3
ORDERING INFORMATION
1
6 7
1/10
www.dynexsemi.com
