DIM400GCM33-A000
DIM400GCM33-A000

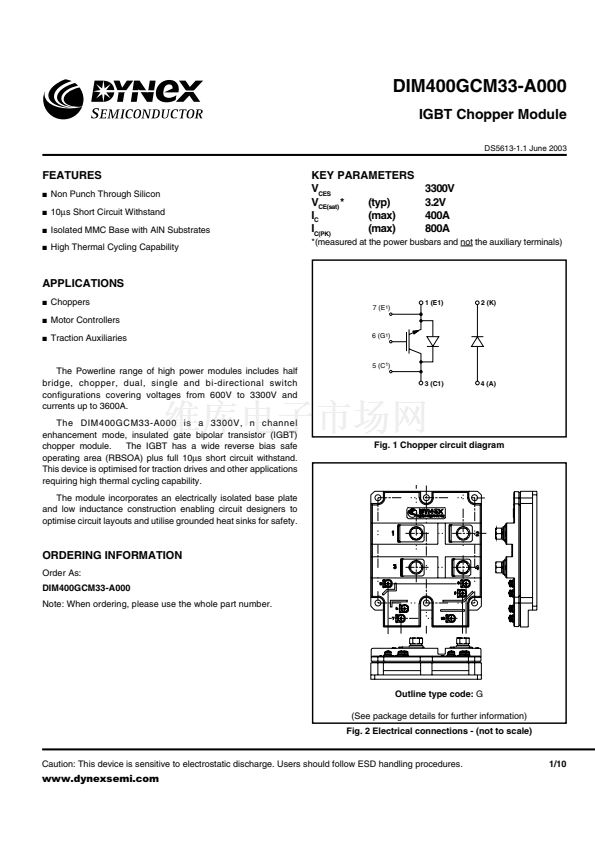

IGBT Chopper Module
DS5613-1.1 June 2003
FEATURES
I
I
I
I
Non Punch Through Silicon
10碌s Short Circuit Withstand
Isolated MMC Base with AlN Substrates
High Thermal Cycling Capability
KEY PARAMETERS
V
CES
V
CE(sat)
*
(typ)
(max)
I
C
I
C(PK)
(max)
3300V
3.2V
400A
800A
*(measured at the power busbars and not the auxiliary terminals)
APPLICATIONS
I
I
I
Choppers
Motor Controllers
Traction Auxiliaries
7 (E
1
)
1 (E1)
2 (K)
6 (G
1
)
The Powerline range of high power modules includes half
bridge, chopper, dual, single and bi-directional switch
configurations covering voltages from 600V to 3300V and
currents up to 3600A.
The DIM400GCM33-A000 is a 3300V, n channel
enhancement mode, insulated gate bipolar transistor (IGBT)
chopper module.
The IGBT has a wide reverse bias safe
operating area (RBSOA) plus full 10碌s short circuit withstand.
This device is optimised for traction drives and other applications
requiring high thermal cycling capability.
The module incorporates an electrically isolated base plate
and low inductance construction enabling circuit designers to
optimise circuit layouts and utilise grounded heat sinks for safety.
5 (C
1
)
3 (C1)
4 (A)
Fig. 1 Chopper circuit diagram
ORDERING INFORMATION
Order As:
DIM400GCM33-A000
Note: When ordering, please use the whole part number.

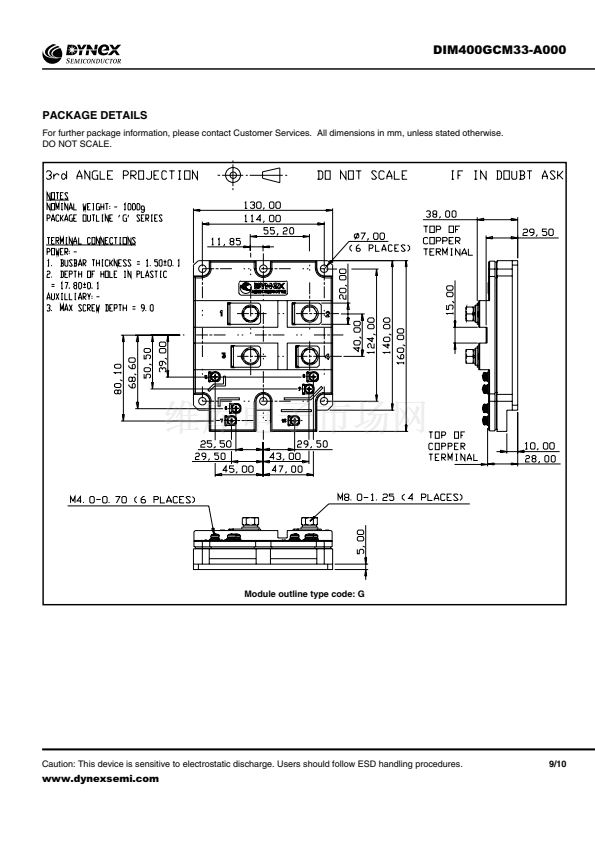

Outline type code:
G
(See package details for further information)
Fig. 2 Electrical connections - (not to scale)
Caution: This device is sensitive to electrostatic discharge. Users should follow ESD handling procedures.
1/10
www.dynexsemi.com
