DIONICS, INC.
65 Rushmore Street
Westbury, NY 11590
Phone: (516) 997-7474
Fax: (516) 997-7479
Website: www.dionics-usa.com

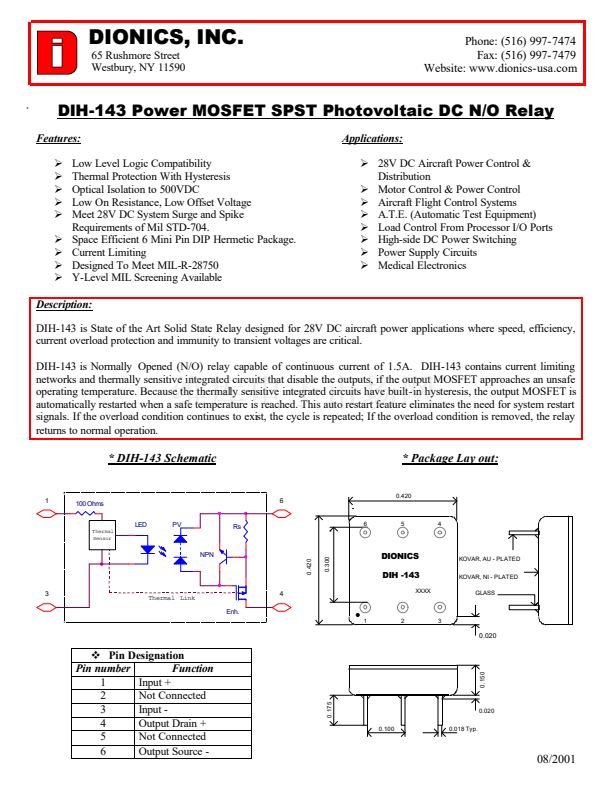

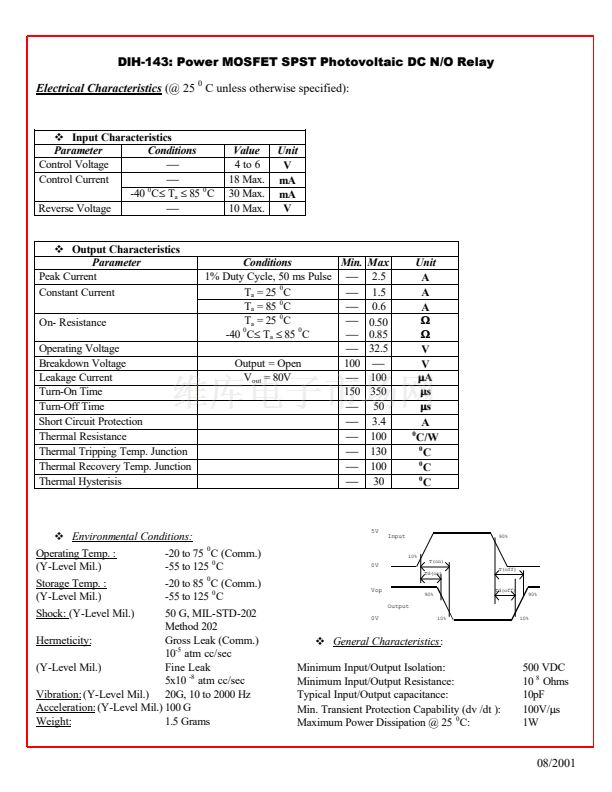

DIH-143 Power MOSFET SPST Photovoltaic DC N/O Relay
Features:
脴
脴
脴
脴
脴
脴
脴
脴
脴
Low Level Logic Compatibility
Thermal Protection With Hysteresis
Optical Isolation to 500VDC
Low On Resistance, Low Offset Voltage
Meet 28V DC System Surge and Spike
Requirements of Mil STD-704.
Space Efficient 6 Mini Pin DIP Hermetic Package.
Current Limiting
Designed To Meet MIL-R-28750
Y-Level MIL Screening Available
Applications:
脴
28V DC Aircraft Power Control &
Distribution
脴
Motor Control & Power Control
脴
Aircraft Flight Control Systems
脴
A.T.E. (Automatic Test Equipment)
脴
Load Control From Processor I/O Ports
脴
High-side DC Power Switching
脴
Power Supply Circuits
脴
Medical Electronics
Description:
DIH-143 is State of the Art Solid State Relay designed for 28V DC aircraft power applications where speed, efficiency,
current overload protection and immunity to transient voltages are critical.
DIH-143 is Normally Opened (N/O) relay capable of continuous current of 1.5A. DIH-143 contains current limiting
networks and thermally sensitive integrated circuits that disable the outputs, if the output MOSFET approaches an unsafe
operating temperature. Because the thermally sensitive integrated circuits have built-in hysteresis, the output MOSFET is
automatically restarted when a safe temperature is reached. This auto restart feature eliminates the need for system restart
signals. If the overload condition continues to exist, the cycle is repeated; If the overload condition is removed, the relay
returns to normal operation.

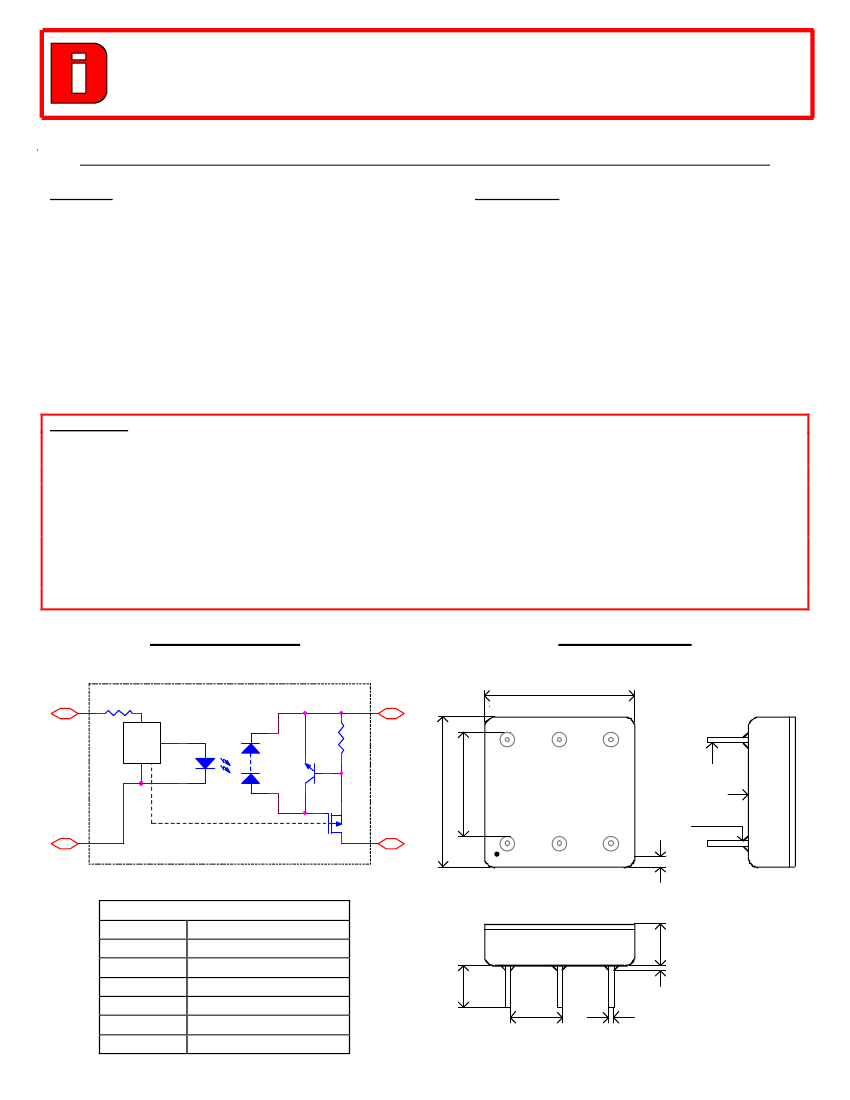

* DIH-143 Schematic
* Package Lay out:
0.420
1
100 Ohms
LED
Thermal
Sensor
6
PV
Rs
6
5
4
0.300
NPN
0.420
DIONICS
DIH -143
XXXX
KOVAR, AU - PLATED
KOVAR, NI - PLATED
GLASS
3
Thermal Link
Enh.
4
1
2
3
0.020
v
Pin Designation
Pin number
Function
1
Input +
2
Not Connected
3
Input -
4
Output Drain +
5
Not Connected
6
Output Source -
0.175
0.020
0.100
0.018 Typ.
0.150
08/2001
