Replacement of Mechanical Relays
Motor Control & Power Control
Aircraft Flight Control Systems
A.T.E (Automatic Test Equipment)
Load Control From Processor I/O Ports
High-side DC Power Switching
Power Supply Circuits
Medical Electronics
Description:

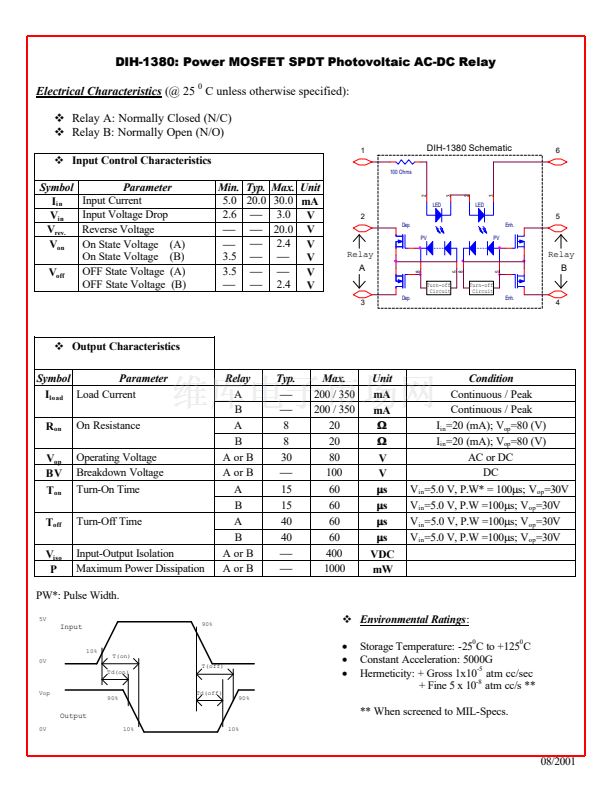

The DIH-1380 is a State-of-the-Art Photovoltaic Solid State Relay designed for special AC-DC switching power
applications where package space efficiency and high reliability are critical.
Each package contains two independent relays, controlled by a single input. One relay is normally closed (N/C) and the
other is normally open (N/O). The relays are built with their input-LEDs internally connected in series and optically
coupled to their power-MOSFET outputs. The N/C and N/O outputs are able to operate either AC or DC.
Each relay, A or B, is capable of carrying 200mA AC or DC continuous current and 350mA DC peak current. Each LED
optically couples to a Photovoltaic (PV) IC chip which responds by generating a voltage. This voltage is internally
connected to the Gate and Source terminals of the MOSFET outputs, thus controlling their current. The DIH-1380 is also
available screened to military specifications, as required.
v
Truth Table
Relay
Input
A
Low
Pins 2-3
High
B
Low
Pins 4-5
High
v
Pin Designations
Function Pin number
Input +
1
Input -
6
Output
Output
Output
Output
2
3
4
5
* Package Layout:
Output
Closed
Open
Open
Closed
0.420
0.300
Weight 1.5 Grams
0.420
6
5
4
DIONICS INC .
DIH -1380
XXXX
KOVAR, AU - PLATED
KOVAR, NI - PLATED
GLASS
Relay
Status
1
2
3
0.020
A
(N/C)
B
(N/O)
Normally
Closed
Normally
Open
0.175
0.020
0.100
0.018 Typ.
0.150
08/2001
1
2
