Replacement of Mechanical Relays
Motor Control & Power Control
Aircraft Flight Control Systems
A.T.E (Automatic Test Equipment)
Load Control From Processor I/O Ports
Power Supply Circuits
Medical Electronics
Description:
The DIH-135 is a State-of-the-Art Photovoltaic Solid State Relay designed for 28V DC Aircraft power applications where
package space-efficiency and high reliability are critical.
Each package contains two independent N/C relays, with separate LED inputs and optically isolated power MOSFET
outputs. The Normally Closed (N/C) outputs both operate DC.
Each relay, A or B, is capable of carrying 300mA DC continuous current and 500mA DC peak current. Each LED
optically couples to a Photovoltaic (PV) IC chip which responds by generating a voltage. This voltage is internally
connected to the Gate and Source terminals of the output MOSFETs, thus controlling their current. The DIH-135 is also
available screened to military specifications, as required.

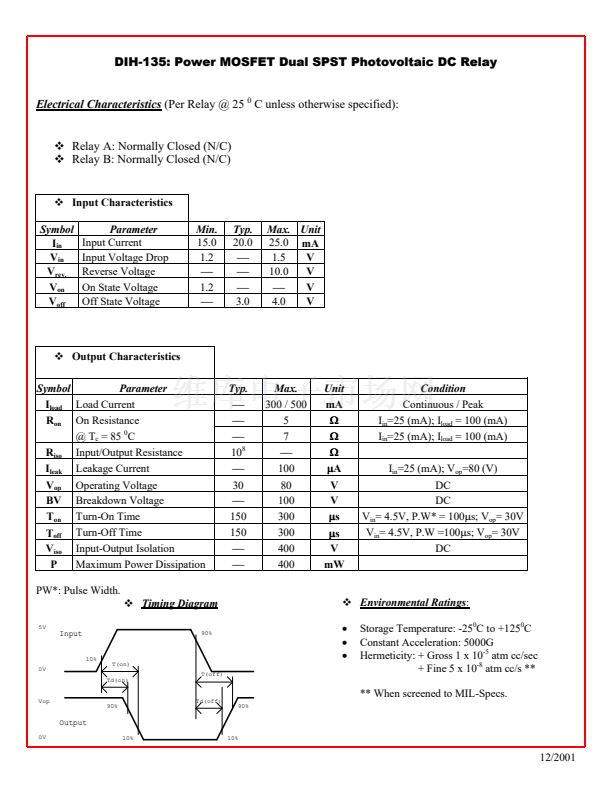

Pin Designations
Relay A
Relay B
Input +
Input +
1
5
Input -
Input -
2
6
3
Output -
7
Output -
4
Output +
8
Output +
* DIH-135 Equivalent Circuit
*
Package Layout:
Weight 1.5 Grams
0.780 Max
.
0.120 Max
.
DIONICS INC
.
DIH-135
xxxx
0.040
0.270 Max.
A-1 ; B-5
100 Ohms
A-3 ; B-7
0.300 Min
.
LED
PV
R
Turn-off
Circuit
Rs
0.046 Typ
.
NPN
A-2 ; B-6
A-4 ; B-8
0.020
0.100
0.010
Dep.
12/2001
