DIONICS, INC.
65 Rushmore Street
Westbury, NY 11590
Phone: (516) 997-7474
Fax: (516) 997-7479
Website: www.dionics- usa.com
DIH-134-SM Power MOSFET Dual N/O SPST Photovoltaic DC Relay
Features:
脴
脴
脴
脴
脴
脴
脴
Applications:
Package Contains Two N/O DC Relays
脴
Replacement of Mechanical Relays
Fast Switching Speeds
脴
Motor Control & Power Control
Optically Isolated to 400V DC.
脴
Aircraft Flight Control Systems
Immune to False Triggering
脴
A.T.E (Automatic Test Equipment)
Hermetic Gull-Wing Surface Mount Package
脴
Load Control From Processor I/O Ports
Y-Level MIL-Screening Available (DIH-134-SMY)
脴
Power Supply Circuits
Designed to Meet MIL-R28750 and 28V DC System
脴
Medical Electronics
Surge and Spike Requirement of MIL STD-704.
脴
Tactical Aircraft
0
0
0
脴
Operation Temp. 鈥?0 C to 85 C @ 200mA Load (Above
85 C Derate Load 5mA /
0
C)
Description:
The DIH-134-SM is a State-of-the-Art Photovoltaic Solid State Relay designed for 28V DC Aircraft power applications
where speed, current overload protection and immunity to transient voltages are critical.
The DIH-134-SM contains current limiting networks and thermally sensitive integrated circuits that disable the output, if
the output MOSFETs approach an unsafe operating temperature. Because the thermally sensitive integrated circuits have
built-in hysteresis, the output MOSFETs are automatically restarted when a safe temperature is reached. This auto restart
feature eliminates the need for system restart signal . If the overload condition continues to exist, the cycle is repeated; if
s
the overload condition is removed, the relay returns to normal operation.
The gull-wing surface mount package contains two independent N/O relays, with separate LED inputs and optically
isolated power MOSFET outputs. Each relay, A or B, is capable of carrying 350mA DC continuous current and 500mA
DC peak current. Each LED optically couples to a Photovoltaic (PV) IC chip which responds by generating a voltage.
This voltage is internally connected to the Gate and Source terminals of the output MOSFETs, thus controlling their
current. The DIH-134-SM is also available screened to military specifications, as required.
Package Layout:
DIH-134-SM Equivalent Circuit:
A-14; B-10
Enh.
0.395 SQ. MAX.
DIH-134-SM
XXXX
0.555 鹵 0.010
DIONICS INC.
A-1; B-5
0.445
100 Ohms
LED
Thermal Link
Thermal
Sensor
PV
NPN
Rs
0.015
0.300
0.050
A-3; B-7
A-12; B-8
0.005
0.120 MAX.
02/2003
1

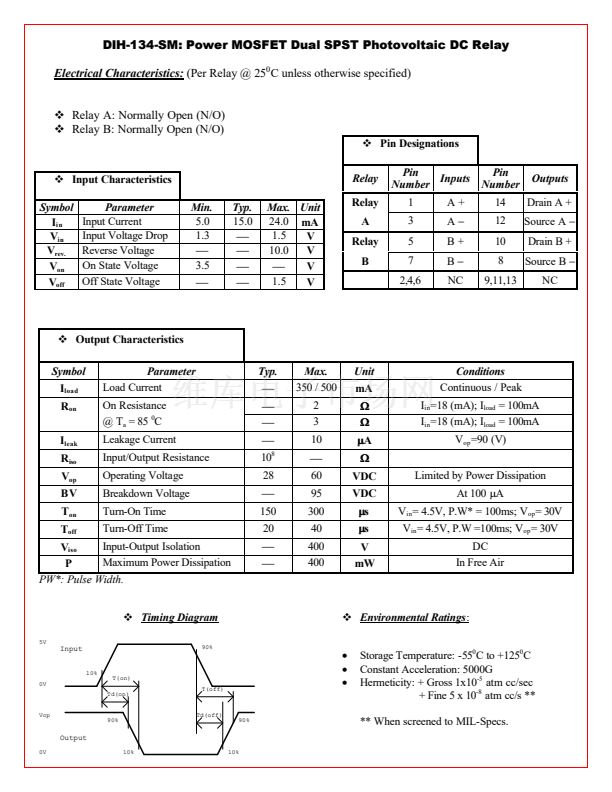

2
