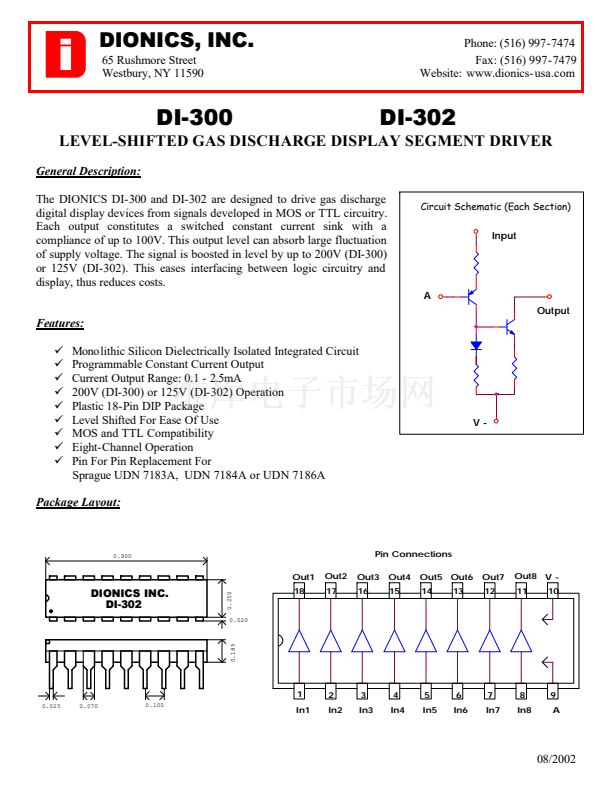

DIONICS, INC.
65 Rushmore Street
Westbury, NY 11590
Phone: (516) 997-7474
Fax: (516) 997-7479
Website: www.dionics- usa.com
DI-300
General Description:
DI-302
LEVEL-SHIFTED GAS DISCHARGE DISPLAY SEGMENT DRIVER
The DIONICS DI-300 and DI-302 are designed to drive gas discharge
digital display devices from signals developed in MOS or TTL circuitry.
Each output constitutes a switched constant current sink with a
compliance of up to 100V. This output level can absorb large fluctuation
of supply voltage. The signal is boosted in level by up to 200V (DI-300)
or 125V (DI-302). This eases interfacing between logic circuitry and
display, thus reduces costs.
Circuit Schematic (Each Section)
Input
A
Output
Features:
眉
眉
眉
眉
眉
眉
眉
眉
眉
Monolithic Silicon Dielectrically Isolated Integrated Circuit
Programmable Constant Current Output
Current Output Range: 0.1 - 2.5mA
200V (DI-300) or 125V (DI-302) Operation
Plastic 18-Pin DIP Package
Level Shifted For Ease Of Use
MOS and TTL Compatibility
Eight-Channel Operation
Pin For Pin Replacement For
Sprague UDN 7183A, UDN 7184A or UDN 7186A
V-
Package Layout:
0.900
Pin Connections
Out1
Out2
17
Out3
16
Out4
15
Out5 Out6
14
13
Out7
12
Out8 V -
11
10
DIONICS INC.
DI-302
0.185
0.250
18
0.020
1
0.025
0.070
0.100
2
In2
3
In3
4
In4
5
In5
6
In6
7
In7
8
In8
9
A
In1
08/2002
1
2
3
4
