DIONICS, INC.
65 Rushmore Street
Westbury, NY 11590
Phone: (516) 997-7474
Fax: (516) 997-7479
Website: www.dionics-usa.com
GAS DISCHARGE DISPLAY SEGMENT DRIVERS
DI-230A
DI-240A
General Description:
The DIONICS DI-230A / DI-240A Series circuits are
designed to drive gas discharge display devices from signals
originating from MOS or TTL circuitry. Each output is a switched,
programmable constant current sink with a voltage compliance of 80
or 125 Volts.
These circuits provide for simple interfaces with displays such as the
Beckman, Burroughs Panaplex
廬
, Cherry or equivalents.
Features:
眉
眉
眉
眉
眉
眉
眉
High Breakdown Voltage: 80V or 125V.
High Input Voltage Capability: 40V
TTL or MOS Compatible
All Output Currents Programmed with Single Resistor
Requires Few Additional Components
Equivalent To DM-8889, MC3491, ITT-505
DC Restoring Input Diode
PROG
Output
Circuit Schematic
(Each Section)
Input
GND
Package Layout:
Pin Connections
0.900
Out1
18
Out2
17
Out3
16
Out4
15
Out5
14
Out6
13
Out7
12
Out8
11
GND
10
DIONICS INC.
DI-230A
0.185
0.250
0.020
1
PROG
0.025
0.070
2
In1
3
In2
4
In3
5
In4
6
In5
7
In6
8
In7
9
In8

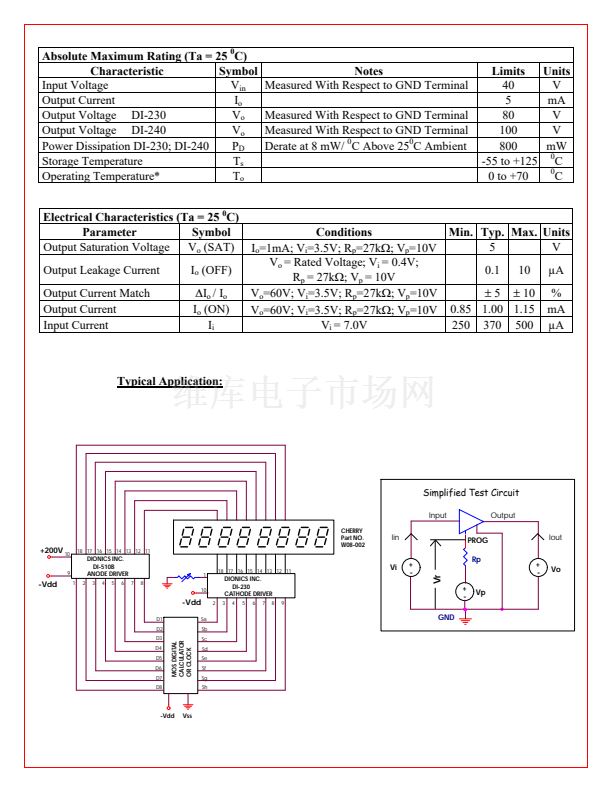

01/2002
1
2
