DG9262DY Datasheet

  • DG9262DY

  • Analog Switch

  • 57.28KB

  • 7頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DG9262/9263
New Product
Vishay Siliconix
Low-Voltage Dual SPST Analog Switch
FEATURES
D
D
D
D
D
D
D
D
D
Low Voltage Operation (+2.7 to +5 V)
Low On-Resistance - r
DS(on
): 40
W
Fast Switching - t
ON
: 35 ns, t
OFF
: 20 ns
Low Leakage - I
COM(on)
: 200-pA max
Low Charge Injection - Q
INJ
: 1 pC
Low Power Consumption
TTL/CMOS Compatible
ESD Protection > 2000 V (Method 3015.7)
Available in MSOP-8 and SOIC-8
BENEFITS
D
D
D
D
Reduced Power Consumption
Simple Logic Interface
High Accuracy
Reduce Board Space
APPLICATIONS
D
D
D
D
D
D
D
Battery Operated Systems
Portable Test Equipment
Sample and Hold Circuits
Cellular Phones
Communication Systems
Military Radio
PBX, PABX Guidance and Control
Systems
DESCRIPTION
The DG9262/9263 is a single-pole/single-throw monolithic
CMOS analog device designed for high performance
switching of analog signals. Combining low power, high speed
(t
ON
: 35 ns, t
OFF
: 20 ns), low on-resistance (r
DS(on)
: 40
W)
and small physical size, the DG9262/9263 is ideal for portable
and battery powered applications requiring high performance
and efficient use of board space.
The DG9262/9263 is built on Vishay Siliconix鈥檚 low voltage
BCD-15 process. Minimum ESD protection, per Method 3015.7 is
2000 V. An epitaxial layer prevents latchup. Break-before -make is
guaranteed for DG9262/9263.
Each switch conducts equally well in both directions when on,
and blocks up to the power supply level when off.
FUNCTIONAL BLOCK DIAGRAM AND PIN CONFIGURATION
NC
1
COM
1
IN
2
GND
1
2
3
4
8
7
6
5
V+
IN
1
COM
2
NC
2
NO
1
COM
1
IN
2
GND
1
2
3
4
8
7
6
5
V+
IN
1
COM
2
NO
2
Top View
Top View
TRUTH TABLE - DG9262
Logic
0
1
Logic 鈥?鈥?/div>
v0.8
V
Logic 鈥?鈥漺 2.4 V
TRUTH TABLE - DG9263
Logic
0
1
Logic 鈥?鈥?/div>
v0.8
V
Logic 鈥?鈥漺 2.4 V
Switch
On
Off
Switch
Off
On
ORDERING INFORMATION
Temp Range
Package
SOIC-8
-40 to 85擄C
擄
MSOP-8
Part Number
DG9262DY
DG9263DY
DG9262DQ
DG9263DQ
Document Number: 70862
S-05298鈥擱ev. B, 17-Dec-01
www.vishay.com
1

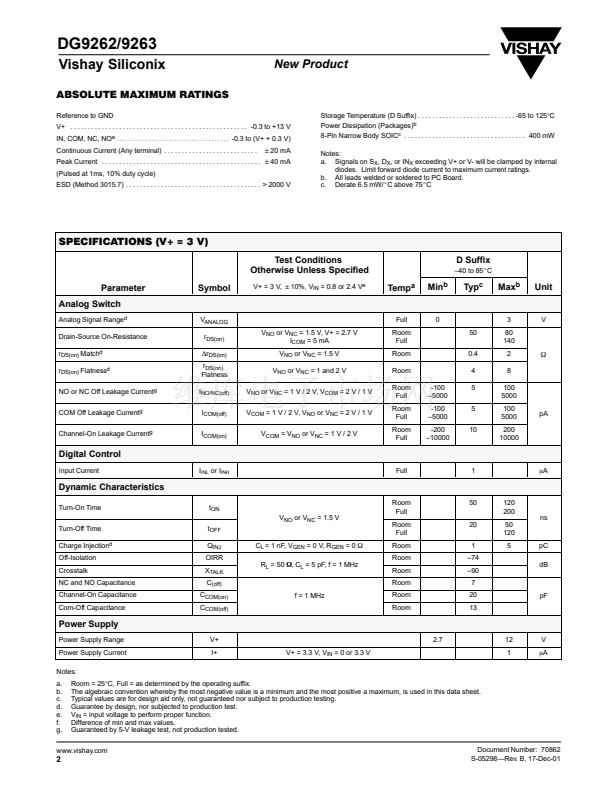

DG9262DY 產品屬性

  • Vishay

  • 模擬開關 IC

  • 2

  • SPST

  • 80 Ohms

  • 120 ns

  • 50 ns

  • 3 V, 5 V, 9 V

  • + 85 C

  • SMD/SMT

  • SOIC-8 Narrow

  • 400 mW

  • - 40 C

  • Tube

  • 100

  • 0.001 mA
