DG408BP45 Datasheet

  • DG408BP45

  • Gate Turn-off Thyristor

  • 19頁

  • DYNEX

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

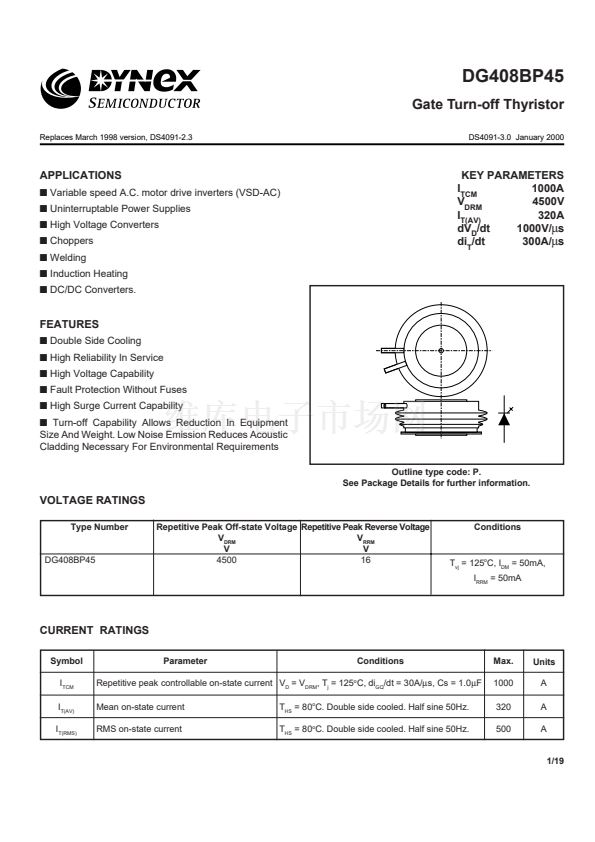

DG408BP45
DG408BP45
Gate Turn-off Thyristor
Replaces March 1998 version, DS4091-2.3
DS4091-3.0 January 2000
APPLICATIONS
s
Variable speed A.C. motor drive inverters (VSD-AC)
s
Uninterruptable Power Supplies
s
High Voltage Converters
s
Choppers
s
Welding
s
Induction Heating
s
DC/DC Converters.
KEY PARAMETERS
1000A
I
TCM
V
DRM
4500V
320A
I
T(AV)
dV
D
/dt
1000V/
碌
s
300A/
碌
s
di
T
/dt
FEATURES
s
Double Side Cooling
s
High Reliability In Service
s
High Voltage Capability
s
Fault Protection Without Fuses
s
High Surge Current Capability
s
Turn-off Capability Allows Reduction In Equipment
Size And Weight. Low Noise Emission Reduces Acoustic
Cladding Necessary For Environmental Requirements
Outline type code: P.
See Package Details for further information.
VOLTAGE RATINGS
Type Number
Repetitive Peak Off-state Voltage Repetitive Peak Reverse Voltage
V
RRM
V
DRM
V
V
4500
16
Conditions
DG408BP45
T
vj
= 125
o
C, I
DM
= 50mA,
I
RRM
= 50mA
CURRENT RATINGS
Symbol
I
TCM
I
T(AV)
I
T(RMS)
Parameter
Conditions
Max.
1000
320
500
Units
A
A
A
Repetitive peak controllable on-state current V
D
= V
DRM
, T
j
= 125
o
C, di
GQ
/dt = 30A/碌s, Cs = 1.0碌F
Mean on-state current
RMS on-state current
T
HS
= 80
o
C. Double side cooled. Half sine 50Hz.
T
HS
= 80
o
C. Double side cooled. Half sine 50Hz.
1/19
