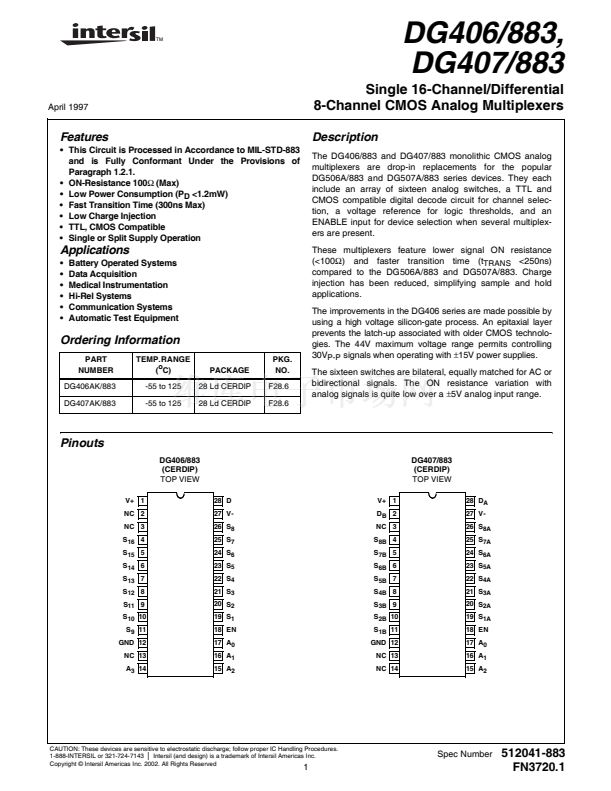

TM

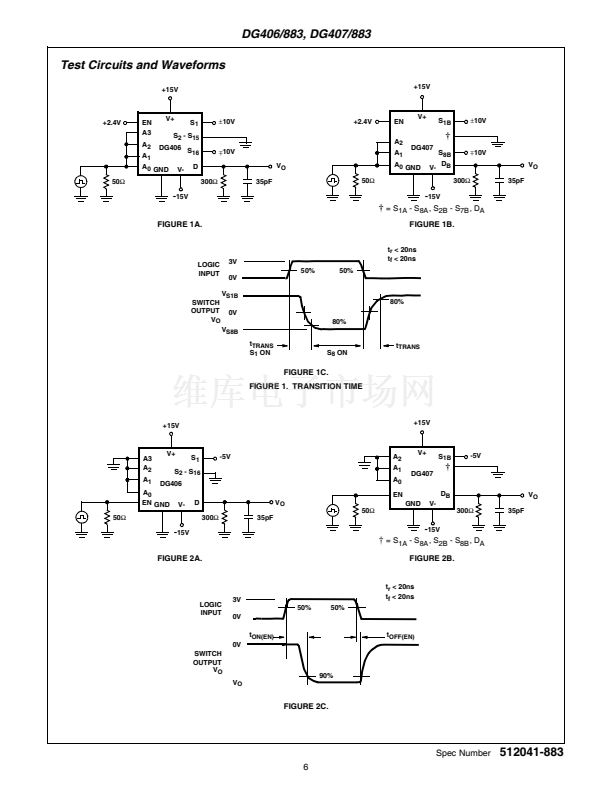

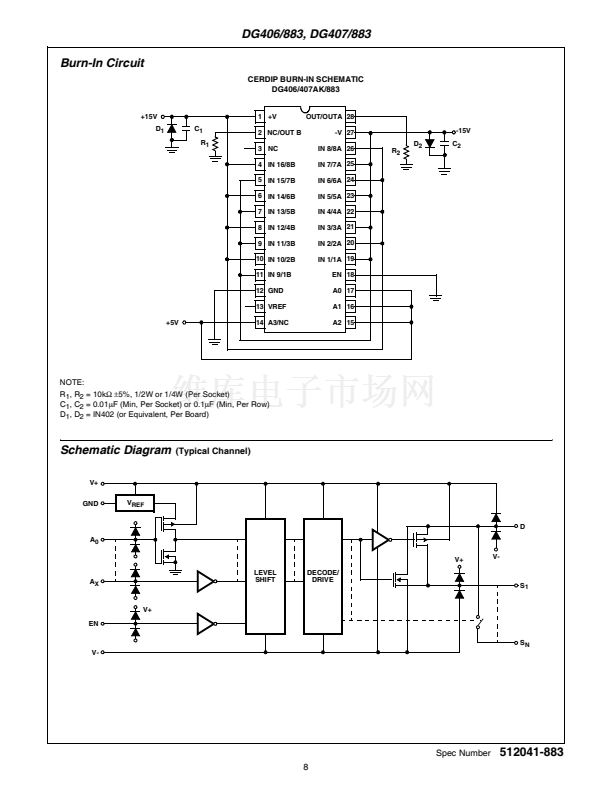

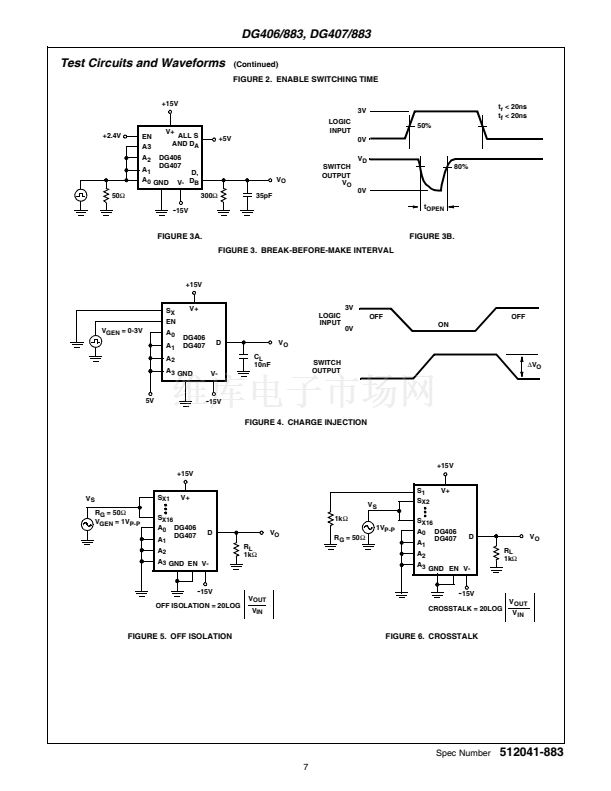

DG406/883,
DG407/883
Single 16-Channel/Differential
8-Channel CMOS Analog Multiplexers
Description
The DG406/883 and DG407/883 monolithic CMOS analog
multiplexers are drop-in replacements for the popular
DG506A/883 and DG507A/883 series devices. They each
include an array of sixteen analog switches, a TTL and
CMOS compatible digital decode circuit for channel selec-
tion, a voltage reference for logic thresholds, and an
ENABLE input for device selection when several multiplex-
ers are present.

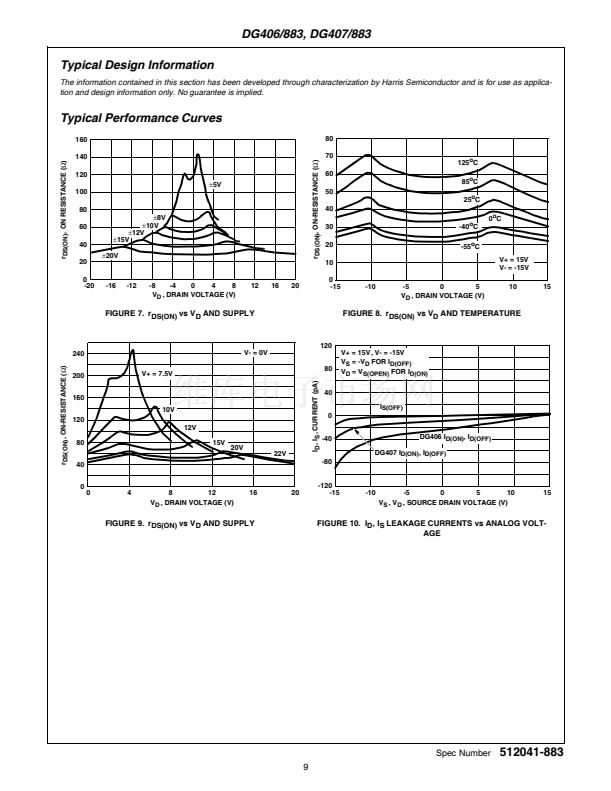

These multiplexers feature lower signal ON resistance
(<100鈩? and faster transition time (t
TRANS
<250ns)
compared to the DG506A/883 and DG507A/883. Charge
injection has been reduced, simplifying sample and hold
applications.
The improvements in the DG406 series are made possible by
using a high voltage silicon-gate process. An epitaxial layer
prevents the latch-up associated with older CMOS technolo-
gies. The 44V maximum voltage range permits controlling
30V
P-P
signals when operating with
鹵15V
power supplies.
The sixteen switches are bilateral, equally matched for AC or
bidirectional signals. The ON resistance variation with
analog signals is quite low over a
鹵5V
analog input range.
April 1997

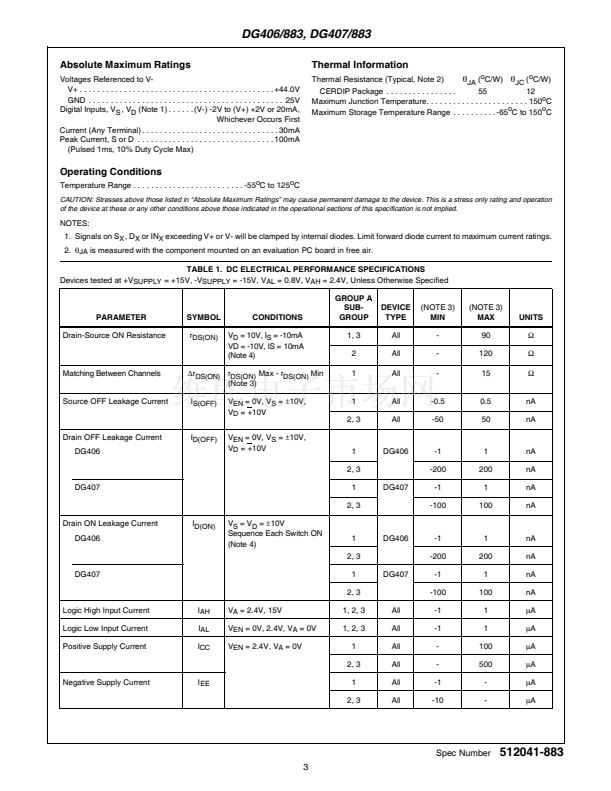

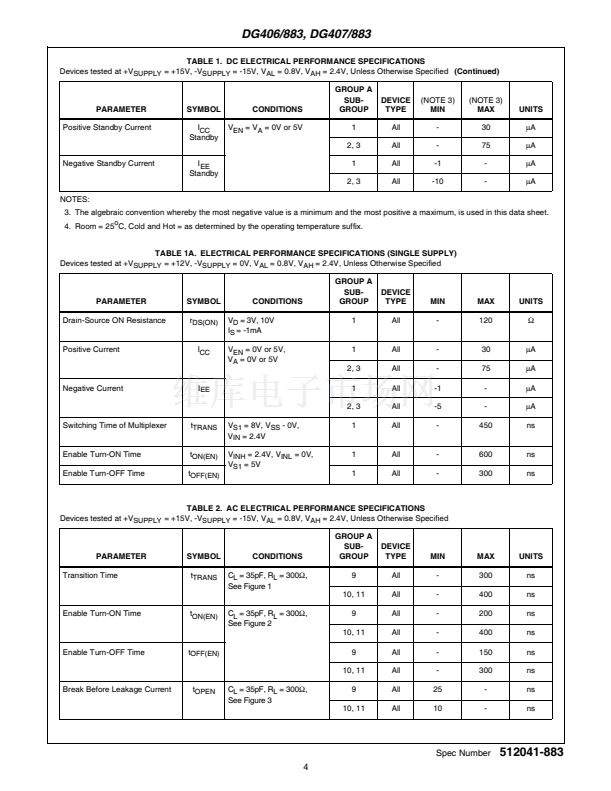

Features
鈥?This Circuit is Processed in Accordance to MIL-STD-883
and is Fully Conformant Under the Provisions of
Paragraph 1.2.1.
鈥?ON-Resistance 100鈩?(Max)
鈥?Low Power Consumption (P
D
<1.2mW)
鈥?Fast Transition Time (300ns Max)
鈥?Low Charge Injection
鈥?TTL, CMOS Compatible
鈥?Single or Split Supply Operation
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Battery Operated Systems
Data Acquisition
Medical Instrumentation
Hi-Rel Systems
Communication Systems
Automatic Test Equipment
Ordering Information
PART
NUMBER
DG406AK/883
DG407AK/883
TEMP. RANGE
(
o
C)
-55 to 125
-55 to 125
PACKAGE
28 Ld CERDIP
28 Ld CERDIP
PKG.
NO.
F28.6
F28.6
Pinouts
DG406/883
(CERDIP)
TOP VIEW
V+ 1
NC 2
NC 3
S
16
4
S
15
5
S
14
6
S
13
7
S
12
8
S
11
9
S
10
10
S
9
11
GND 12
NC 13
A
3
14
28 D
27 V-
26 S
8
25 S
7
24 S
6
23 S
5
22 S
4
21 S
3
20 S
2
19 S
1
18 EN
17 A
0
16 A
1
15 A
2
V+ 1
D
B
2
NC 3
S
8B
4
S
7B
5
S
6B
6
S
5B
7
S
4B
8
S
3B
9
S
2B
10
S
1B
11
GND 12
NC 13
NC 14
DG407/883
(CERDIP)
TOP VIEW
28 D
A
27 V-
26 S
8A
25 S
7A
24 S
6A
23 S
5A
22 S
4A
21 S
3A
20 S
2A
19 S
1A
18 EN
17 A
0
16 A
1
15 A
2
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
|
Intersil (and design) is a trademark of Intersil Americas Inc.
Copyright 漏 Intersil Americas Inc. 2002. All Rights Reserved
Spec Number
1
512041-883
FN3720.1
