DF5A-8DS-5C Datasheet

  • DF5A-8DS-5C

  • 5mm Pitch Miniature Potting Connector for Secondary Power Su...

  • 231.88KB

  • 6頁

  • HRS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

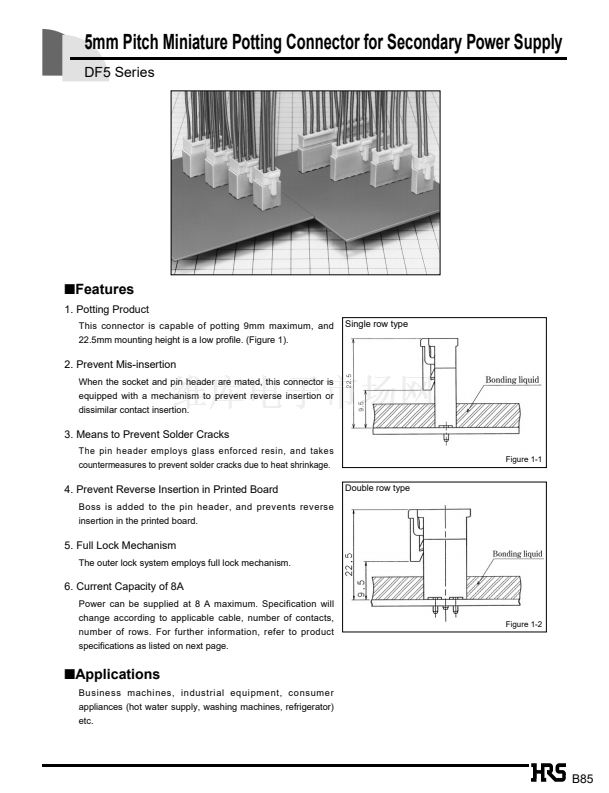

5mm Pitch Miniature Potting Connector for Secondary Power Supply
DF5 Series
sFeatures
1. Potting Product
This connector is capable of potting 9mm maximum, and
22.5mm mounting height is a low profile. (Figure 1).
Single row type
2. Prevent Mis-insertion
When the socket and pin header are mated, this connector is
equipped with a mechanism to prevent reverse insertion or
dissimilar contact insertion.
3. Means to Prevent Solder Cracks
The pin header employs glass enforced resin, and takes
countermeasures to prevent solder cracks due to heat shrinkage.
Figure 1-1
4. Prevent Reverse Insertion in Printed Board
Boss is added to the pin header, and prevents reverse
insertion in the printed board.
Double row type
5. Full Lock Mechanism
The outer lock system employs full lock mechanism.
6. Current Capacity of 8A
Power can be supplied at 8 A maximum. Specification will
change according to applicable cable, number of contacts,
number of rows. For further information, refer to product
specifications as listed on next page.
Figure 1-2
sApplications
Business machines, industrial equipment, consumer
appliances (hot water supply, washing machines, refrigerator)
etc.
B85

DF5A-8DS-5C 產品屬性

  • Board-to-Wire Connectors

  • 100

  • 連接器，互連式

  • 矩形 - 外殼

  • DF5

  • 插座

  • 母形插口

  • 8

  • 0.197"（5.00mm）

  • 2

  • 0.197"（5.00mm）

  • 自由懸掛

  • 壓接

  • 銷鎖

  • 白

  • -

  • 散裝

  • 不提供觸點

  • H10292-ND - CONN HEADER 8POS 5MM DUAL TINH1927-ND - CONN HEADER 8POS 5MM DUAL TIN

  • H11679CT-ND - CONN SOCKET 18-22AWG CRIMP TINH11679TR-ND - CONN SOCKET 18-22AWG CRIMP TINH1933TR-ND - CONN SOCKET 18-22AWG CRIMP TINH1933CT-ND - CONN SOCKET 18-22AWG CRIMP TINH1933-ND - CONN SOCKET 18-22AWG CRIMP TINH1932TR-ND - CONN SOCKET 18-22AWG CRIMP TINH1932CT-ND - CONN SOCKET 18-22AWG CRIMP TINH1932-ND - CONN SOCKET 18-22AWG CRIMP TIN

  • *DF5A-8DS-5CH1920
