DF40SC3L Datasheet

  • DF40SC3L

  • Schottky Rectifiers (SBD) (30V 40A)

  • 10頁

  • SHINDENGEN   SHINDENGEN

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

SHINDENGEN
Schottky Rectifiers (SBD)
Dual
DF40SC3L
30V 40A
FEATURES
鈼?/div>
SMT
鈼?/div>
Tj150鈩?/div>
鈼?/div>
Low V
F
=0.45V
鈼?/div>
P
RRSM
avalanche guaranteed
鈼?/div>
High current capacity with Small
OUTLINE DIMENSIONS
Case : STO-200
Unit : mm
Package
APPLICATION
鈼?/div>
Switching power supply
鈼?/div>
DC/DC converter
鈼?/div>
Home Appliances, Office Equipment
鈼?/div>
Telecommunication
RATINGS
鈼廇bsolute Maximum Ratings (If not specified Tc=25鈩?
Item
Symbol
Conditions
Storage Temperature
Tstg
Operating Junction Temperature
Tj
V
RM
Maximum Reverse Voltage
V
RRSM
Pulse width 0.5ms, duty 1/40
Repetitive Peak Surge Reverse Voltage
Average Rectified Forward Current
I
O
50Hz sine wave, R-load, Rating for each diode Io/2, Tc=112鈩?/div>
Peak Surge Forward Current
I
FSM
50Hz sine wave, Non-repetitive 1 cycle peak value, Rating of per diode, Tj=25鈩?/div>
P
RRSM
Pulse width 10渭s, Rating of per diode, Tj=25鈩?/div>
Repetitive Peak Surge Reverse Power
鈼廍lectrical Characteristics (If not specified Tc=25鈩?
Item
Symbol
Conditions
V
F

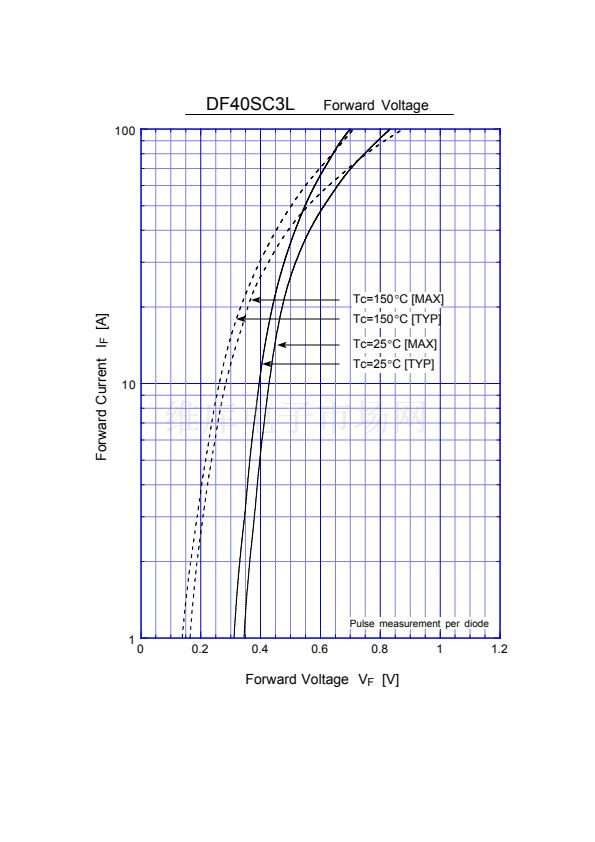

Forward Voltage
I
F
=15A,
Pulse measurement, Rating of per diode
Reverse Current
I
R
V
R
=V
RM
, Pulse measurement, Rating of per diode
Junction Capacitance
Cj
f=1MHz, V
R
=10V, Rating of per diode
胃jc
junction to case
Thermal Resistance
Ratings
-55鈭?50
150
30
35
40
400
1000
Unit
鈩?/div>
鈩?/div>
V
V
A
A
W
Ratings
Max.0.45
Max.17
Typ.1200
Max.1.5
Unit
V
mA
pF
鈩?W
Copyright & Copy;2000 Shindengen Electric Mfg.Co.Ltd

DF40SC3L 產品屬性

  • Shindengen

  • Schottky Diodes

  • 30 V

  • 40 A

  • 400 A

  • Dual Common Cathode

  • 0.45 V at 15 A

  • 17000 uA

  • + 150 C

  • SMD/SMT

  • STO-220

  • Reel - 13 in
