DF1B-4S-2.5R Datasheet

  • DF1B-4S-2.5R

  • 2.5mm Pitch Connector for Discrete Wire Connection (Product ...

  • 17頁

  • HRS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

2.5mm Pitch Connector for Discrete Wire Connection (Product Compliant with UL/CSA Standard)
DF1B Series
sFeatures
1. New Insulation Displacement and Crimping Ideas
This connector is a new type to insert the ID contacts in the case. Using this
method, the following merits can be gained.
1
By using the ID contact and crimping contact together, different current
capacity cables can be mixed in one case.
2
After connection, the contact can be replaced in excellent maintainability.
3
Because the insulation displacement area is protected by the case, high
reliability can be assured.
4
Since the insulation displacement process can be performed only by
replacing the applicator of the existing crimping machine, no expensive
machine for insulation displacement is required.
Cables with different current capacities
can be mixed in one case
ID terminal (AWG24, 26, 28)
Crimping contact (AWG20 to 30)
Figure 1
Potting status

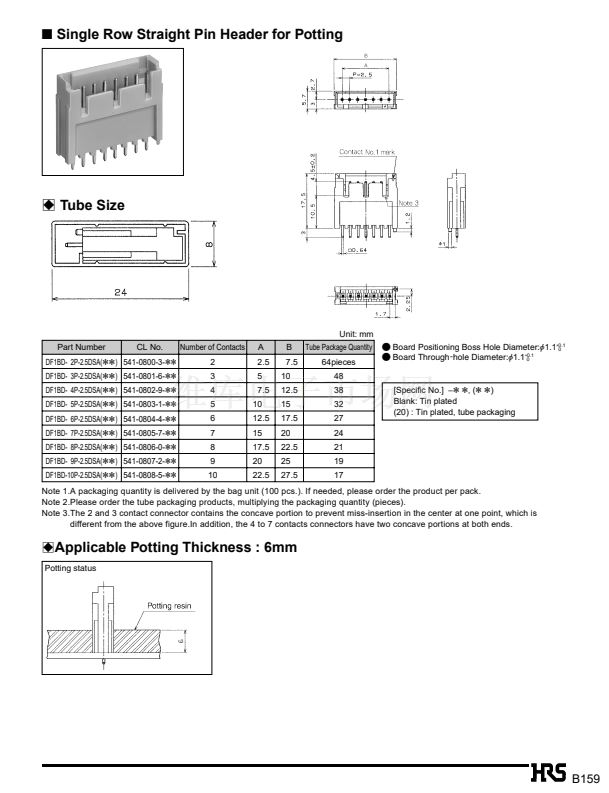

2. Potting Header Available
The high profile header is also available, corresponding to the board potting
process (sealed with resin) as waterproof measures.
3. Broad Variations
The single row and double row contacts are aligned for "Board to Cable" and
"In-line" series, respectively, while standard tin and gold plating products are
available.

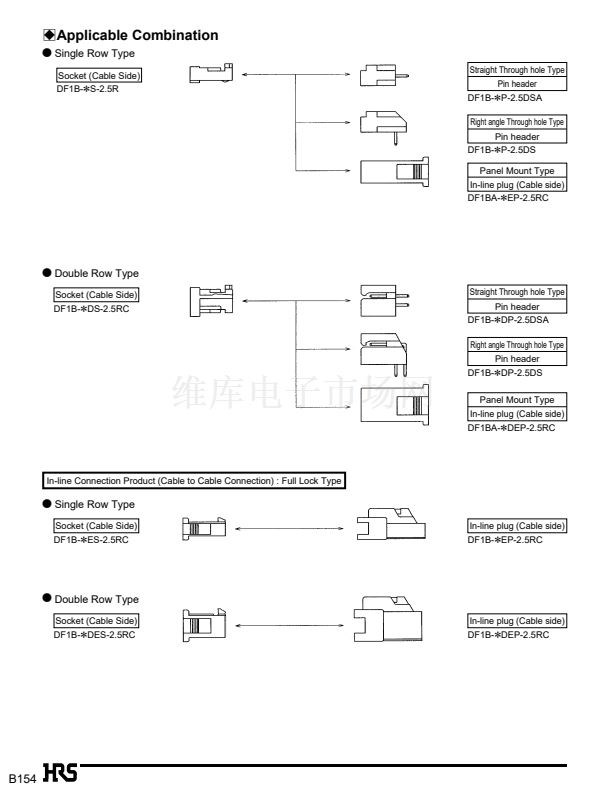

(Refer to the applicable combination pattern on next page.)
sApplications
Business equipment, particularly including the copy machine and printer
Figure 2
B153

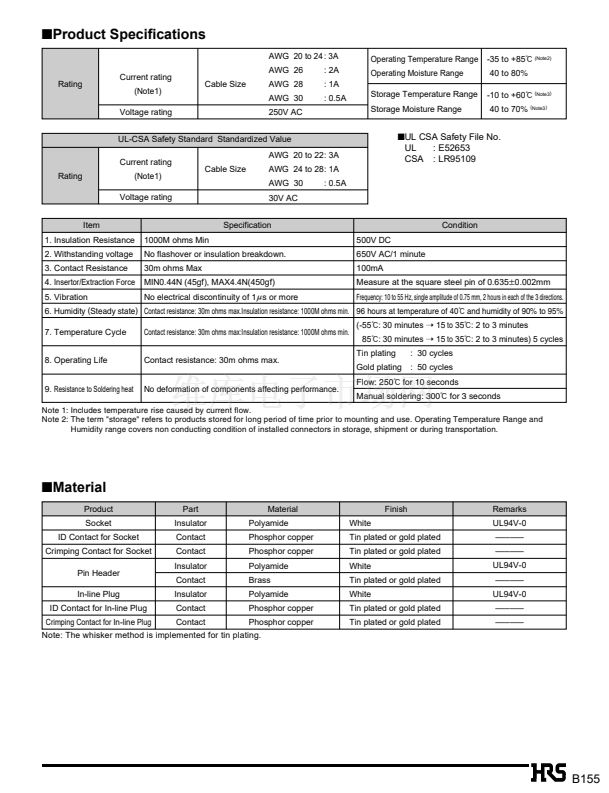

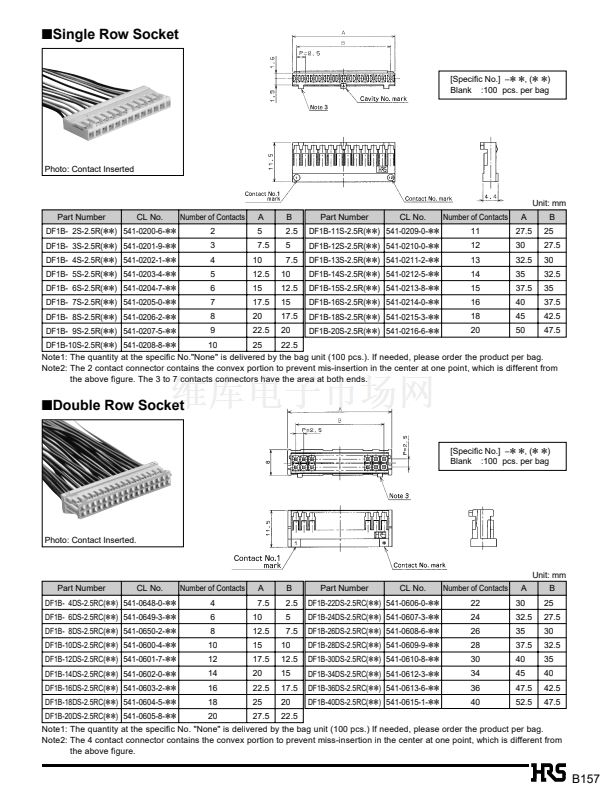

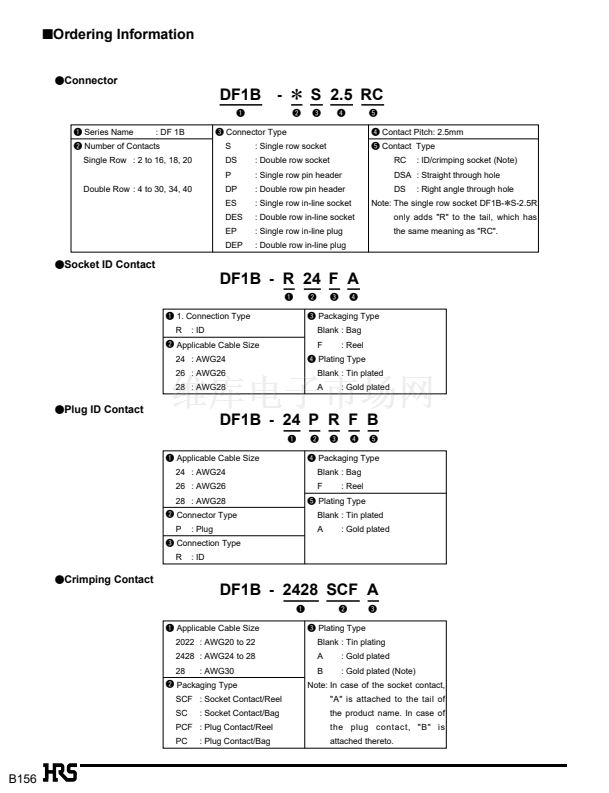

DF1B-4S-2.5R 產品屬性

  • Board-to-Wire Connectors

  • 100

  • 連接器，互連式

  • 矩形 - 外殼

  • DF1B

  • 插座

  • 母形插口

  • 4

  • 0.098"（2.50mm）

  • 1

  • -

  • 自由懸掛

  • 壓接，IDC

  • -

  • 白

  • -

  • 散裝

  • 不提供觸點

  • H11018-ND - CONN HEADER 4POS 2.5MM STR TINH11001-ND - CONN HEADER 4POS 2.5MM R/A TINH10984-ND - CONN HEADER 4POS 2.5MM STR TINH3685-ND - CONN PLUG HOUSING 4POS 2.5MMH3634-ND - CONN HEADER 4POS 2.5MM R/A GOLDH3617-ND - CONN HEADER 4POS 2.5MM STR GOLDH3536-ND - CONN HEADER 4POS 2.5MM STR TINH3519-ND - CONN HEADER 4POS 2.5MM R/A TINH3502-ND - CONN HEADER 4POS 2.5MM STR TIN

  • H11100CT-ND - CONN SOCKET IDC 28AWG GOLDH11099CT-ND - CONN SOCKET IDC 26AWG GOLDH11098CT-ND - CONN SOCKET IDC 24AWG GOLDH11100TR-ND - CONN SOCKET IDC 28AWG GOLDH11100-ND - CONN SOCKET IDC 28AWG GOLDH11099TR-ND - CONN SOCKET IDC 26AWG GOLDH11099-ND - CONN SOCKET IDC 26AWG GOLDH11098TR-ND - CONN SOCKET IDC 24AWG GOLDH11098-ND - CONN SOCKET IDC 24AWG GOLDH3850CT-ND - CONN SOCKET CRIMP 30AWG GOLD更多...

  • *DF1B-4S-2.5RH3783
