DF18E-70DS-0.4V Datasheet

  • DF18E-70DS-0.4V

  • 0.4mm Contact Pitch, 1.5mm above the board, Board-to-Board /...

  • 435.00KB

  • 8頁

  • HRS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

0.4mm Contact Pitch, 1.5mm above the board, Board-to-Board / Board-to-FPC Connectors
DF18 Series
Low profile 鈥?Board-to-board distance of 1.5 mm
FPC
Stiffener
1.5
+0.2
-0.1
Board
FPC
Stiffener
1.5
+0.2
-0.1
Board
High Contact Reliability --- Effective connection wipe of 0.4 mm
Features
1. Allows higher mounting density of board components
Extremely small board mounting pattern and low above-the-
board profile makes the connector suitable for small device
applications.

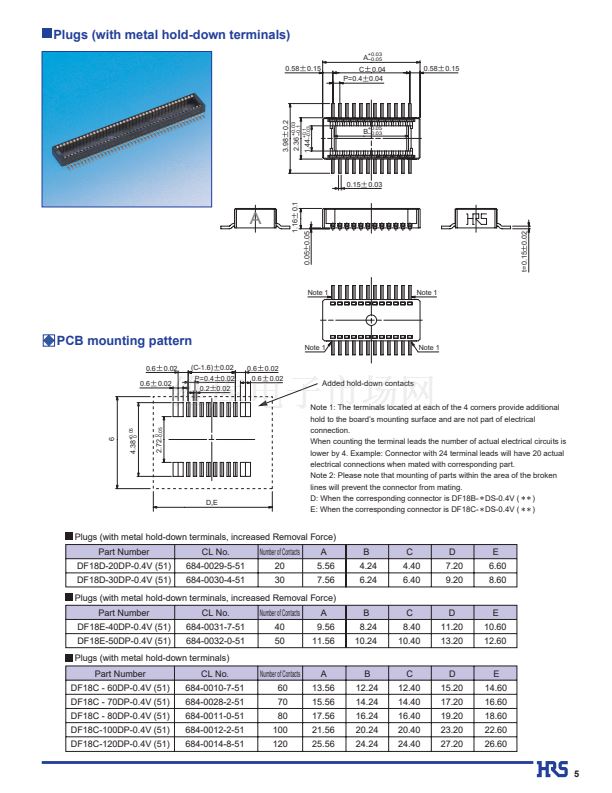

Male contact
Plug
1.5mm above the board
2. High Contact Reliability
Electrical connec tion wipe :0.4mm
Despite it鈥檚 small size and low profile the contacts have large
deflection distance, guaranteeing reliable electrical
performance.
3. Good Mating Characteristics
Large lead-in distance of 0.33 mm in horizontal directions and
tactile 鈥渃lick鈥?confirms fully mated condition of connectors.

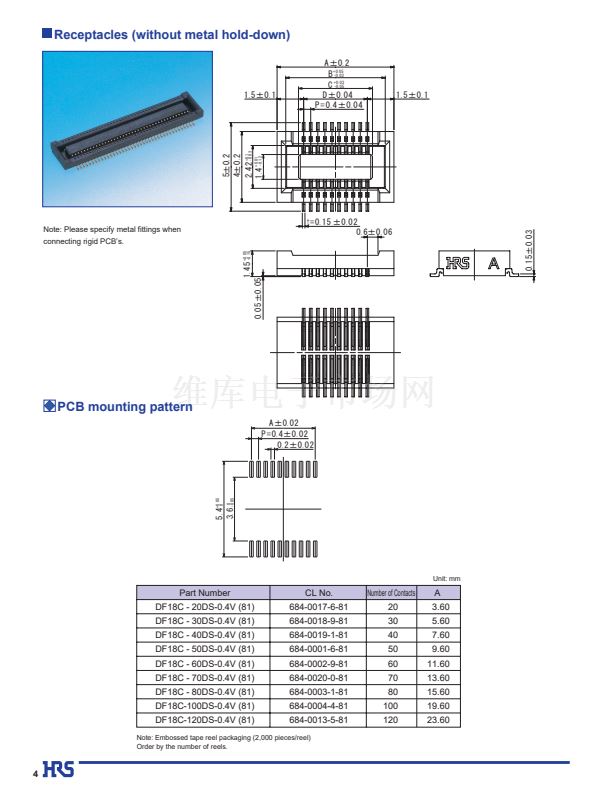

Receptacle
Female contact

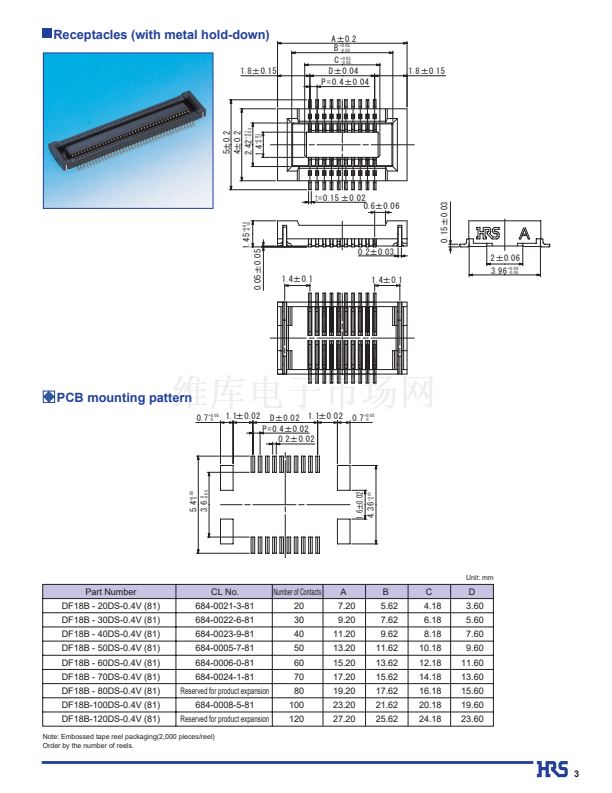

4. Optional Additional Board Retention
For applications requiring extra-strong hold of connectors to the
board connectors can be ordered with optional metal hold-
down.
5. Automatic Board Placement
Connectors have large flat width (Plug: 1.4 mm, Receptacle:
1.44mm) to accommodate pick-up with automatic placement
machines.
Self-alignment distance: 0.33 mm
0.33 mm
Applications
Digital video cameras, Digital still cameras, cellular phones,
miniature displays, cameras portable equipment and other
applications requiring small reliable board-to-board and FPC-
to-Board connections.
2004.6
1
