DF11-8DS-2C Datasheet

  • DF11-8DS-2C

  • 2mm Double-Row Connector (Product Compliant to UL/CSA Standa...

  • 12頁

  • HRS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

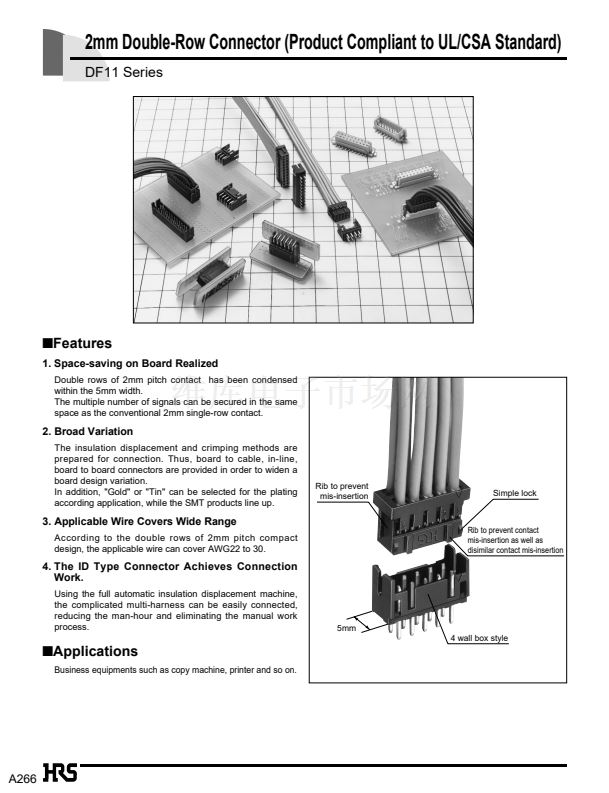

2mm Double-Row Connector (Product Compliant to UL/CSA Standard)
DF11 Series
sFeatures
1. Space-saving on Board Realized
Double rows of 2mm pitch contact has been condensed
within the 5mm width.
The multiple number of signals can be secured in the same
space as the conventional 2mm single-row contact.
2. Broad Variation
The insulation displacement and crimping methods are
prepared for connection. Thus, board to cable, in-line,
board to board connectors are provided in order to widen a
board design variation.
In addition, "Gold" or "Tin" can be selected for the plating
according application, while the SMT products line up.
Rib to prevent
mis-insertion
Simple lock
3. Applicable Wire Covers Wide Range
According to the double rows of 2mm pitch compact
design, the applicable wire can cover AWG22 to 30.
Rib to prevent contact
mis-insertion as well as
disimilar contact mis-insertion
4. The ID Type Connector Achieves Connection
Work.
Using the full automatic insulation displacement machine,
the complicated multi-harness can be easily connected,
reducing the man-hour and eliminating the manual work
process.
5mm
4 wall box style
sApplications
Business equipments such as copy machine, printer and so on.
A266

DF11-8DS-2C 產品屬性

  • Board-to-Wire Connectors

  • 100

  • 連接器，互連式

  • 矩形 - 外殼

  • DF11

  • 插座

  • 母形插口

  • 8

  • 0.079"（2.00mm）

  • 2

  • 0.079"（2.00mm）

  • 自由懸掛

  • 壓接

  • -

  • 黑

  • -

  • 散裝

  • 不提供觸點

  • DF11-8DP-2DSA(08)-ND - CONN 8POS 2MM PCB TINDF11-8DP-2V(57)-ND - CONN HEADER 8POS 2MM SMD GOLDH10261-ND - CONN HEADER 8POS 2MM SMD TINH10246-ND - CONN HEADER 8POS 2MM RT ANG TINH10231-ND - CONN HEADER 8POS 2MM PCB TINH2899-ND - CONN HEADER 8POS 2MM SMD GOLDH2883-ND - CONN HEADER 8POS 2MM SMD TINH2930-ND - CONN ADAPTER PLUG/PLUG 8POS 2MMH2852-ND - CONN HEADER 8POS 2MM PCB GOLDH2915-ND - CONN PLUG HOUSING 8POS 2MM更多...

  • H2951-ND - CONN SOCKET 30AWG CRIMP GOLDH2951TR-ND - CONN SOCKET 30AWG CRIMP GOLDH2950TR-ND - CONN SOCKET 22AWG CRIMP TINH2950-ND - CONN SOCKET 22AWG CRIMP TINH2954TR-ND - CONN SOCKET 30AWG CRIMP TINH2954-ND - CONN SOCKET 30AWG CRIMP TINH2953-ND - CONN SOCKET 22AWG CRIMP GOLDH1505TR-ND - CONN SOCKET 24-28AWG CRIMP GOLDH1504TR-ND - CONN SOCKET 24-28AWG CRIMP TINH1505-ND - CONN SOCKET 24-28AWG CRIMP GOLD更多...

  • *DF11-8DS-2CH2022
