SPICE MODELS: DDZ9681 DDZ9682 DDZ9683 DDZ9684 DDZ9685 DDZ9686 DDZ9687 DDZ9688 DDZ9689 DDZ9690 DDZ9691 DDZ9692 DDZ9693

DDZ9694 DDZ9696 DDZ9697 DDZ9698 DDZ9699 DDZ9700 DDZ9701 DDZ9702 DDZ9703 DDZ9705 DDZ9707 DDZ9708 DDZ9709 DDZ9711 DDZ9712 DDZ9713

DDZ9714 DDZ9715 DDZ9716 DDZ9717

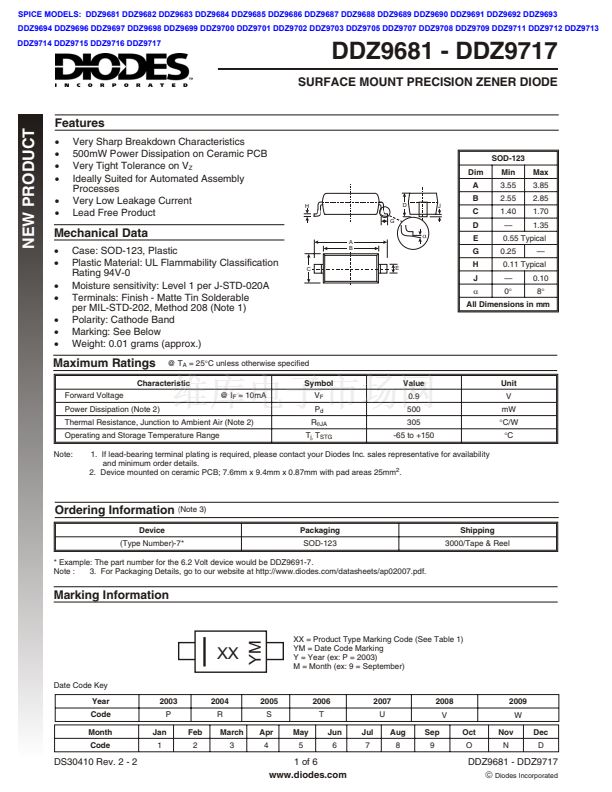

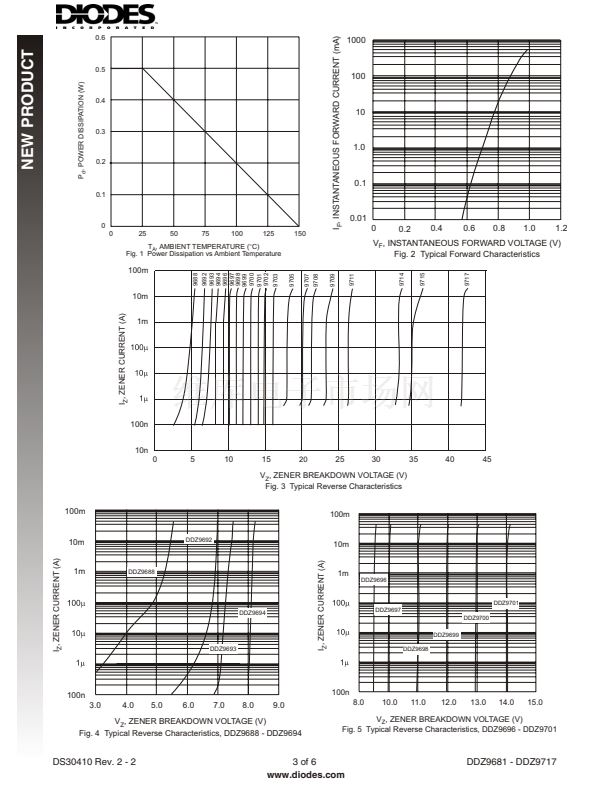

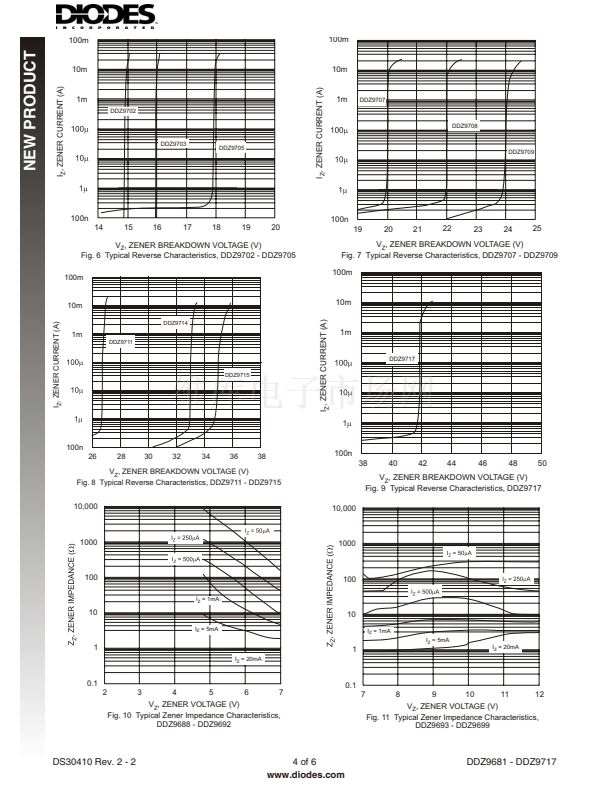

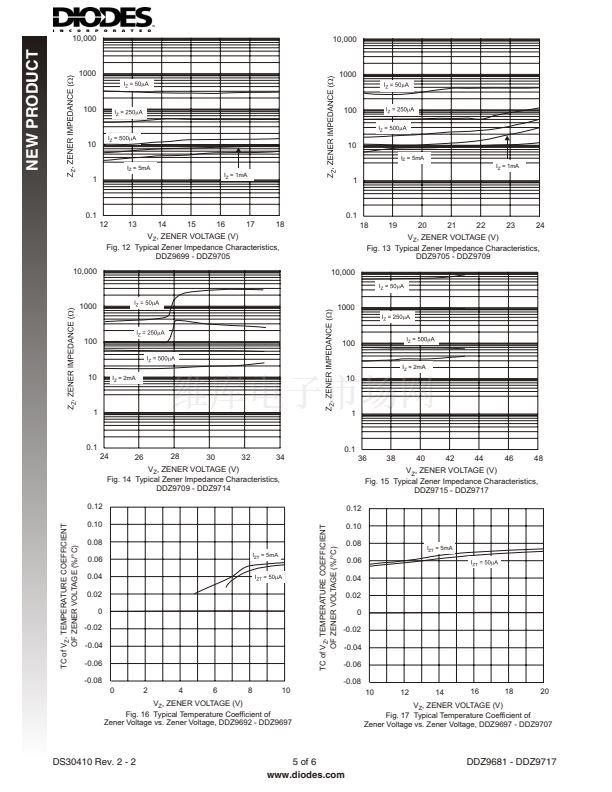

DDZ9681 - DDZ9717

SURFACE MOUNT PRECISION ZENER DIODE

NEW PRODUCT

Features

路

Very Sharp Breakdown Characteristics

500mW Power Dissipation on Ceramic PCB

Very Tight Tolerance on V

Ideally Suited for Automated Assembly

Processes

Very Low Leakage Current

Lead Free Product

SOD-123

Dim

Min

3.55

2.55

1.40

鈥?/div>

0.25

鈥?/div>

0擄

Max

3.85

2.85

1.70

1.35

鈥?/div>

0.10

8擄

Mechanical Data

Case: SOD-123, Plastic

Plastic Material: UL Flammability Classification

Rating 94V-0

Moisture sensitivity: Level 1 per J-STD-020A

Terminals: Finish - Matte Tin Solderable

per MIL-STD-202, Method 208 (Note 1)

Polarity: Cathode Band

Marking: See Below

Weight: 0.01 grams (approx.)

0.55 Typical

0.11 Typical

All Dimensions in mm

Maximum Ratings

Forward Voltage

Power Dissipation (Note 2)

@ T

= 25擄C unless otherwise specified

Symbol

@ I

= 10mA

qJA

STG

Value

0.9

500

305

-65 to +150

Unit

擄C/W

擄C

Characteristic

Thermal Resistance, Junction to Ambient Air (Note 2)

Operating and Storage Temperature Range

Note:

1. If lead-bearing terminal plating is required, please contact your Diodes Inc. sales representative for availability

and minimum order details.

2. Device mounted on ceramic PCB; 7.6mm x 9.4mm x 0.87mm with pad areas 25mm

Ordering Information

(Note 3)

Device

(Type Number)-7*

Packaging

SOD-123

Shipping

3000/Tape & Reel

* Example: The part number for the 6.2 Volt device would be DDZ9691-7.

Note :

3. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.

Marking Information

Date Code Key

Year

Code

Month

Code

2003

Jan

Feb

2004

March

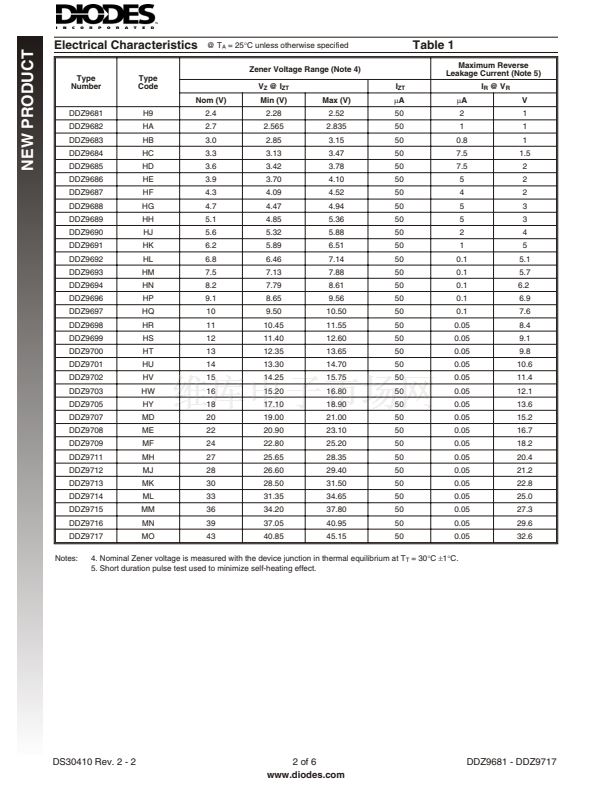

XX = Product Type Marking Code (See Table 1)

YM = Date Code Marking

Y = Year (ex: P = 2003)

M = Month (ex: 9 = September)

2005

Apr

2006

May

Jun

Jul

2007

Aug

2008

Sep

Oct

2009

Nov

Dec

DS30410 Rev. 2 - 2

1 of 6

www.diodes.com

DDZ9681 - DDZ9717

茫

Diodes Incorporated
