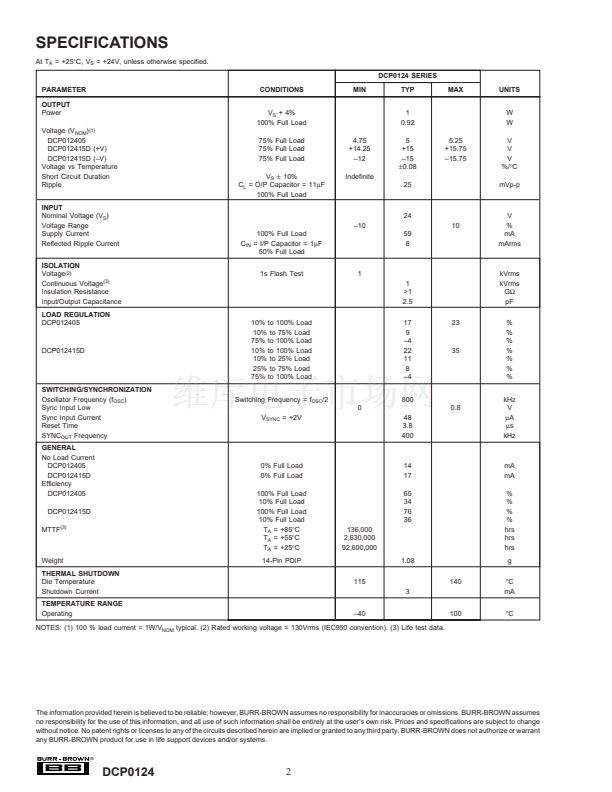

The DCP0124 family is a series of high efficiency,
24V input isolated DC/DC converters. In addition to
1W nominal galvanically isolated output power capa-
bility, the range of DC/DCs are also fully
synchronizable. The devices feature thermal shutdown,
and overload protection is implemented via watchdog
circuitry. Advanced power-on reset techniques give
superior reset performance and the devices will start
into any capacitive load up to full power output.
The DCP01 family is implemented in standard-molded
IC packaging, giving outlines suitable for high volume
assembly.
APPLICATIONS
q
POINT OF USE POWER CONVERSION
q
GROUND LOOP ELIMINATION
q
DATA ACQUISITION
q
INDUSTRIAL CONTROL AND
INSTRUMENTATION
q
TEST EQUIPMENT
800kHz
Oscillator
梅2
Reset
V
OUT
Power
Stage
0V
SYNC
OUT
SYNC
IN
Watch-dog/
start-up
PSU
Thermal
Shutdown
V
S
Power Controller IC
I
BIAS
0V
