Surface Mount Zener Diode

COMCHIP

www.comchip.com.tw

CZRV5221B - CZRV5259B

Voltage:

2.4

-

39

Volts

Power: 200mWatts

FEATURES

Planar Die construction

200mW Power Dissipation

Zener Voltages from 2.4V - 39V

Ideally Suited for Automated Assembly Processes

.009(0.25)

SOD-323

.107

(2.70)

.090 (2.30)

.054(1.35)

.038(.95)

.054(1.15)

.014(.35)

.078 (1.95)

.068 (1.75)

MECHANICAL DATA

.

006(0.15) Max.

.027(0.70)

Case: SOD-323, Plastic

Terminals: Solderable per MIL-STD-202, Method 208

Approx. Weight: 0.008 gram

.012 (.30)Min.

Dimensions in inches and (millimeters)

Maximum Ratings and Electrical Characterics

Parameter

Power Dissipation (Note 1) @ 75 擄C

Peak forward Surge Current 8.3ms single half sine-wave superimposed on

rated load (JEDEC Method) (Note 2)

Operating Junction and Storage Temperature Range

NOTES:

1. Mounted on 5.0mm2 (.013mm thick) land areas.

2. Measured on 8.3ms, single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.

Symbol

P

D

I

FSM

T

J

Value

200

2.0

-55 to +150

MDS0209001A

Page

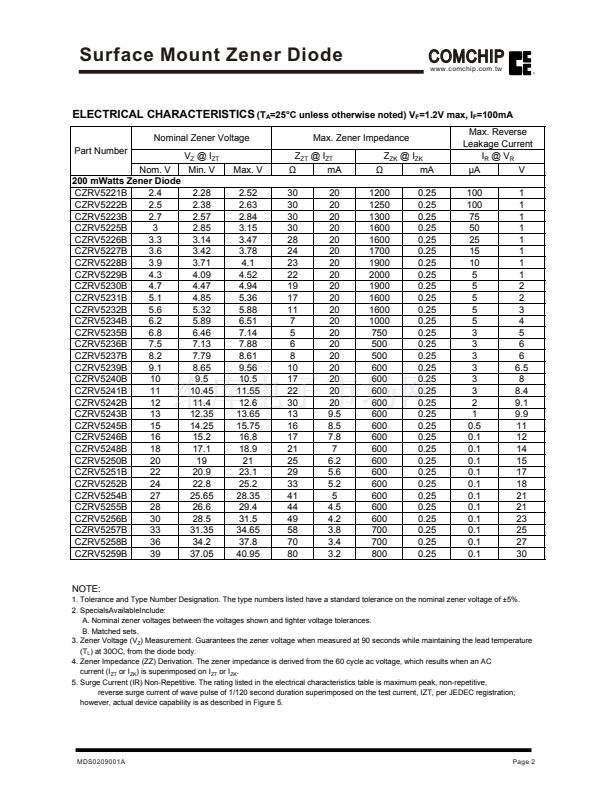

1
