PRELIMINARY
CY24119
MediaClock鈩?27-MHz VCXO Clock Generator
Features
鈥?Low-jitter, high-accuracy output
鈥?VCXO with analog adjust
鈥?3.3V operation
Part Number
CY24119
CY24119-1
Outputs
1
1
Benefits
鈥?Meets critical timing requirements in complex system de-
signs
鈥?Large 鹵 150 ppm range, better linearity
Input Frequency Range
27-MHz pullable crystal per Cypress specification
27-MHz pullable crystal per Cypress specification
Output Frequencies
One copy of 27-MHz (3.3V) positive
slope VCXO curve
One copy of 27-MHz (3.3V) negative
slope VCXO curve
Logic Block Diagram
27 XIN
XOUT
OSC
27 MHz
Pin Configuration
CY24119,-1

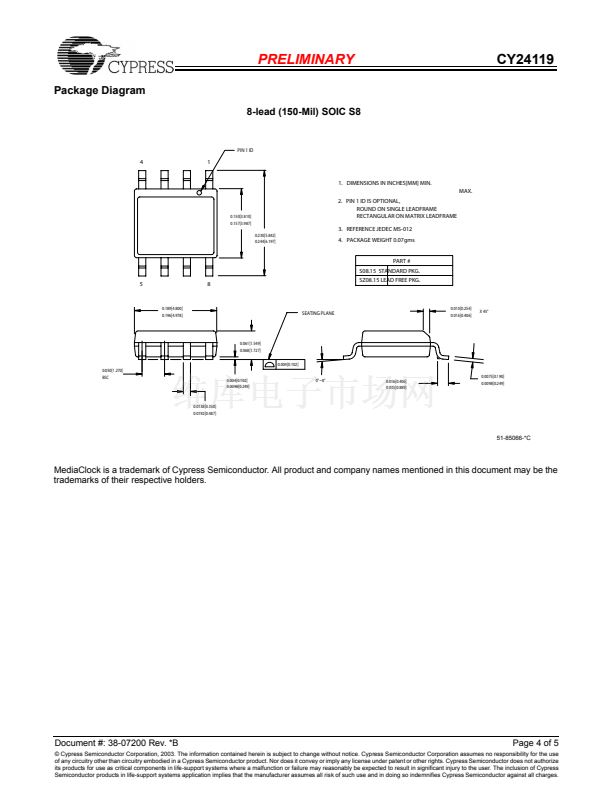

8-pin SOIC
XIN
AVDD
VCXO
AVSS
1
2
3
4
8
7
6
5
XOUT
VSS
27 MHz
VDD
VCXO
AVDD VDD
AVSS
VSS
Cypress Semiconductor Corporation
Document #: 38-07200 Rev. *B
鈥?/div>
3901 North First Street
鈥?/div>
San Jose
,
CA 95134
鈥?/div>
408-943-2600
Revised October 8, 2003
