CXT3150
SURFACE MOUNT
NPN POWER TRANSISTOR
Central
DESCRIPTION:
TM
Semiconductor Corp.
The CENTRAL SEMICONDUCTOR CXT3150
type is a NPN Silicon Power Transistor manu-
factured by the epitaxial planar process, epoxy
molded in a surface mount package, designed
for high current, high gain, fast switching appli-
cations.

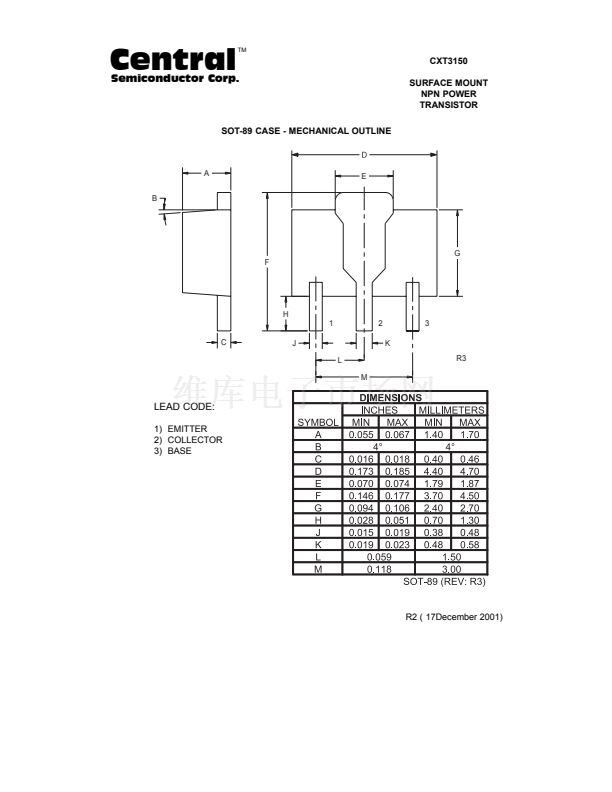

SOT-89 CASE
MAXIMUM RATINGS:
(TA=25擄C)
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Base Current
Power Dissipation
Operating and Storage
Junction Temperature
Thermal Resistance
SYMBOL
VCBO
VCEO
VEBO
IC
IB
PD
TJ,Tstg
螛
JA
50
25
7.0
5.0
1.0
1.2
-65 to +150
104
UNITS
V
V
V
A
A
W
擄C
擄C/W
ELECTRICAL CHARACTERISTICS:
(TA=25擄C unless otherwise noted)
SYMBOL
ICBO
IEBO
BVCEO
VCE(SAT)
VCE(SAT)
VBE(SAT)
VBE(SAT)
hFE
hFE
hFE
fT
Cob
TEST CONDITIONS
VCB=50V
VEB=7.0V
IC=10mA
IC=3.0A, IB=150mA
IC=4.0A, IB=200mA
IC=3.0A, IB=150mA
IC=4.0A, IB=200mA
VCE=2.0V, IC=500mA
VCE=2.0V, IC=2.0A
VCE=2.0V, IC=5.0A
VCE=6.0V, IC=50mA, f=200MHz
VCB=10V, IE=0, f=1.0MHz
MIN
TYP
MAX
1.0
1.0
0.35
0.50
1.10
1.40
550
UNITS
碌A(chǔ)
碌A(chǔ)
V
V
V
V
V
25
250
150
50
150
50
MHz
pF
R2 ( 17December 2001)
