CXP86609 Datasheet

  • CXP86609

  • CMOS 8-bit Single Chip Microcomputer

  • 20頁

  • SONY   SONY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

CXP86609/86613/86617
CMOS 8-bit Single Chip Microcomputer
Description

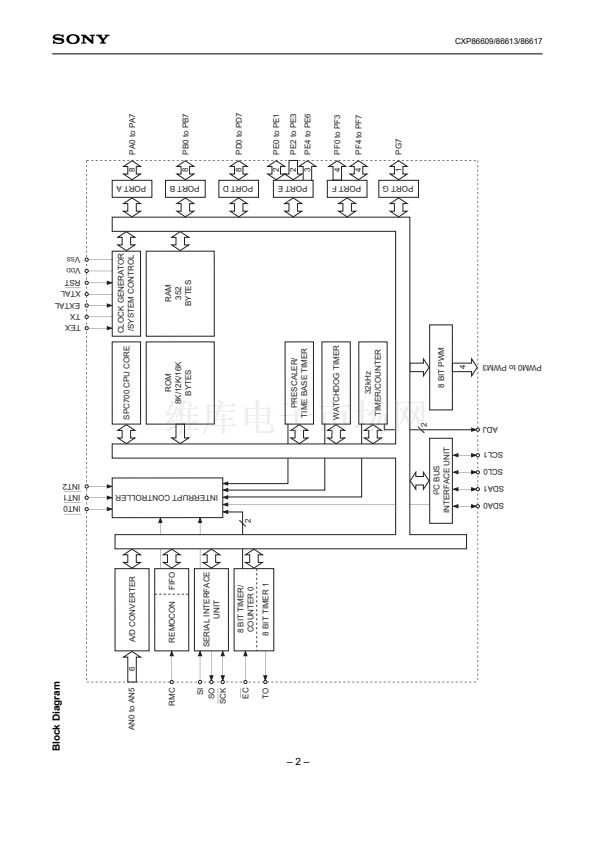

The CXP86609/86613/86617 are the CMOS 8-bit
single chip microcomputer integrating on a single
chip an A/D converter, serial interface, timer/counter,
time-base timer, I
2
C bus interface, PWM output,
remote control reception circuit, watchdog timer,
32kHz timer/counter besides the basic configurations
of 8-bit CPU, ROM, RAM, I/O ports.
The CXP86609/86613/86617 also provide a sleep
function that enables to lower the power consumption.
Features
Structure
Silicon gate CMOS IC

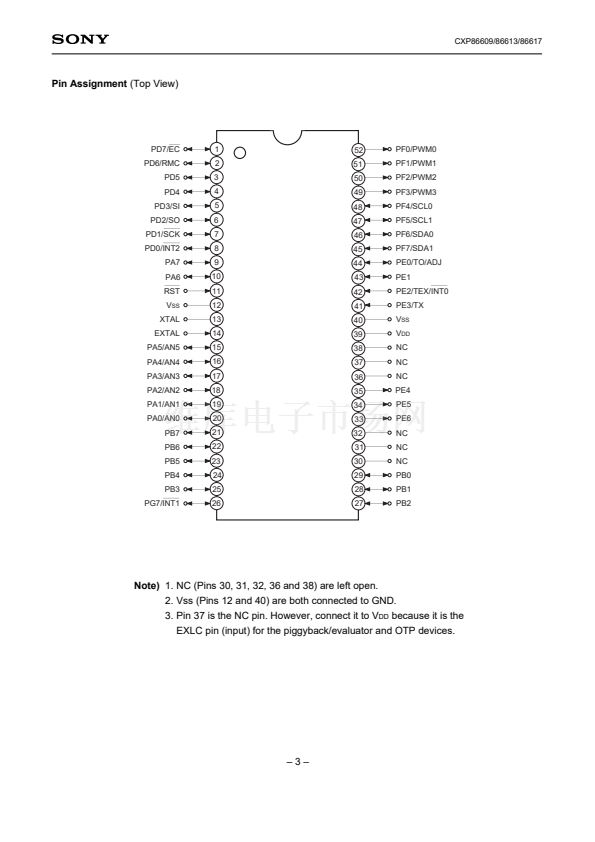

52 pin SDIP (Plastic)
鈥?/div>
A wide instruction set (213 instructions) which covers various types of data
鈥?16-bit operation/multiplication and division/Boolean bit operation instructions
鈥?/div>
Minimum instruction cycle
250ns at 16MHz operation
122碌s at 32kHz operation
鈥?/div>
Incorporated ROM
8K bytes (CXP86609)
12K bytes (CXP86613)
16K bytes (CXP86617)
352 bytes
8 bits, 6 channels, successive approximation method
(Conversion time of 3.25碌s at 16MHz)
8-bit clock sync type, 1 channel
8-bit timer
8-bit timer/counter
19-bit time-base timer
32kHz timer/counter
鈥?I
2
C bus interface
鈥?PWM output
鈥?Remote control reception circuit
鈥?Watchdog timer
鈥?/div>
Interruption
鈥?/div>
Standby mode
鈥?/div>
Package
鈥?/div>
Piggyback/evaluator
8 bits, 4 channels
8-bit pulse measurement counter, 6-stage FIFO
11 factors, 11 vectors, multi-interruption possible
Sleep
52-pin plastic SDIP
CXP86490 64-pin ceramic PSDIP
鈥?/div>
Incorporated RAM
鈥?/div>
Peripheral functions
鈥?A/D converter
鈥?Serial interface
鈥?Timer
Perchase of Sony's I
2
C components conveys a licence under the Philips I
2
C Patent Rights to use these components
in an I
2
C system, provided that the system conforms to the I
2
C Standard Specifications as defined by Philips.
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>

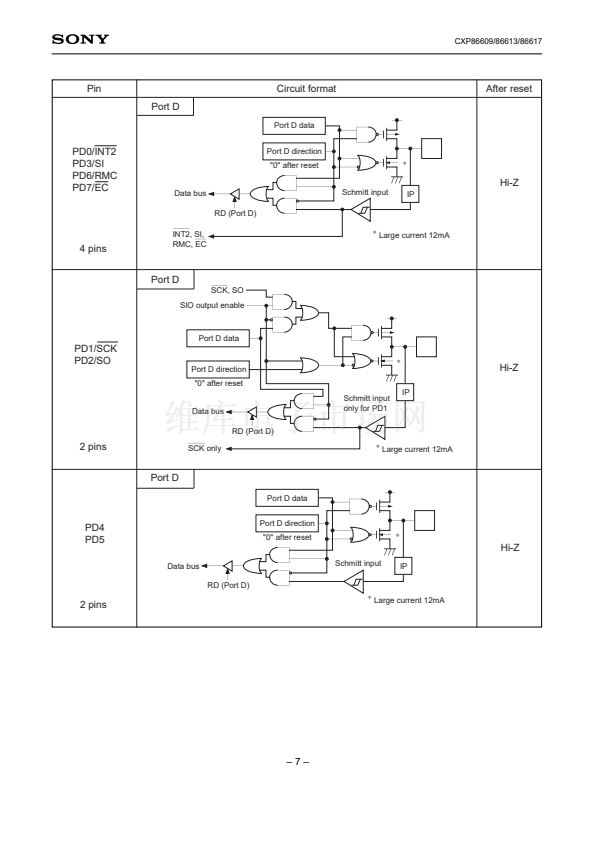

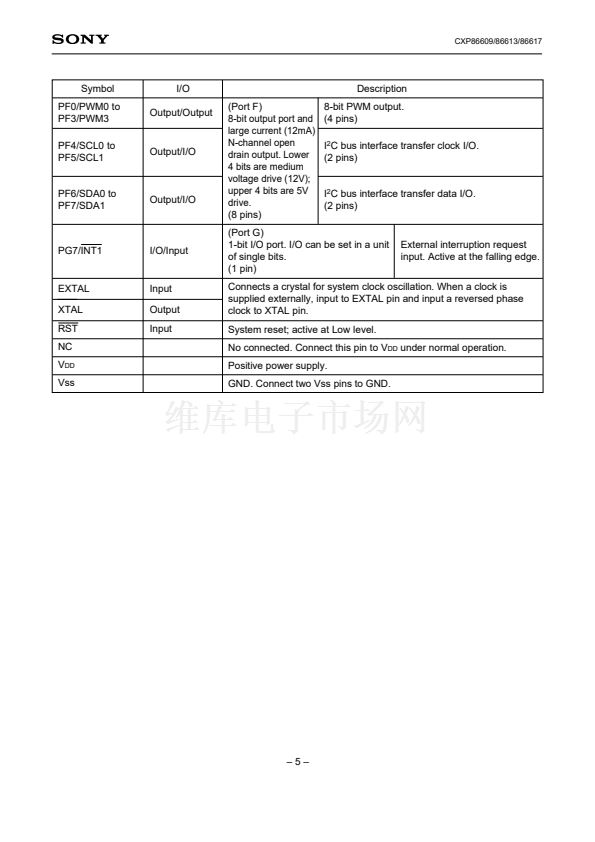

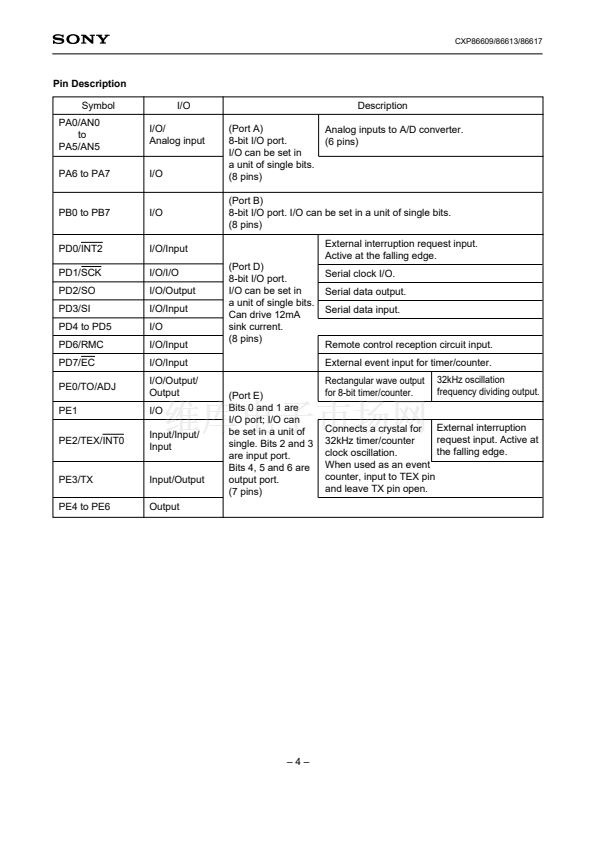

E97751-PS
