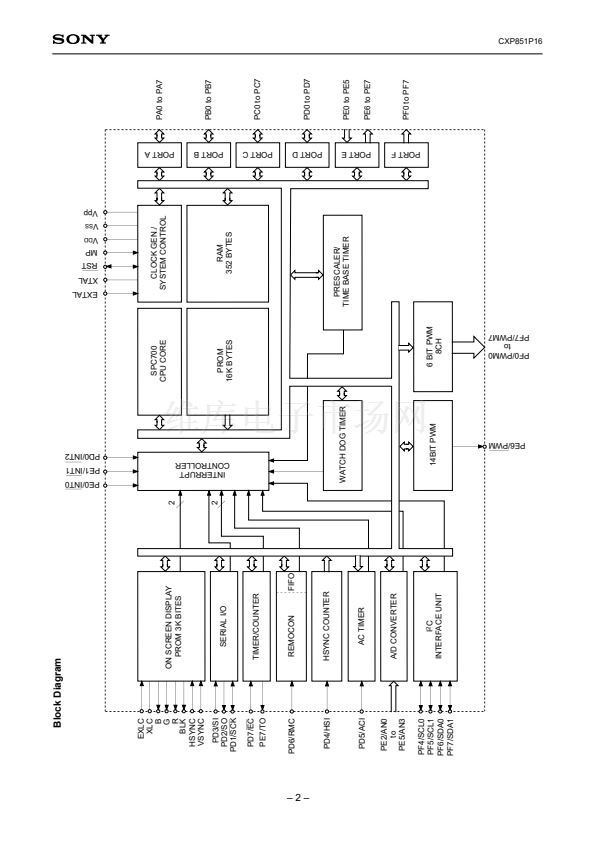

CXP851P16
CMOS 8-bit Single Chip Microcomputer
Description
The CXP851P16 are highly integrated micro-
computers composed of a 8-bit CPU, PROM, RAM,
and I/O ports. These chips feature many other high-
performance circuits in a single-chip CMOS design,
including an A/D converter, serial interface,
timer/counter, time-base timer, vector interrupt, on-
screen display function, I
2
C bus interface, PWM
generator, remote control receiver, HSYNC counter,
power supply frequency counter, and watchdog
timer.
Also this IC provides power-on reset and sleep
functions. The designers have ensured low power
consumption for these powerful microcomputers.
The CXP851P16 is the on-chip PROM version of
the CXP85116 with on-chip mask ROM, providing
the function of being able to write directly into the
program. Furthermore, because of the OSD
character ROM can also be written directly into, it is
suitable for evaluation use during system
development and for small quantity production.
64 pin SDIP (Plastic)
64 pin QFP (Plastic)
Structure
Silicon gate CMOS IC
Features
鈥?/div>
A wide instruction set (213 instructions) which cover various types of data.
鈥?16-bit arithmetic instruction/multiplication and division instructions/boolean bit operation instruction
鈥?/div>
Minimum instruction cycle
During operation 1碌s/4MHz
鈥?/div>
Incorporated PROM capacity
16K bytes (For program)
3K bytes (For OSD)
鈥?/div>
Incorporated RAM capacity
352 bytes
鈥?/div>
Peripheral functions
鈥?On-screen display function
12
脳
16 dots, 128 types
4 lines of 21 characters (5 or more lines possible)
double scanning mode supported includes jitter elimination circuit
鈥?I
2
C bus interface
鈥?PWM output
14-bits, 1 channel
6-bits, 8 channels
鈥?Remote control receiving circuit 8-bit pulse measuring counter, 6-stage FIFO
鈥?A/D converter
4-bit, 4-channel, successive approximation method
(conversion time of 40碌s/4MHz)
鈥?HSYNC counter
鈥?Power supply frequency counter
鈥?Watchdog timer
鈥?8-bit synchronized serial I/O
鈥?8-bit timer, 8-bit timer/counter, 19-bit time-base timer
鈥?/div>
Interruption
14 factors, 14 vectors, multiple interrupt possible
鈥?/div>
Standby mode
SLEEP/STOP
鈥?/div>
Package
64-pin plastic SDIP/QFP
Perchase of Sony's I
2
C components conveys a licence under the Philips I
2
C Patent Rights to use these components
in an I
2
C system, provided that the system conforms to the I
2
C Standard Specifications as defined by Philips.
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E94332A18-PS
