CXP84300 Datasheet

  • CXP84300

  • CMOS 8-bit Single Chip Microcomputer

  • 5頁

  • SONY   SONY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

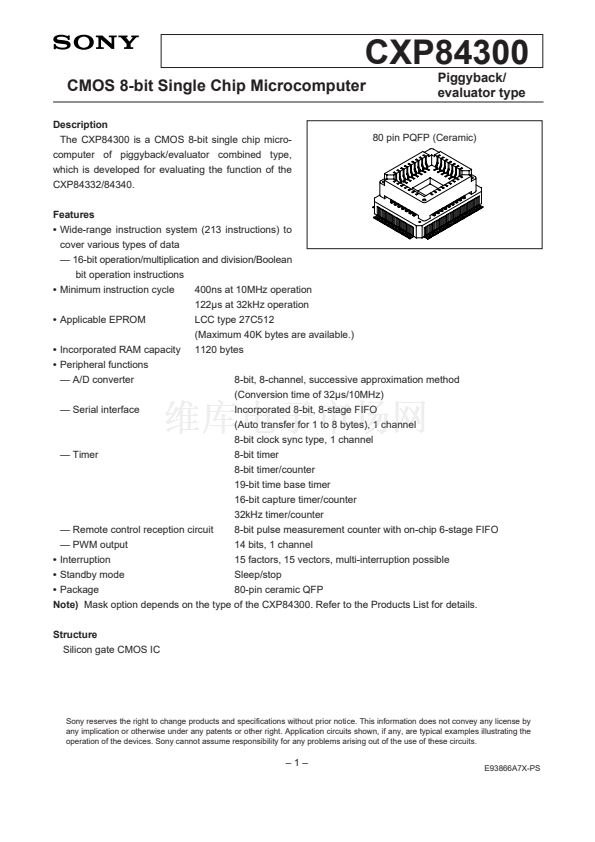

CXP84300
CMOS 8-bit Single Chip Microcomputer
Description
The CXP84300 is a CMOS 8-bit single chip micro-
computer of piggyback/evaluator combined type,
which is developed for evaluating the function of the
CXP84332/84340.
Features
鈥?/div>
Wide-range instruction system (213 instructions) to
cover various types of data
鈥?16-bit operation/multiplication and division/Boolean
bit operation instructions
鈥?/div>
Minimum instruction cycle
鈥?/div>
Applicable EPROM
鈥?/div>
Incorporated RAM capacity
鈥?/div>
Peripheral functions
鈥?A/D converter
鈥?Serial interface
400ns at 10MHz operation
122碌s at 32kHz operation
LCC type 27C512
(Maximum 40K bytes are available.)
1120 bytes
8-bit, 8-channel, successive approximation method
(Conversion time of 32碌s/10MHz)
Incorporated 8-bit, 8-stage FIFO
(Auto transfer for 1 to 8 bytes), 1 channel
8-bit clock sync type, 1 channel
8-bit timer
8-bit timer/counter
19-bit time base timer
16-bit capture timer/counter
32kHz timer/counter
8-bit pulse measurement counter with on-chip 6-stage FIFO
14 bits, 1 channel
15 factors, 15 vectors, multi-interruption possible
Sleep/stop
80-pin ceramic QFP
80 pin PQFP (Ceramic)
Piggyback/
evaluator type
鈥?Timer
鈥?Remote control reception circuit
鈥?PWM output
鈥?/div>
Interruption
鈥?/div>
Standby mode
鈥?/div>
Package
Note)
Mask option depends on the type of the CXP84300. Refer to the Products List for details.
Structure
Silicon gate CMOS IC
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E93866A7X-PS
