CXP824P40A
CMOS 8-bit Single Chip Microcomputer
Description
The CXP824P40A is a CMOS 8-bit single chip
microcomputer integrating on a single chip an A/D
converter, serial interface, timer/counter, time base
timer, capture timer counter, fluorescent display tube,
controller/driver, remote control reception circuit, CTL
duty detection circuit, 14-bit PWM output and high-
speed output circuit besides the basic configurations
of 8-bit CPU, PROM, RAM, and I/O port.
The CXP824P40A also provides sleep/stop function
that enables lower power consumption.
CXP824P40A is the PROM-incorporated version of
the CXP82440A with built-in mask ROM. This
provides the additional feature of being able to write
directly into the program. Thus, it is most suitable for
evaluation use during system development and for
small-quantity production.
100 pin QFP (Plastic)
Structure
Silicon gate CMOS IC
Features
鈥?/div>
Wide-range instruction system (213 instructions) to cover various types of data
鈥?16-bit arithmetic/multiplication and division/boolean bit operation instructions
鈥?/div>
Minimum instruction cycle
400ns at 10MHz operation
122碌s at 32kHz operation
鈥?/div>
Incorporated PROM capacity
40K bytes
鈥?/div>
Incorporated RAM capacity
1120 bytes (including fluorescent display area)
鈥?/div>

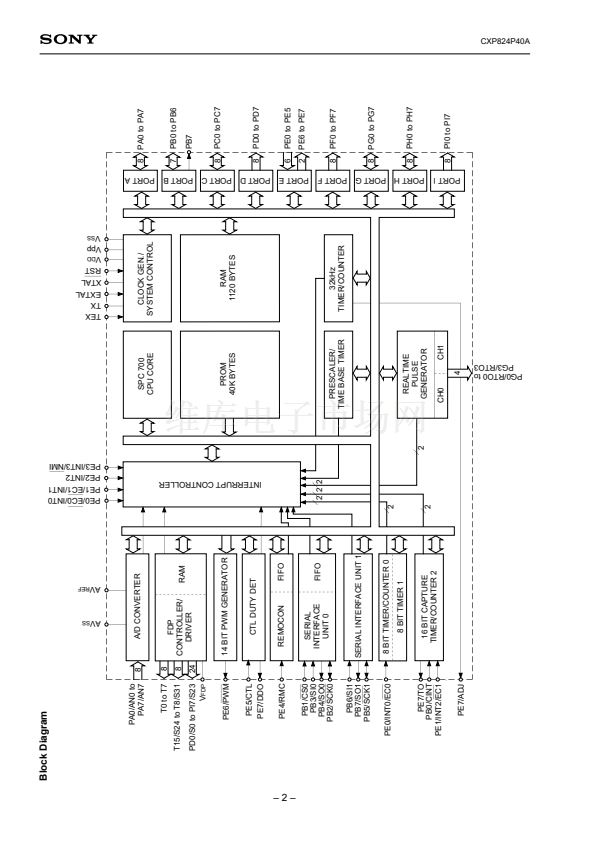

Peripheral functions
鈥?A/D converter
8-bit, 8-channel, successive approximation method
(Conversion time of 32碌s/10MHz)
鈥?Serial interface
Incorporated 8-bit, 8-stage FIFO
(Auto transfer for 1 to 8 bytes), 1 channel
8-bit clock sync type, 1 channel
鈥?Timers
8-bit timer, 8-bit timer/counter, 19-bit time base timer
16-bit capture timer/counter, 32kHz timer/counter
鈥?Fluorescent display tube controller/driver
Maximum of 384 segments display possible
1 to 16-digit dynamic display
Dimmer function
High voltage drive output (40V)
On-chip pull-down resistor (Mask option)
Hardware key scan function
(Maximum of 16
脳
8 key matrix compatible)
鈥?Remote control receiving circuit
Incorporated noise elimination circuit
8-bit measurement counter with on-chip 6-stage FIFO
鈥?PWM output
14 bits, 1 channel
鈥?CTL duty detection circuit
鈥?High-speed output circuit
RTG 4 pins
鈥?/div>
Interruption
19 factors, 15 vectors, multi-interruption possible
鈥?/div>
Standby mode
SLEEP/STOP
鈥?/div>
Package
100-pin plastic QFP
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E94Z17-PP
