CXP82220/82224
CMOS 8-bit Single Chip Microcomputer
Description

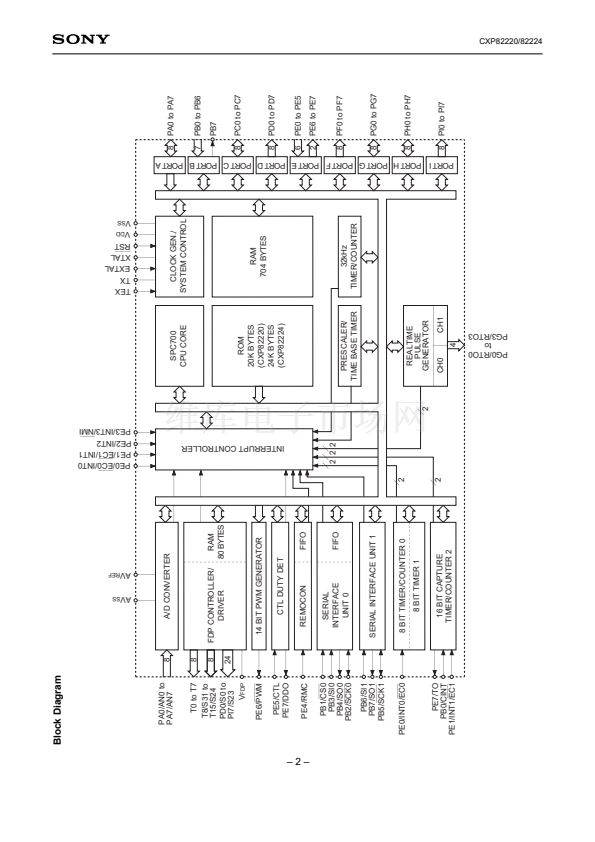

The CXP82220/82224 is a CMOS 8-bit single chip
microcomputer integrating on a single chip an A/D
converter, serial interface, timer/counter, time base
timer, capture timer/counter, fluorescent display tube
controller/driver, remote control reception circuit, CTL
duty detection circuit, 14-bit PWM output, high-speed
output circuit and other servo systems besides the
basic configurations of 8-bit CPU, PROM, RAM, and
I/O port.
The CXP82220/82224 also provides power-on reset
function and sleep/stop function that enables lower
power consumption.
100 pin QFP (Plastic)
Structure
Silicon gate CMOS IC
Features
鈥?/div>
Wide-range instruction system (213 instructions) to cover various types of data
鈥?16-bit arithmetic/multiplication and division/Boolean bit operation instructions
鈥?/div>
Minimum instruction cycle
400ns at 10MHz operation
122碌s at 32kHz operation
鈥?/div>
Incorporated ROM capacity
20K bytes (CXP82220)
24K bytes (CXP82224)
鈥?/div>
Incorporated RAM capacity
704 bytes (including fluorescent display area)
鈥?/div>
Peripheral functions
鈥?A/D converter
8 bits, 8 channels, successive approximation method
(Conversion time of 32碌s/10MHz)
鈥?Serial interface
SIO with 8-bit, 8-stage FIFO incorporated for data use
(Auto transfer for 1 to 8 bytes), 1 channel
8-bit standard SIO, 1 channel
鈥?Timer
8-bit timer, 8-bit timer/counter, 19-bit time base timer
16-bit capture timer/counter, 32kHz timer/counter
鈥?Fluorescent display tube controller/driver Maximum of 384 segment display possible
1 to 16-digit dynamic display
Dimmer function
High voltage drive output (40V)
Incorporated pull-down resistor (Mask option)
Hardware key scan function
Maximum of 16
脳
8 key matrix compatible
鈥?Remote control reception circuit
Incorporated noise elimination circuit
Incorporated 8-bit, 6-stage FIFO for measurement data
鈥?PWM output circuit
14 bits, 1 channel
鈥?CTL duty detection circuit
鈥?High-speed output circuit
Precision of 800ns at 10MHz, 4 outputs
鈥?/div>
Interruption
19 factors, 15 vectors, multi-interruption possible
鈥?/div>
Standby mode
Sleep/stop
鈥?/div>
Package
100-pin plastic QFP
鈥?/div>
Piggyback/evaluation chip
CXP82200 100-pin ceramic QFP
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E92235A81-PS
