SONY
餂?/div>
危
RAM
Description
CXK79M36C163GB / CXK79M18C163GB
33/4/5
Preliminary
18Mb 1x2Lp LVCMOS High Speed Synchronous SRAMs (512Kb x 36 or 1Mb x 18)
The CXK79M36C163GB (organized as 524,288 words by 36 bits) and the CXK79M18C163GB (organized as 1,048,576 words
by 18 bits) are high speed CMOS synchronous static RAMs with common I/O pins. They are manufactured in compliance with
the JEDEC-standard 209 pin BGA package pinouts defined for SigmaRAMs. They integrate input registers, high speed RAM,
output registers, and a two-deep write buffer onto a single monolithic IC. Double Data Rate (DDR) Pipelined (PL) read opera-
tions and Late Write (LW) write operations are supported, providing a high-performance user interface. Positive and negative
output clocks are provided for applications requiring source-synchronous operation.

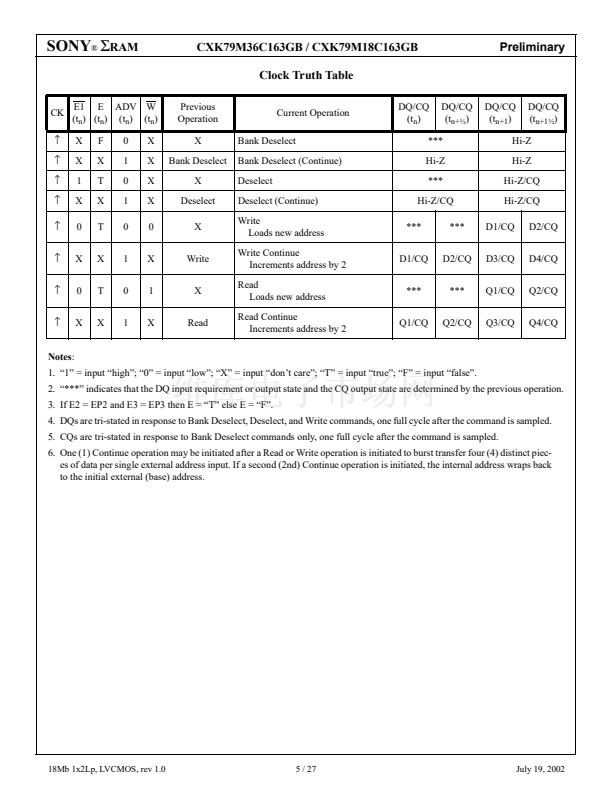

All address and control input signals are registered on the rising edge of the CK input clock.
During read operations, output data is driven valid twice, from both the rising and falling edges of CK, beginning one full cycle
after the address and control signals are registered.
During write operations, input data is registered twice, on both the rising and falling edges of CK, beginning one full cycle after
the address and control signals are registered.
Because two pieces of data are always transferred during read and write operations, the least significant address bit of the in-
ternal memory array is not available as an external address pin to these devices. Consequently, the number of external address
pins available to each device is one less than the specified depth of the device (i.e. the 512Kb x 36 device has 18, not 19, external
address pins, and the 1Mb x 18 device has 19, not 20, external address pins). And, the user cannot choose the order in which
the two pieces of data are read. Read data is always provided in the same order in which it is written.
Output drivers are series-terminated, and output impedance is selectable via the ZQ control pin. When ZQ is tied 鈥渓ow鈥? the
impedance of the SRAM鈥檚 output drivers is set to ~25鈩? When ZQ is tied 鈥渉igh鈥?or left unconnected, the impedance of the
SRAM鈥檚 output drivers is set to ~50鈩?
300 MHz operation (600 Mbps) is obtained from a single 1.8V power supply. JTAG boundary scan interface is provided using
a subset of IEEE standard 1149.1 protocol.
Features
鈥?/div>
3 Speed Bins
-33
-4
-5
Cycle Time / Data Access Time
3.3ns / 1.8ns
4.0ns / 2.1ns
5.0ns / 2.3ns
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>

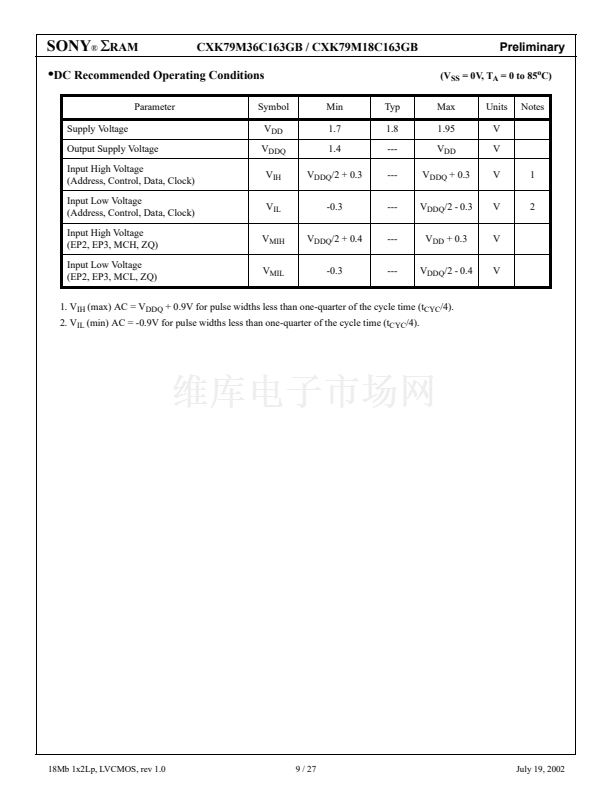

Single 1.8V power supply (V
DD
): 1.7V (min) to 1.95V (max)
Dedicated output supply voltage (V
DDQ
): 1.4V (min) to V
DD
(max)
LVCMOS-compatible I/O interface
Common I/O
Double Data Rate (DDR) data transfers
Pipelined (PL) read operations
Late Write (LW) write operations
Burst capability with internally controlled Linear Burst address sequencing
Burst length of two or four, with automatic address wrap
Full read/write data coherency
Single-ended input clock (CK)
Data-referenced output clocks (CQ1, CQ1, CQ2, CQ2)
Selectable output driver impedance via dedicated control pin (ZQ)
Depth expansion capability (2 or 4 banks) via programmable chip enables (E2, E3, EP2, EP3)
JTAG boundary scan (subset of IEEE standard 1149.1)
209 pin (11x19), 1mm pitch, 14mm x 22mm Ball Grid Array (BGA) package
18Mb 1x2Lp, LVCMOS, rev 1.0
1 / 27
July 19, 2002
