CXD3526GG Datasheet

  • CXD3526GG

  • Digital Signal Driver/Timing Generator

  • 88頁

  • SONY   SONY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

CXD3526GG
Digital Signal Driver/Timing Generator
Description
The CXD3526GG incorporates digital signal
processor type RGB driver, color shading correction and
timing generator functions onto a single IC. Operation is
possible with a system clock up to 85 [MHz] (max.). This
IC can process video signals in bands up to XGA
standard, and can output the timing signals for driving
various Sony LCD panels such as XGA and SVGA.
Features
鈥?/div>
Various picture quality adjustment functions such
as user adjustment, white balance adjustment and
gamma correction
鈥?/div>
OSD MIX, black frame processing, mute and
limiter functions
鈥?/div>
LCD panel color shading correction function
鈥?/div>
Drives various Sony data projector LCD panels
such as XGA and SVGA
鈥?/div>
Controls the CXA3562AR and CXA7000R sample-
and-hold drivers
鈥?/div>
Line inversion and field inversion signal generation
鈥?/div>
Supports AC drive of LCD panels during no signal
鈥?/div>
On-chip serial interface
鈥?/div>
The data of gamma correction and color shading
correction can be downloaded automatically from
the external EEPROM.
Applications
LCD projectors and other video equipment
Structure
Silicon gate CMOS IC

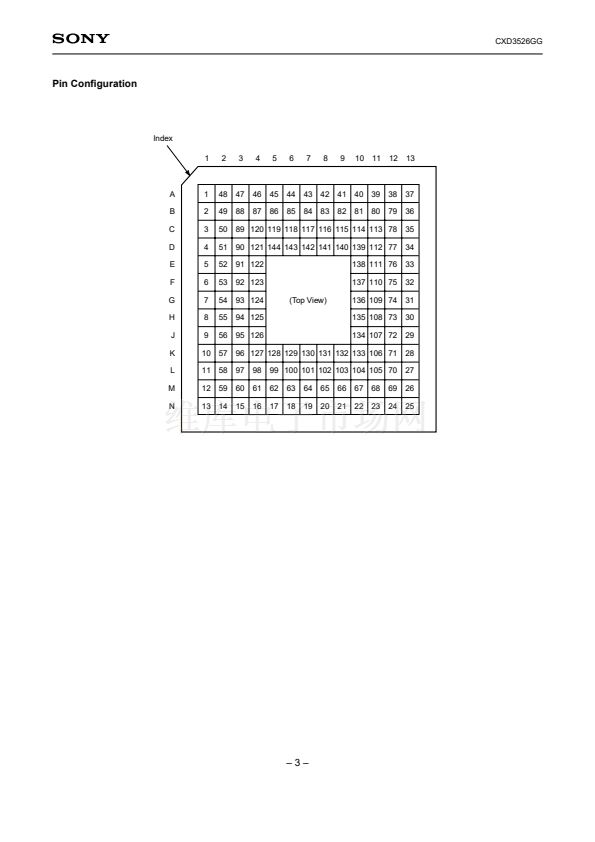

144 pin BGA (Plastic)
Absolute Maximum Ratings
(V
SS
= 0V)
鈥?/div>
Supply voltage
V
DD1
V
SS
鈥?0.5 to +3.0
V
DD2
鈥?/div>
Input voltage
鈥?/div>
Output voltage
V
I
V
O
V
SS
鈥?0.5 to +4.0
V
V
V
SS
鈥?0.5 to V
DD2
+ 0.5 V
V
SS
鈥?0.5 to V
DD2
+ 0.5 V
鈥?5 to +125
125
擄C
擄C
鈥?/div>
Storage temperature
Tstg
鈥?/div>
Junction temperature
Tj
Recommended Operating Conditions
2.3 to 2.7
鈥?/div>
Supply voltage
V
DD1
V
DD2
3.0 to 3.6
鈥?/div>
Operating temperature
Topr
鈥?0 to +75
V
V
擄C
Note)
Company names and product names indicated on this data sheet are the trademark or registered trademark of each company.
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E01X09A26
