CXD2442Q Datasheet

  • CXD2442Q

  • Timing Generator for LCD Panels

  • 70頁

  • SONY   SONY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

CXD2442Q
Timing Generator for LCD Panels
For the availability of this product, please contact the sales office.
Description
The CXD2442Q is a timing signal generator for the
SVGA LCD panel LCX016 and VGA LCD panel
LCX012BL driver. This chip has a built-in serial
interface circuit which supports various SVGA and
VGA signals as well as double-speed NTSC and
PAL signals through external control from a
microcomputer, etc.
Features
鈥?/div>
Generates the LCX016/LCX012BL drive pulse.
鈥?/div>
Supports various SVGA and VGA signals.
(LCX016/LCX012BL)
LCX016
鈥?/div>
Aspect conversion performed at the panel side for
the 832
脳
624 (Macintosh17), 800
脳
600 (SVGA),
640
脳
480 (VGA/NTSC), 762
脳
572 (PAL),
640
脳
400 (PC-98), 832
脳
480 (WIDE) modes.
鈥?/div>
Line double-speed display realized with a built-in
double-speed controller. (NTSC/PAL) (Line memory
碌PD485505: NEC)
LCX012BL
鈥?/div>
640
脳
480 (VGA/NTSC/PAL)
鈥?/div>
Line double-speed display realized with a built-in
double-speed controller. (NTSC/PAL) (Line memory
碌PD485505: NEC)
鈥?/div>
Supports double-speed PAL pulse eliminate.
鈥?/div>
Supports SVGA pulse eliminate.
鈥?/div>

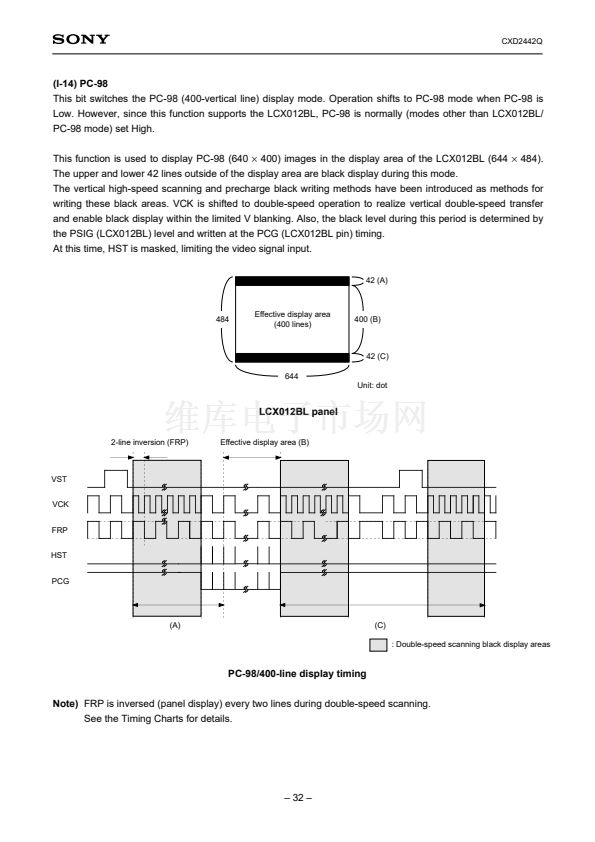

Supports PC-98 (640
脳
400) line display.
鈥?/div>
Generates timing signal of external sample-and-
hold circuit. (for RGB driver and high voltage drive
sample and hold)
鈥?/div>
Supports up/down and/or right/left inversion.
鈥?/div>
Supports 1H inversion.
鈥?/div>
AC drive of LCD panels during no signal
80 pin QFP (Plastic)
Applications
LCD projectors, etc.
Structure
Silicon CMOS IC
Absolute Maximum Ratings
(Ta = 25擄C, V
SS
= 0V)
鈥?/div>
Supply voltage
V
DD
V
SS
鈥?0.5 to +7.0
V
鈥?/div>
Input voltage
V
I
V
SS
鈥?0.5 to V
DD
+ 0.5 V
鈥?/div>
Output voltage
V
O
V
SS
鈥?0.5 to V
DD
+ 0.5 V
鈥?/div>
Operating temperature
Topr
鈥?0 to +75
擄C
鈥?/div>
Storage temperature
Tstg
鈥?5 to +150
擄C
Recommended Operating Conditions
鈥?/div>
Supply voltage
V
DD
4.5 to 5.5
鈥?/div>
Operating temperature
Topr
鈥?0 to +75
V
擄C
Note)
"Macintosh" is a registered trademark of Apple Computer Inc..
"PC-98" is a registered trademark of NEC.
"VGA" is a registered trademark of IBM.
Other company names and product names, etc. contained in these materials are trademarks or registered
trademarks of the respective companies.
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E96537-ST
