CXA2202N Datasheet

  • CXA2202N

  • EIAJ Sound Multiplexing Decoder

  • 2頁

  • SONY   SONY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

CXA2202N
EIAJ Sound Multiplexing Decoder
Description
The CXA2202N, is a bipolar IC designed as EIAJ
TV sound multiplexing decoder, provides various
functions
including
sound
multiplexing
demodulation, broadcast mode identification
(stereo/bilingual discrimination display), mode
display, and muting.
Features
鈥?/div>
Adjustment free of filter
鈥?/div>
High frequency stereo separation improved
鈥?/div>
An internal active filter greatly reduces the
external parts
鈥?/div>
Use of the countdown method for broadcast
mode identification eliminates the necessity of
adjusting the identification system (Cue oscillator)
鈥?/div>
Internal filter eliminates interference from digital
facsimile signals
鈥?/div>
The discrimination time needed to shift from
multiplexing sound to monaural sound is reduced.
鈥?/div>
Output level: 520mVrms (1kHz, monaural, 100%)
鈥?/div>
Forced monaural mode can be set to operate
only for stereo broadcasts or for stereo/bilingual
broadcasts.
Applications
鈥?/div>
Color TVs
鈥?/div>
Hi-Fi VCRs

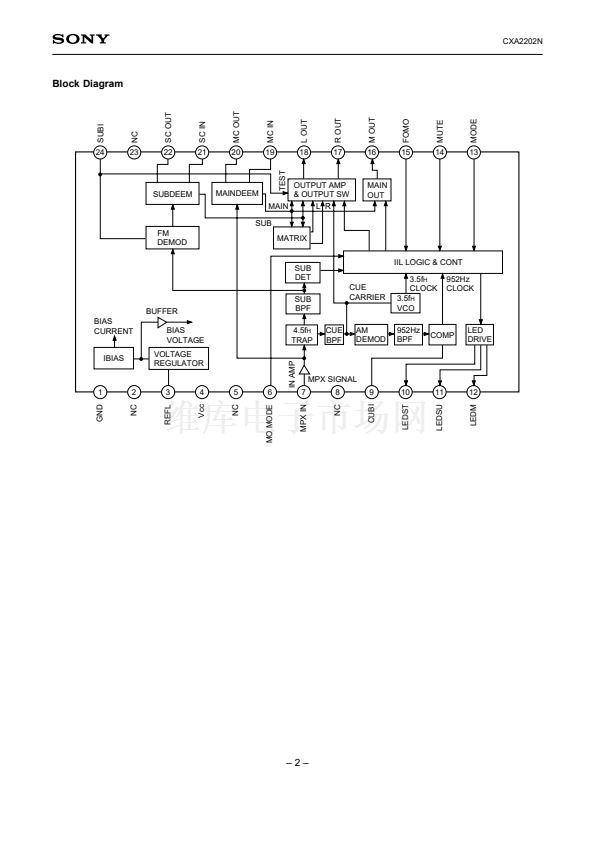

Pin Configuration
GND
NC
REFL
Vcc
NC
MO MODE
MPX IN
NC
CUBI
24 pin SSOP (Plastic)
Structure
Bipolar silicon monolithic IC
Absolute Maximum Ratings
(Ta = 25擄C)
鈥?/div>
Supply voltage
Vcc
10
V
鈥?/div>
Input signal (Pin 7)
Vis
0.6
Vp-p
鈥?/div>
Control voltage
(Pins 6, 13, 14, 15)
Vic
Vcc
V
鈥?/div>
Operating temperature
Topr
鈥?0 to +75 擄C
鈥?/div>
Storage temperature
Tstg 鈥?5 to +150 擄C
鈥?/div>
Allowable power dissipation
P
D
520
mW
鈥?/div>
LED drive current
I
LED
10
mA
Operating Supply Voltage Range
8.5 to 9.5
V
1
2
3
4
5
6
7
8
9
24 SUBI
23 NC
22 SC OUT
21 SC IN
20 MC OUT
19 MC IN
18 L OUT
17 R OUT
16 M OUT
15 FOMO
14 MUTE
13 MODE
LEDST 10
LEDSU 11
LEDM 12
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by any
implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E02964
