CXA2125Q Datasheet

  • CXA2125Q

  • Audio/Video Switch with Electronic Volume for 3 Scart

  • 399.41KB

  • 35頁

  • SONY   SONY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

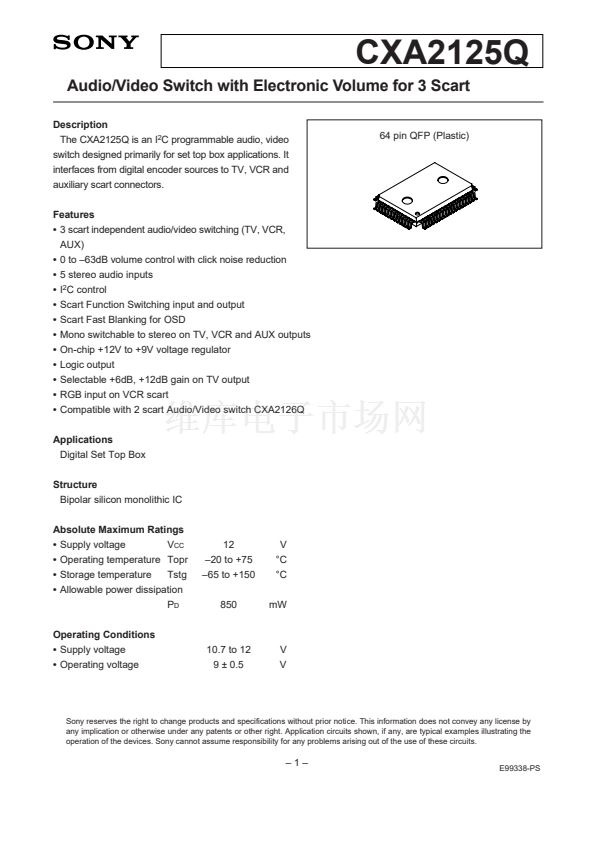

CXA2125Q
Audio/Video Switch with Electronic Volume for 3 Scart
Description
The CXA2125Q is an I
2
C programmable audio, video
switch designed primarily for set top box applications. It
interfaces from digital encoder sources to TV, VCR and
auxiliary scart connectors.
Features
鈥?/div>
3 scart independent audio/video switching (TV, VCR,
AUX)
鈥?/div>
0 to 鈥?3dB volume control with click noise reduction
鈥?/div>

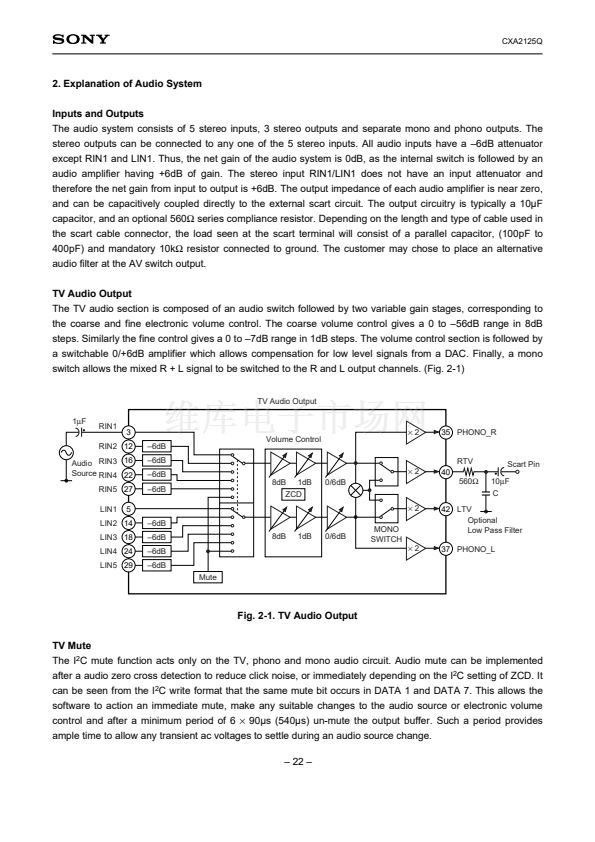

5 stereo audio inputs
鈥?/div>
I
2
C control
鈥?/div>
Scart Function Switching input and output
鈥?/div>

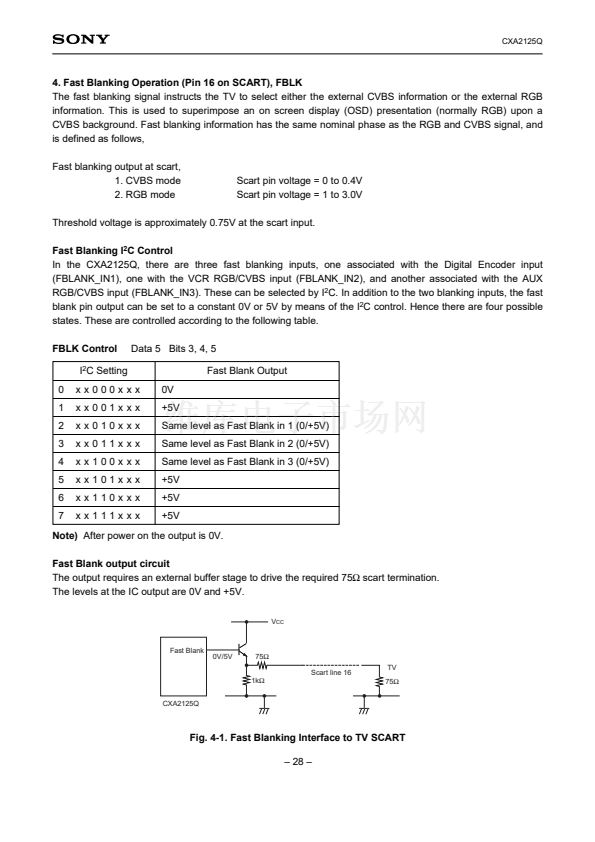

Scart Fast Blanking for OSD
鈥?/div>
Mono switchable to stereo on TV, VCR and AUX outputs
鈥?/div>
On-chip +12V to +9V voltage regulator
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>

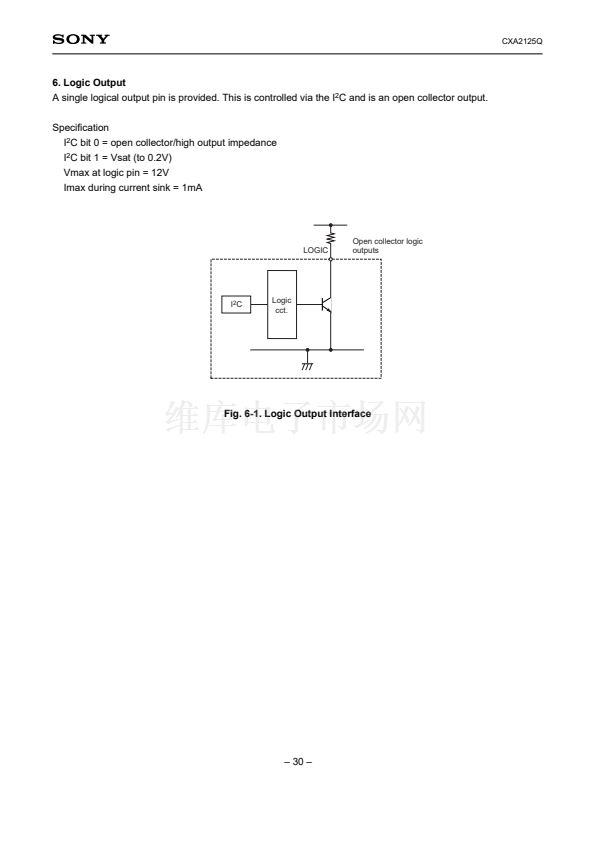

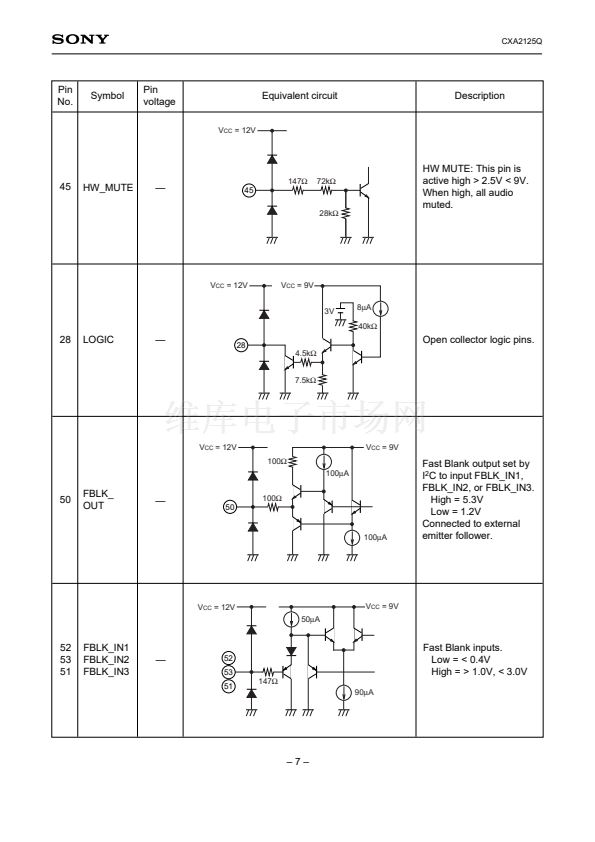

Logic output
Selectable +6dB, +12dB gain on TV output
RGB input on VCR scart
Compatible with 2 scart Audio/Video switch CXA2126Q

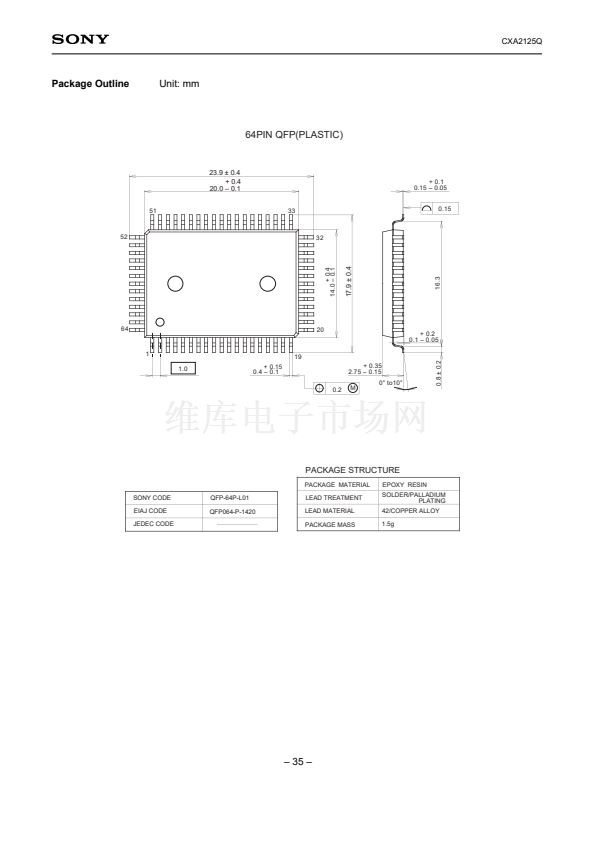

64 pin QFP (Plastic)
Applications
Digital Set Top Box
Structure
Bipolar silicon monolithic IC
Absolute Maximum Ratings
鈥?/div>
Supply voltage
V
CC
鈥?/div>
Operating temperature Topr
鈥?/div>
Storage temperature
Tstg
鈥?/div>
Allowable power dissipation
P
D
Operating Conditions
鈥?/div>
Supply voltage
鈥?/div>
Operating voltage
12
鈥?0 to +75
鈥?5 to +150
850
V
擄C
擄C
mW
10.7 to 12
9 鹵 0.5
V
V
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E99338-PS
