CXA2055P Datasheet

  • CXA2055P

  • Preamplifier for High Resolution Computer Display

  • 296.76KB

  • 20頁

  • SONY   SONY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

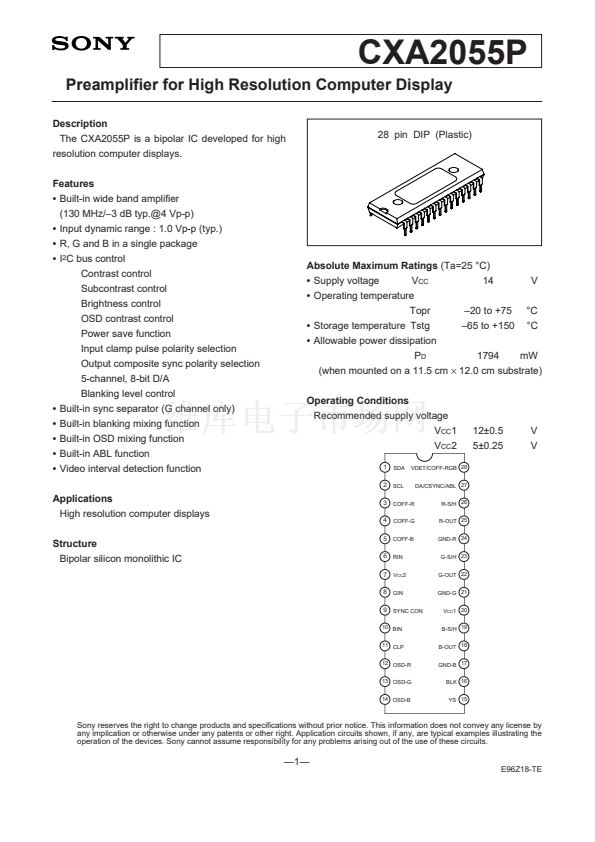

CXA2055P
Preamplifier for High Resolution Computer Display
Description
The CXA2055P is a bipolar IC developed for high
resolution computer displays.
Features
鈥?/div>
Built-in wide band amplifier
(130 MHz/鈥? dB typ.@4 Vp-p)
鈥?/div>
Input dynamic range : 1.0 Vp-p (typ.)
鈥?/div>
R, G and B in a single package
鈥?/div>
I
2
C bus control
Contrast control
Subcontrast control
Brightness control
OSD contrast control
Power save function
Input clamp pulse polarity selection
Output composite sync polarity selection
5-channel, 8-bit D/A
Blanking level control
Built-in sync separator (G channel only)
Built-in blanking mixing function
Built-in OSD mixing function
Built-in ABL function
Video interval detection function
Absolute Maximum Ratings
(Ta=25 擄C)
鈥?/div>
Supply voltage
V
CC
14
鈥?0 to +75
鈥?5 to +150
V
擄C
擄C
鈥?/div>
Operating temperature
Topr
鈥?/div>
Storage temperature Tstg
鈥?/div>
Allowable power dissipation
P
D
28 pin DIP (Plastic)
1794
mW
(when mounted on a 11.5 cm
脳
12.0 cm substrate)
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Operating Conditions
Recommended supply voltage
V
CC
1
V
CC
2
1
SDA VDET/COFF-RGB 28
2
SCL
DA/CSYNC/ABL 27
R-S/H 26
R-OUT 25
GND-R 24
G-S/H 23
G-OUT 22
GND-G 21
V
CC
1 20
B-S/H 19
B-OUT 18
GND-B 17
BLK 16
YS 15
12鹵0.5
5鹵0.25
V
V
Applications
High resolution computer displays
Structure
Bipolar silicon monolithic IC
3
COFF-R
4
COFF-G
5
COFF-B
6
RIN
7
V
CC
2
8
GIN
9
SYNC CON
10 BIN
11 CLP
12 OSD-R
13 OSD-G
14 OSD-B
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E96Z18-TE
