CX28343 Datasheet

  • CX28343

  • ETC [Dual/Triple/Quad/Hex/Octal-Enhanced DS3/E3 Framer]

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

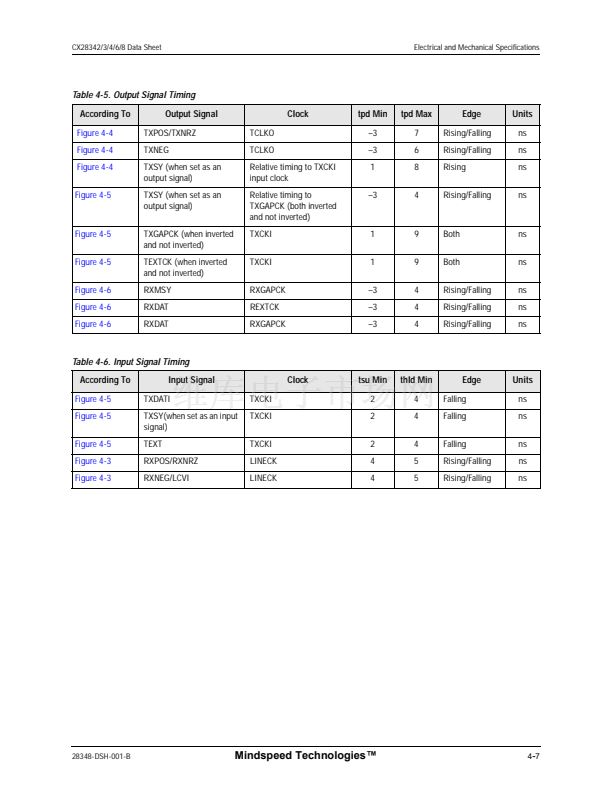

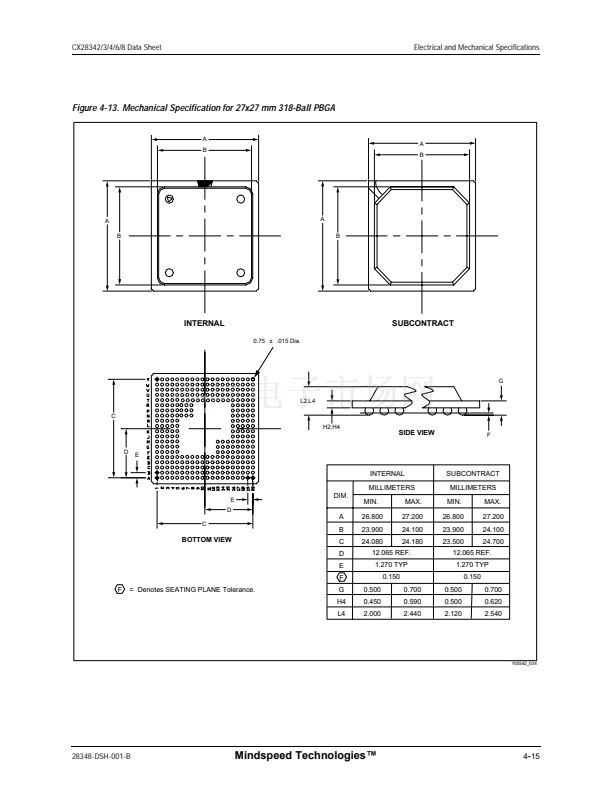

CX28342/3/4/6/8
Dual/Triple/Quad/Hex/Octal-Enhanced
DS3/E3 Framer
The CX28342/3/4/6/8 provides Dual, Triple, Quad, Hex, and Octal DS3/E3
framers designed to support DS3-M13, DS3-C-bit parity, E3-G.751, and
E3-G.832 transmission formats.
The CX28342/3/4/6/8 provides framing recovery for M13, M23, C-bit
parity, G.751, and G.832 formatted signals. A FIFO buffer in the receive
path can be enabled to reduce jitter on the incoming data. The CX28342/
3/4/6/8 devices allow for ease of configuration, while providing
maximum flexibility to support the transmission and recovery of industry
standard formats. It provides a flexible overhead bit generation method in
DS3/E3 modes to source overhead bits on an individual framer.
Distinguishing Features
!
!
!
!
!
!
!
!
NOTE:
The index letter
i,
appearing in a register鈥檚 name, represents the
channel number, one per channel.
!
Functional Block Diagram
VCO
RXCKI
!
!
RXPOS
RXNEG
LINECK
TXPOS
TXNEG
TCLKO
RXDAT
RXMSY
RXGAPCK
REXTCK
Channel 1
TXDATI
Framer
TXCKI
(Typical All Channels)
TEXT
TEXTCK
TXSY
TXGAPCK
Two, three, four, six, eight independent T3/
E3 framers in one package
Line coding supported:
"
T3-B3ZS, NRZ, AMI
"
E3-HDB3, NRZ, AMI
Framing supported:
"
T3-M13, M23, C-bit parity
"
E3-G.751, G.832
Inserts and extracts overhead bits
Full FEAC and TDL channels support
Full Performance Monitoring support per
T1.231
Integrated Dejitter FIFO
Glueless interfaces to the following
processors:
"
Intel: 8051, 8151, 8031, 8751, 8x251
"
Motorola: 68000, 68020, 68030, 68302
An asynchronous processor interface
LIU Interfaces:
"
Glueless interface to Conexant鈥檚 DS3/E3
LIU (CX2832/3)
"
Option for a definition of LIU鈥檚 clocks
polarity-sampling edge
Power Supplies and Power Consumption
"
I/O 3.3 V, input 5 V-tolerant, core 2.5 V
"
Requires 3.3 V and 2.5 V power
supplies. Optional 5 V supply required
for 5 V input tolerance
"
Low power operation (<200 mW per
port)
System Side
Line Side
Applications
!
!
Channel 2
Framer
ONESEC
MOTO
AD
A
ALE
RD
WR
CS
DTACK
INTR
!
!
!
!
!
!
!
Digital Cross-Connect Systems
Digital PCM Switches
Access Concentrators
CSUs
ATM Switches
Concentrators
PBXs
Routers
Test Equipment
Microprocessor
Interface
Channel 3
Framer
Channel 4
Framer
Testing
!
JTAG boundary scan support
28348-DSH-001-B
Mindspeed Technologies鈩?/div>
February
2003
