Set-top Box Solutions
Satellite
Digital Satellite Tuner
CX24109
Highly Integrated, Direct Down-Conversion Satellite Tuner
Conexant鈥檚 broadband communications portfolio includes a comprehensive
suite of semiconductor solutions that enable the digital home and information
network. Combining extensive experience in broadband systems and mixed-
signal integrated circuit design, Conexant introduces the CX24109 Digital
Satellite Tuner 鈥?a highly integrated, direct down-conversion satellite tuner
intended for high-volume digital video, audio, and data receivers. The
CX24109 consists of an LNA, variable RF attenuator, quadrature
downconverter, variable IF gain amplifiers, variable low-pass filters, VCO,
and synthesizer. This highly integrated satellite tuner RF IC does not require
a balun, therefore simplifying RF layout and reducing the overall BOM cost.
When combined with Conexant鈥檚 CX24123 QPSK demodulator/FEC decoder,
the chipset provides a complete broadband satellite front-end solution capable
of operating from 1 to 45 Msps in the most demanding satellite environments.
The CX24109 and CX24123 provides a streamlined, cost optimized front-end
solution offered in a compact design that saves valuable board space and is
easy to implement.
Distinguishing Features
鈥?DVB/DSS/DCII 鈥?compliant
鈥?Single-chip RF-to-baseband
satellite receiver
鈥?Zero-IF architecture eliminates
the need for image-reject filtering
鈥?Variable baseband filters for optimal
interference rejection
鈥?Integrated LNA and LO with onboard
VCO and synthesizer
鈥?Single +5V supply
鈥?48-pin ETQFP
Part Number
CX24109

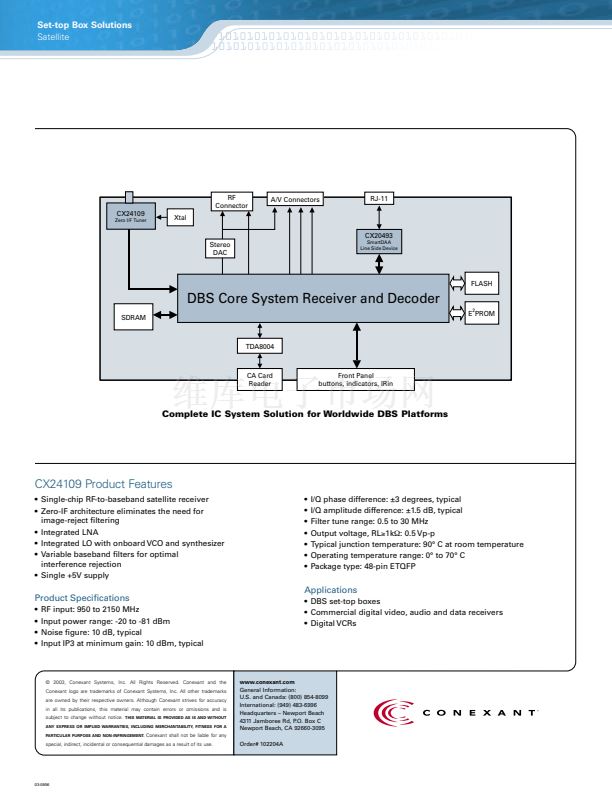

CX24109 Block Diagram
Description
Digital Satellite Tuner
