GigaBlaze
Transceiver Cores
廬

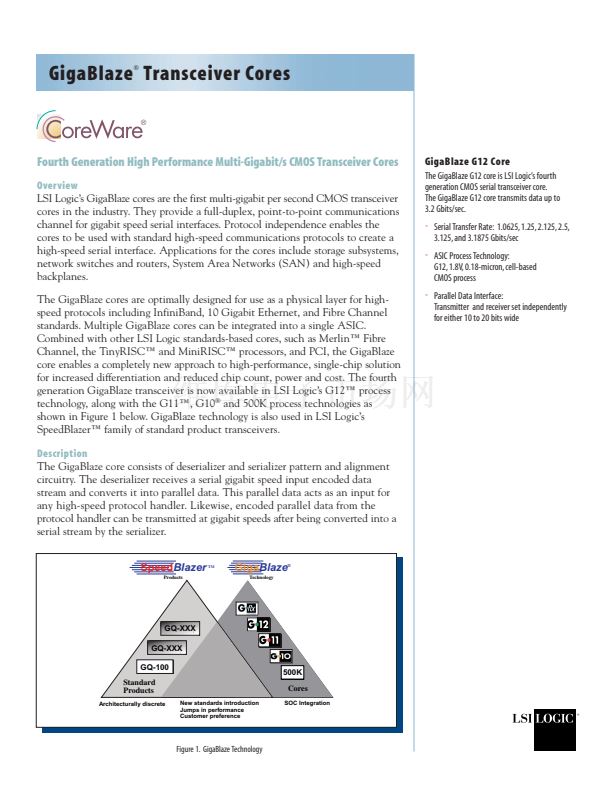

Fourth Generation High Performance Multi-Gigabit/s CMOS Transceiver Cores
Overview
LSI Logic鈥檚 GigaBlaze cores are the first multi-gigabit per second CMOS transceiver
cores in the industry. They provide a full-duplex, point-to-point communications
channel for gigabit speed serial interfaces. Protocol independence enables the
cores to be used with standard high-speed communications protocols to create a
high-speed serial interface. Applications for the cores include storage subsystems,
network switches and routers, System Area Networks (SAN) and high-speed
backplanes.

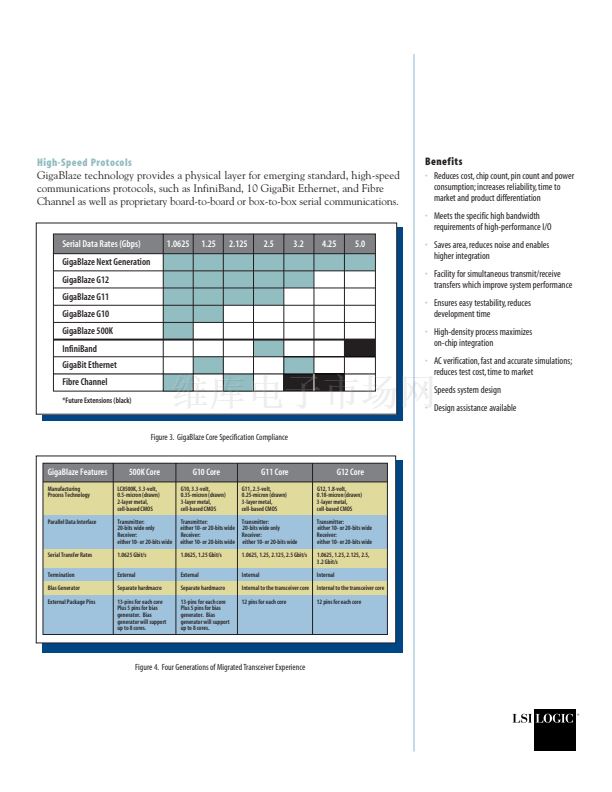

The GigaBlaze cores are optimally designed for use as a physical layer for high-
speed protocols including InfiniBand, 10 Gigabit Ethernet, and Fibre Channel
standards. Multiple GigaBlaze cores can be integrated into a single ASIC.

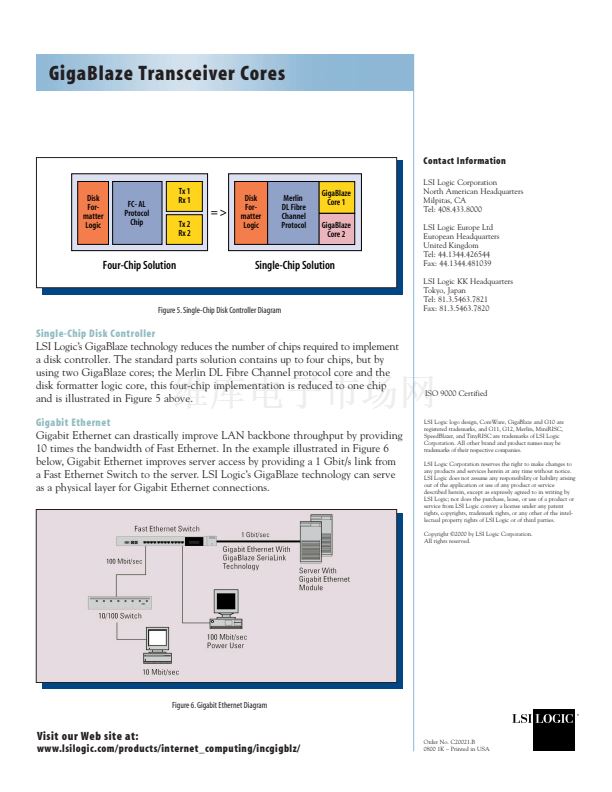

Combined with other LSI Logic standards-based cores, such as Merlin鈩?Fibre
Channel, the TinyRISC鈩?and MiniRISC鈩?processors, and PCI, the GigaBlaze
core enables a completely new approach to high-performance, single-chip solution
for increased differentiation and reduced chip count, power and cost. The fourth
generation GigaBlaze transceiver is now available in LSI Logic鈥檚 G12鈩?process
technology, along with the G11鈩? G10
廬
and 500K process technologies as
shown in Figure 1 below. GigaBlaze technology is also used in LSI Logic鈥檚
SpeedBlazer鈩?family of standard product transceivers.
Description

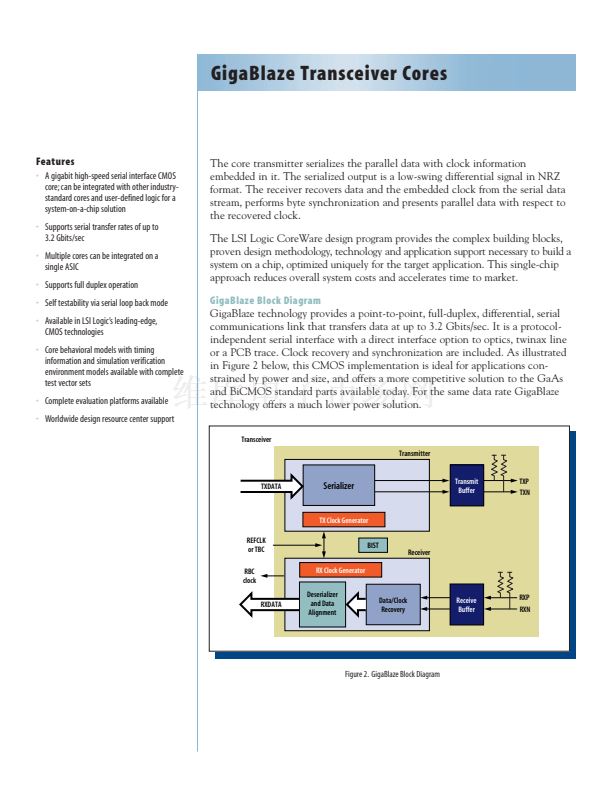

The GigaBlaze core consists of deserializer and serializer pattern and alignment
circuitry. The deserializer receives a serial gigabit speed input encoded data
stream and converts it into parallel data. This parallel data acts as an input for
any high-speed protocol handler. Likewise, encoded parallel data from the
protocol handler can be transmitted at gigabit speeds after being converted into a
serial stream by the serializer.
SpeedBlazer
Products
GigaBlaze G12 Core
The GigaBlaze G12 core is LSI Logic鈥檚 fourth
generation CMOS serial transceiver core.
The GigaBlaze G12 core transmits data up to
3.2 Gbits/sec.
鈥?/div>
Serial Transfer Rate: 1.0625, 1.25, 2.125, 2.5,
3.125, and 3.1875 Gbits/sec
鈥?/div>
ASIC Process Technology:
G12, 1.8V, 0.18-micron, cell-based
CMOS process
鈥?/div>
Parallel Data Interface:
Transmitter and receiver set independently
for either 10 to 20 bits wide
TM
GigaBlaze
廬
Technology
GQ-XXX
GQ-XXX
GQ-100
Standard
Products
Architecturally discrete
New standards introduction
Jumps in performance
Customer preference
500K
Cores
SOC Integration
Figure 1. GigaBlaze Technology
