CVA2412 Datasheet

  • CVA2412

  • Low Cost 100MHz Triple CRT Driver

  • 54.08KB

  • 4頁

  • CALOGIC   CALOGIC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Low Cost 100MHz
Triple CRT Driver
CORPORATION
CVA2412AX
FEATURES
DESCRIPTION
The CVA2412AX is a very low cost solution for high resolution
monitors. The device can be used with pre-amps, where the
common emitter transistor is already a part of the pre-amp.
With this device, OSD, peaking coil, and peaking capacitor
options are available. A very small heat sink is required to
pick-up ground from the standard TO220 package Tab. With
100MHz bandwidth, the device is an ideal low cost solution for
17" and 21" monitors.
ORDERING INFORMATION
Part
CVA2412TAX
Package
T11A
Temperature
-20
o
C to +100
o
C
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100MHz
Ease of Use
EMI Control Option
OSD Option
APPLICATIONS
CRT Driver for up to 82kHz Monitors with Resolution
up to 1280 x 1024

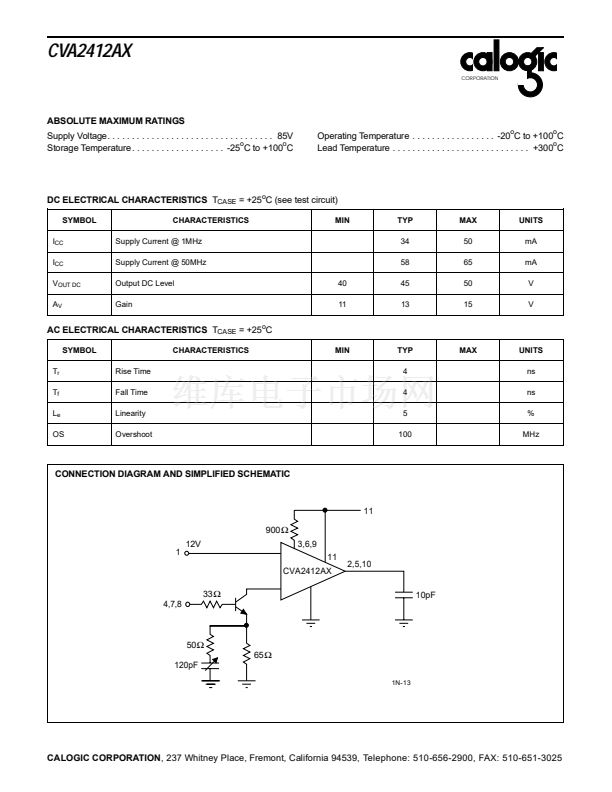

CONNECTION DIAGRAM AND SIMPLIFIED SCHEMATIC
11
10
9
8
EMITTER
7
EMITTER
6
COLLECTOR
5
4
3
COLLECTOR
2
1
V
OUT
V
BIAS
V
OUT
EMITTER
V
C C
V
OUT
COLLECTOR
V
CC
11
COLLECTOR
9,6,3
Q1
V
OUT
2,5,10
Q2
V
BIAS
1
Q3
EMITTER
8,7,4
GND
TAB
1N-12
TAB = GND
TOP VIEW
T11A PACKAGE
1B-22
CALOGIC CORPORATION,
237 Whitney Place, Fremont, California 94539, Telephone: 510-656-2900, FAX: 510-651-3025
