6 x 6 mm QFN SMT package

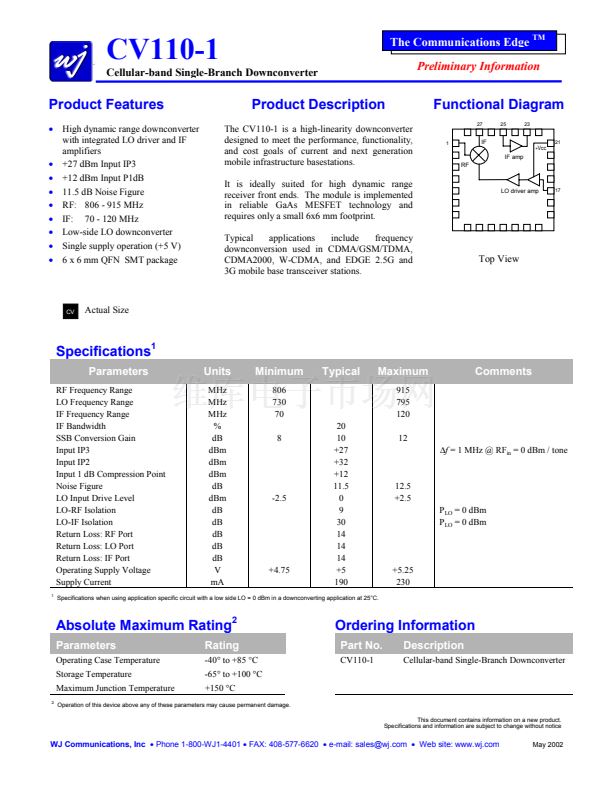

Product Description
The CV110-1 is a high-linearity downconverter
designed to meet the performance, functionality,
and cost goals of current and next generation
mobile infrastructure basestations.
It is ideally suited for high dynamic range
receiver front ends. The module is implemented
in reliable GaAs MESFET technology and
requires only a small 6x6 mm footprint.
Typical
applications
include
frequency
downconversion used in CDMA/GSM/TDMA,
CDMA2000, W-CDMA, and EDGE 2.5G and
3G mobile base transceiver stations.
Functional Diagram
27
25
23
1
8
IF
IF amp
+
Vcc
21
RF
LO driver amp
17
Top View
CV
Actual Size
Specifications
1
Parameters
RF Frequency Range
LO Frequency Range
IF Frequency Range
IF Bandwidth
SSB Conversion Gain
Input IP3
Input IP2
Input 1 dB Compression Point
Noise Figure
LO Input Drive Level
LO-RF Isolation
LO-IF Isolation
Return Loss: RF Port
Return Loss: LO Port
Return Loss: IF Port
Operating Supply Voltage
Supply Current
1
Units
MHz
MHz
MHz
%
dB
dBm
dBm
dBm
dB
dBm
dB
dB
dB
dB
dB
V
mA
Minimum
806
730
70
8
Typical
Maximum
915
795
120
Comments
-2.5
+4.75
20
10
+27
+32
+12
11.5
0
9
30
14
14
14
+5
190
12
鈭唂
= 1 MHz @ RF
in
= 0 dBm / tone
12.5
+2.5
P
LO
= 0 dBm
P
LO
= 0 dBm
+5.25
230
Specifications when using application specific circuit with a low side LO = 0 dBm in a downconverting application at 25擄C.
Absolute Maximum Rating
2
Parameters
Operating Case Temperature
Storage Temperature
Maximum Junction Temperature
2
Ordering Information
Part No.
CV110-1
Rating
-40擄 to +85
擄C
-65擄 to +100 擄C
+150 擄C
Description
Cellular-band Single-Branch Downconverter
Operation of this device above any of these parameters may cause permanent damage.
This document contains information on a new product.
Specifications and information are subject to change without notice
WJ Communications, Inc
鈥?/div>
Phone 1-800-WJ1-4401
鈥?/div>
FAX: 408-577-6620
鈥?/div>
e-mail: sales@wj.com
鈥?/div>
Web site: www.wj.com
May 2002
