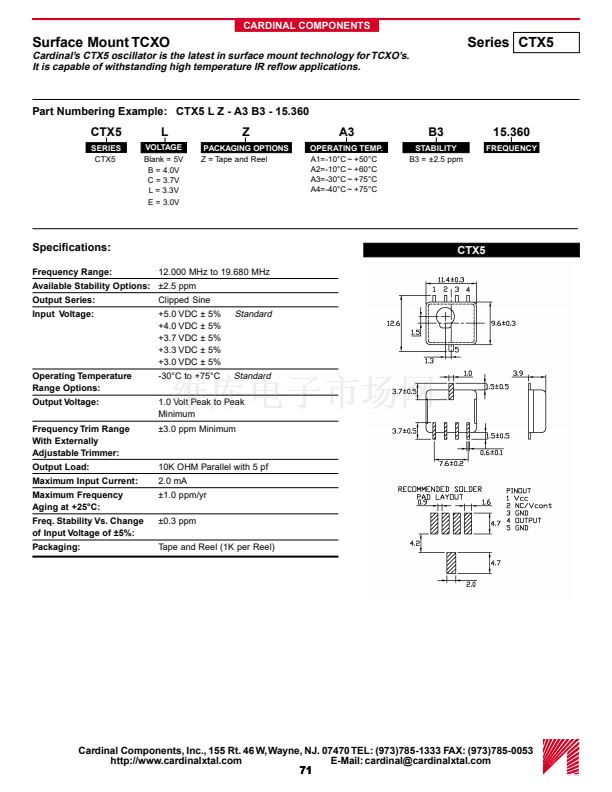

CARDINAL COMPONENTS
Surface Mount TCXO
Cardinal鈥檚 CTX5 oscillator is the latest in surface mount technology for TCXO鈥檚.
It is capable of withstanding high temperature IR reflow applications.
Series CTX5
Part Numbering Example: CTX5 L Z - A3 B3 - 15.360
CTX5
SERIES
CTX5
L
VOLTAGE
Blank = 5V
B = 4.0V
C = 3.7V
L = 3.3V
E = 3.0V
Z
PACKAGING OPTIONS
Z = Tape and Reel
A3
OPERATING TEMP.
A1=-10擄C ~ +50擄C
A2=-10擄C ~ +60擄C
A3=-30擄C ~ +75擄C
A4=-40擄C ~ +75擄C
B3
STABILITY
B3 = 鹵2.5 ppm
15.360
FREQUENCY
Specifications:
Frequency Range:
Output Series:
Input Voltage:
12.000 MHz to 19.680 MHz
Clipped Sine
+5.0 VDC 鹵 5%
+4.0 VDC 鹵 5%
+3.7 VDC 鹵 5%
+3.3 VDC 鹵 5%
+3.0 VDC 鹵 5%
-30擄C to +75擄C
CTX5
Available Stability Options:
鹵2.5 ppm
Standard
Operating Temperature
Range Options:
Output Voltage:
Frequency Trim Range
With Externally
Adjustable Trimmer:
Output Load:
Maximum Input Current:
Maximum Frequency
Aging at +25擄C:
Freq. Stability Vs. Change
of Input Voltage of 鹵5%:
Packaging:
Standard
1.0 Volt Peak to Peak
Minimum
鹵3.0 ppm Minimum
10K OHM Parallel with 5 pf
2.0 mA
鹵1.0 ppm/yr
鹵0.3 ppm
Tape and Reel (1K per Reel)
Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053
.
http://www.cardinalxtal.com
E-Mail: cardinal@cardinalxtal.com
