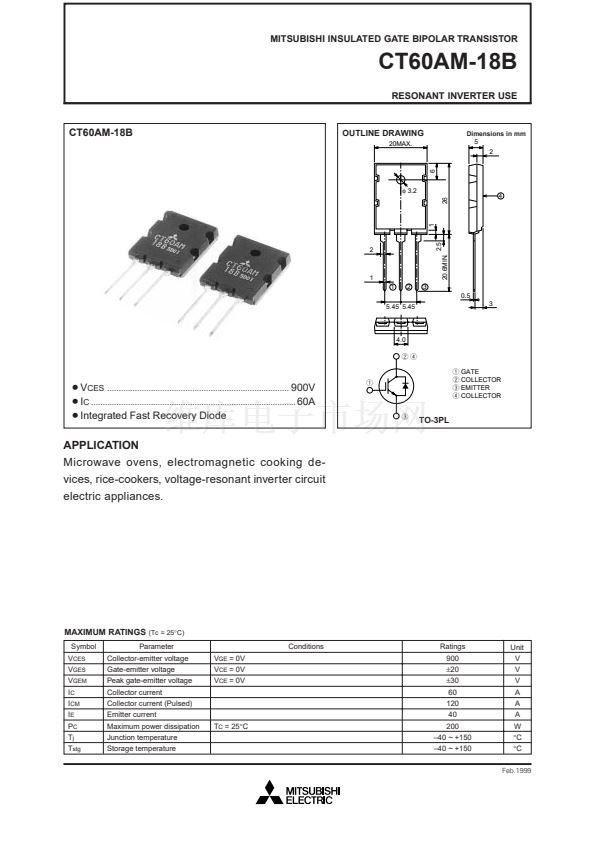

MITSUBISHI INSULATED GATE BIPOLAR TRANSISTOR
CT60AM-18B
RESONANT INVERTER USE
CT60AM-18B
OUTLINE DRAWING
20MAX.
Dimensions in mm
5
2
6
蠁
3.2
26
4
1
2
1
1
2
3
20.6MIN.
2.5
0.5
5.45 5.45
3
4.0
wr
q
GATE
w
COLLECTOR
e
EMITTER
r
COLLECTOR
e
隆V
CES ...............................................................................
900V
隆I
C .........................................................................................
60A
隆Integrated
Fast Recovery Diode
q
TO-3PL
APPLICATION
Microwave ovens, electromagnetic cooking de-
vices, rice-cookers, voltage-resonant inverter circuit
electric appliances.
MAXIMUM RATINGS
Symbol
V
CES
V
GES
V
GEM
I
C
I
CM
I
E
P
C
T
j
T
stg
(Tc = 25擄C)
Parameter
Collector-emitter voltage
Gate-emitter voltage
Peak gate-emitter voltage
Collector current
Collector current (Pulsed)
Emitter current
Maximum power dissipation
Junction temperature
Storage temperature
V
GE
= 0V
V
CE
= 0V
V
CE
= 0V
Conditions
Ratings
900
鹵20
鹵30
60
120
40
200
鈥?0 ~ +150
鈥?0 ~ +150
Unit
V
V
V
A
A
A
W
擄C
擄C
Feb.1999
T
C
= 25擄C
1
2
3
4
