CT2100-400 Datasheet

  • CT2100-400

  • CT2100-400 MICROPROCESSOR CONTROLLED QUAD SOLID STATE RELAY

  • 6頁

  • AEROFLEX

掃碼查看芯片數據手冊

上傳產品規(guī)格書

PDF預覽

CT2100-400
MICROPROCESSOR CONTROLLED
QUAD SOLID STATE RELAY

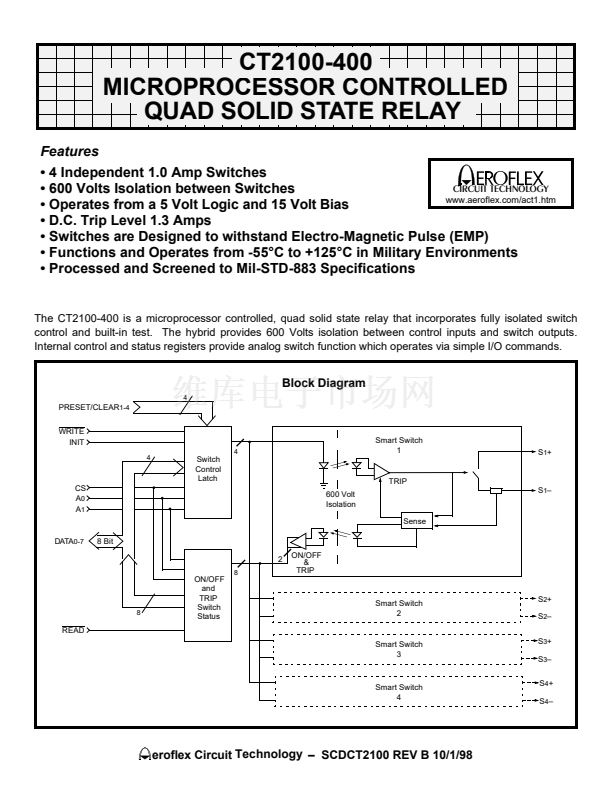

Features
鈥?4 Independent 1.0 Amp Switches
CIRCUIT TECHNOLOGY
鈥?600 Volts Isolation between Switches
www.aeroflex.com/act1.htm
鈥?Operates from a 5 Volt Logic and 15 Volt Bias
鈥?D.C. Trip Level 1.3 Amps
鈥?Switches are Designed to withstand Electro-Magnetic Pulse (EMP)
鈥?Functions and Operates from -55擄C to +125擄C in Military Environments
鈥?Processed and Screened to Mil-STD-883 Specifications

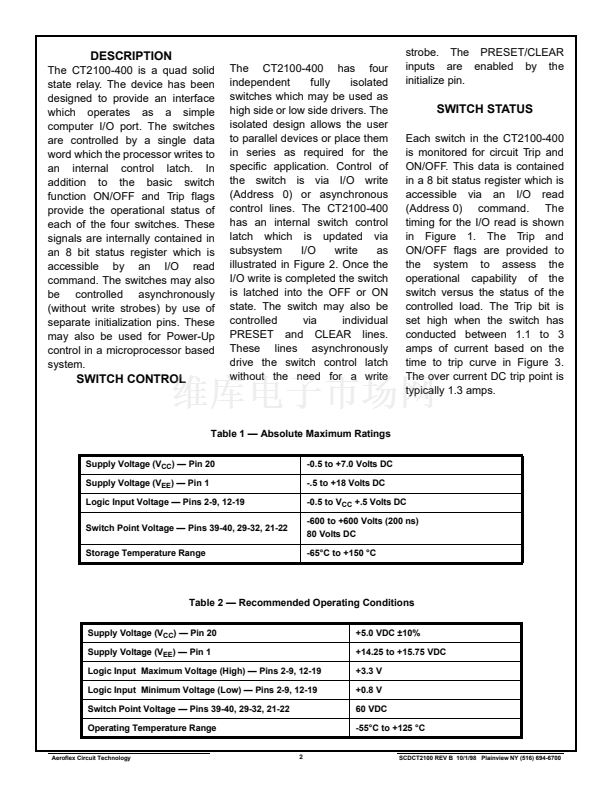

The CT2100-400 is a microprocessor controlled, quad solid state relay that incorporates fully isolated switch
control and built-in test. The hybrid provides 600 Volts isolation between control inputs and switch outputs.
Internal control and status registers provide analog switch function which operates via simple I/O commands.
Block Diagram
4
PRESET/CLEAR
1-4
WRITE
INIT
4
4
Smart Switch
1
S
1
+
Switch
Control
Latch
600 Volt
Isolation
CS
A
0
A
1
TRIP
S
1
鈥?/div>
Sense
DATA
0-7
8 Bit
2
8
ON/OFF
&
TRIP
8
ON/OFF
and
TRIP
Switch
Status
Smart Switch
2
S
2
+
S
2
鈥?/div>
S
3
+
S
3
鈥?/div>
S
4
+
S
4
鈥?/div>
READ
Smart Switch
3
Smart Switch
4

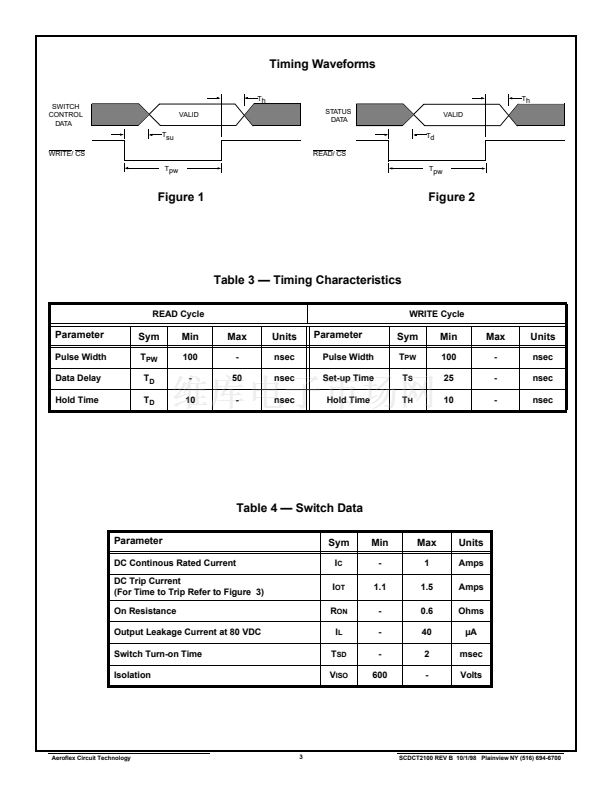

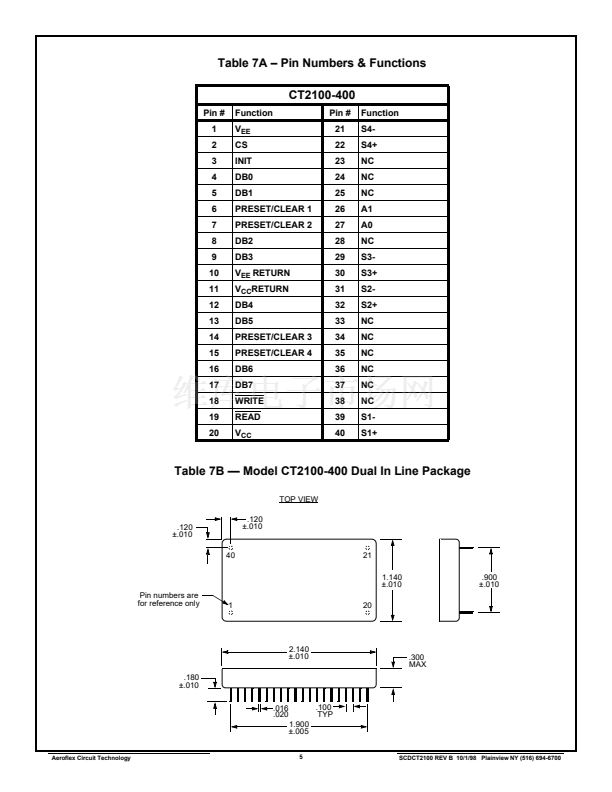

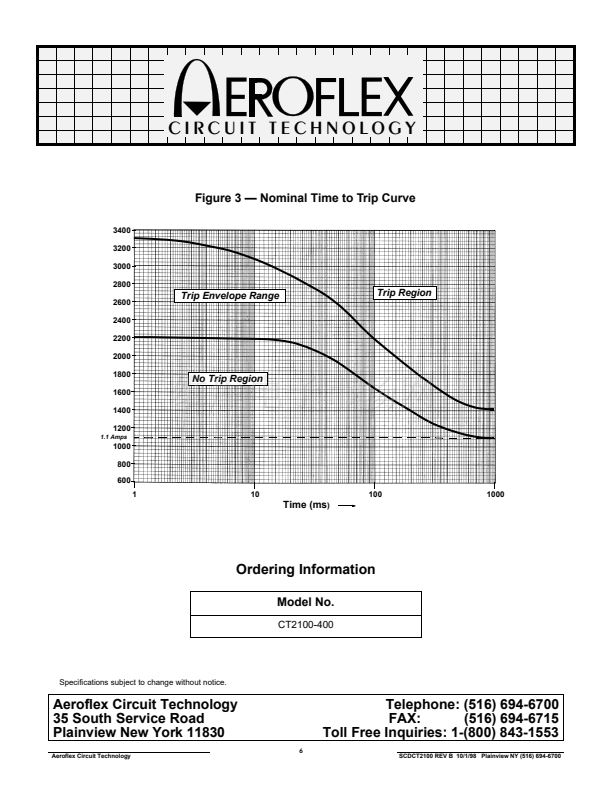

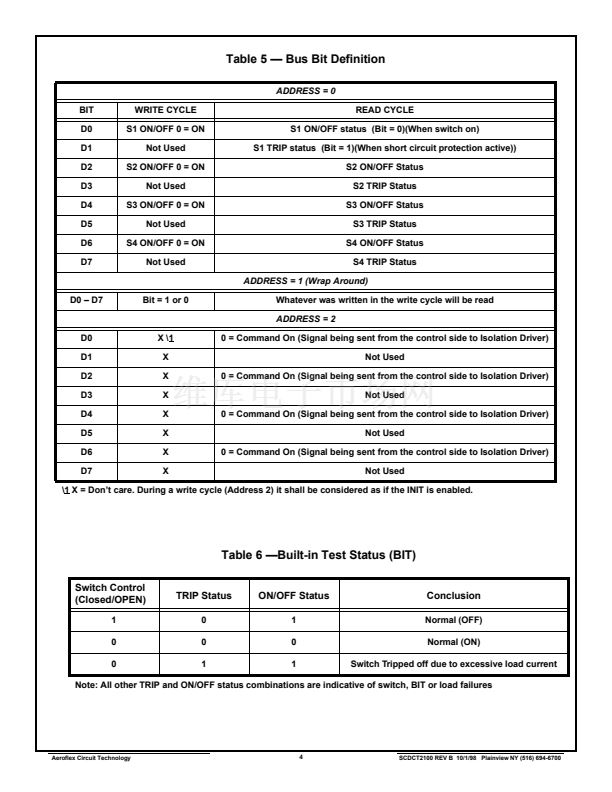

eroflex Circuit Technology 鈥?SCDCT2100 REV B 10/1/98
