CHF1.5KE400CA Datasheet

  • CHF1.5KE400CA

  • 262.11KB

  • Microsemi

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

8700 E. Thomas Road
Scottsdale, AZ 85251
PH: (480) 941-6300
FAX: (480) 947-1503

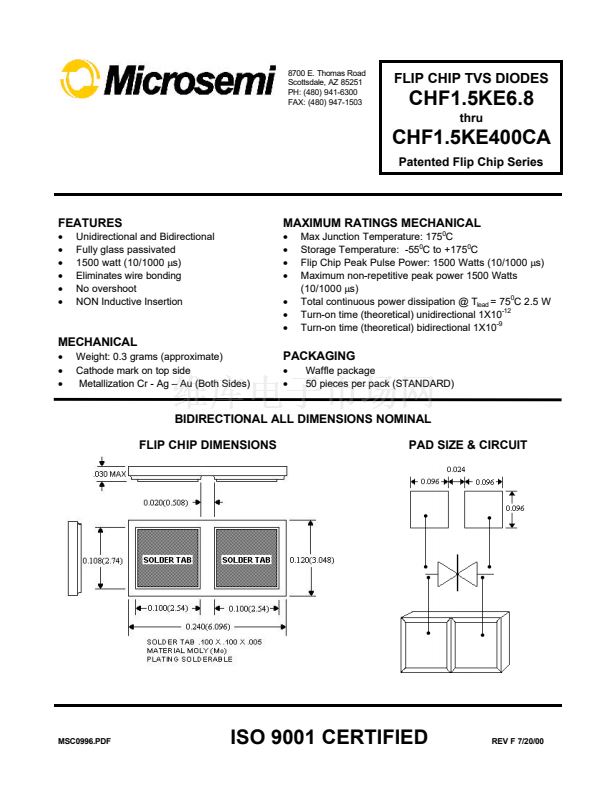

FLIP CHIP TVS DIODES
CHF1.5KE6.8
thru
CHF1.5KE400CA
Patented Flip Chip Series
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Unidirectional and Bidirectional
Fully glass passivated
1500 watt (10/1000
碌s)
Eliminates wire bonding
No overshoot
NON Inductive Insertion
MAXIMUM RATINGS MECHANICAL
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Max Junction Temperature: 175
0
C
Storage Temperature: -55
0
C to +175
0
C
Flip Chip Peak Pulse Power: 1500 Watts (10/1000
碌s)
Maximum non-repetitive peak power 1500 Watts
(10/1000
碌s)
Total continuous power dissipation @ T
lead
= 75
0
C 2.5 W
Turn-on time (theoretical) unidirectional 1X10
-12
Turn-on time (theoretical) bidirectional 1X10
-9
MECHANICAL
鈥?/div>
鈥?/div>
鈥?/div>
Weight: 0.3 grams (approximate)
Cathode mark on top side
Metallization Cr - Ag 鈥?Au (Both Sides)
PACKAGING
鈥?/div>
鈥?/div>
Waffle package
50 pieces per pack (STANDARD)
BIDIRECTIONAL ALL DIMENSIONS NOMINAL
FLIP CHIP DIMENSIONS
PAD SIZE & CIRCUIT
MSC0996.PDF
ISO 9001 CERTIFIED
REV F 7/20/00
