APPLICATION NOTE
M32C/80 Series
[CAN] Effects of PLL jitters on CAN communication
Introduction

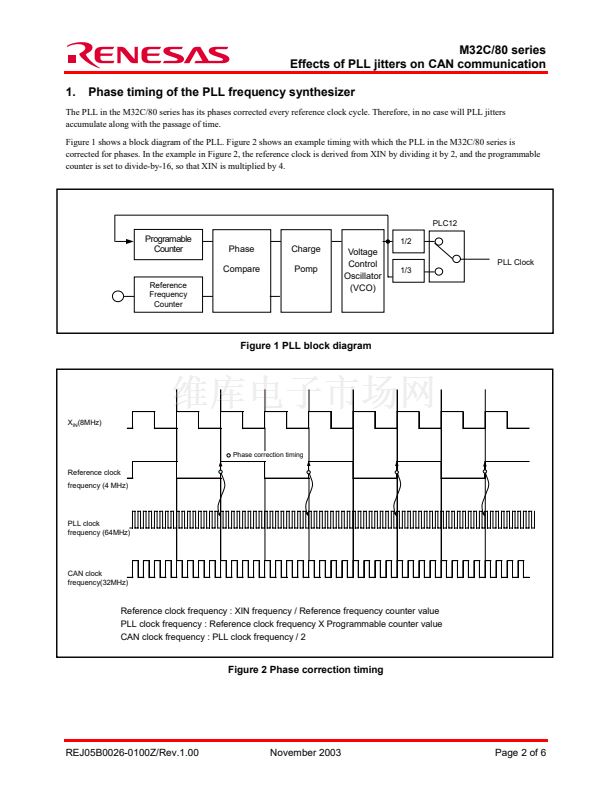

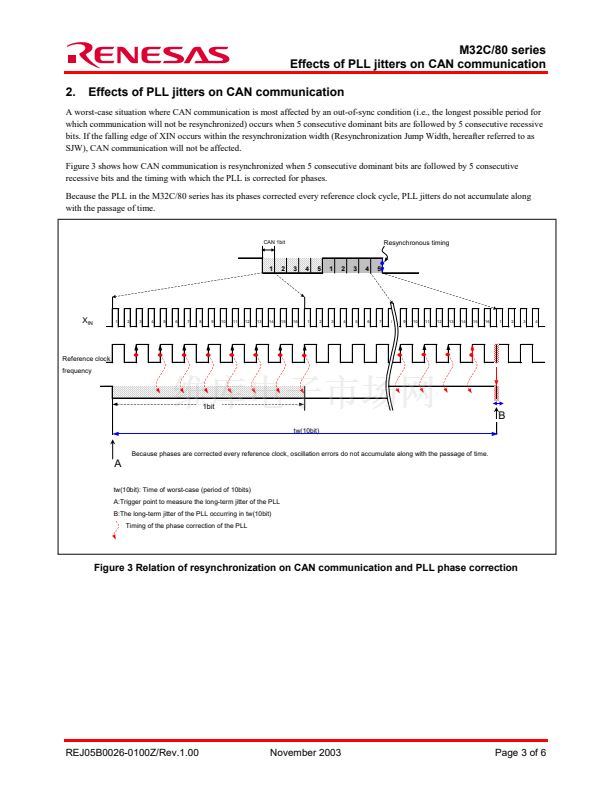

This document describes the phase correction mechanism of the PLL frequency synthesizer (hereafter referred to as the PLL) used in
the M32C/80 series microcomputers and the effects of PLL jitters on CAN communication.
Target Device
M32C/81, 83,84,85,86 groups
