MITSUMI
Power Supply Voltage & Signal
CAM-B49, CCM-B50 Series
Connectors
FEATURES
1. 12 pin and 15 pin power connector of an angle
type on the plug side.
2. The lock device ensures secure fitting.
3. This type is common to both power and signal
contact pins.
CAM-B49(Plug)
CCM-B50(Socket)
HOW TO ORDER
1. CAM-B49 Series (Plug)
2. CCM-B50 Series (Socket)
B49-
1
1
2
3
4
5
6
7
8
9
2
-02 0- I J B A A
3
4
5 6 7
8 9
B50-012-
1
2
3
1 Series No.
2 No. of contacts (012 : 12pins)
3 Running No. assigned by us
Series No.
No. of contacts (012 : 12pins, 015 : 15pins)
Housing material (02 : PBT resin)
Housing UL grade (0 : UL94V-0)
Contact plating (I : Tin reflow plating)
Contact plating thickness (J : 3.0碌)
Contact tail style (B : Angle)
Accessory for connector outside (A : None)
Accessory for connector inside (A : None)
SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
Rated Voltage
Rated Current
Withstanding Voltage
Insulation Resistance
Contact Resistance
MECHANICAL CHARACTERISTICS
Life (Matching Cycle)
Total Insertion Force
Total Withdrawal Force
Using Temperature Range
30 times
117.6N (12kgf) max.
7.06N (0.72kgf) min.
-35~+85藲C
14V DC
10A
500V AC (rms) 1minute
100M鈩?min. (at 500V DC)
70m鈩?max.
MITSUMI

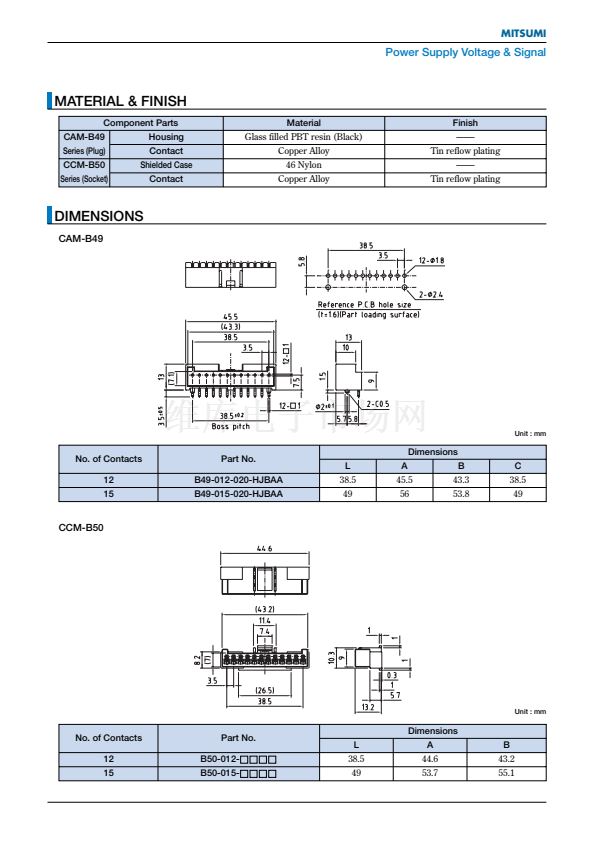

1
2
