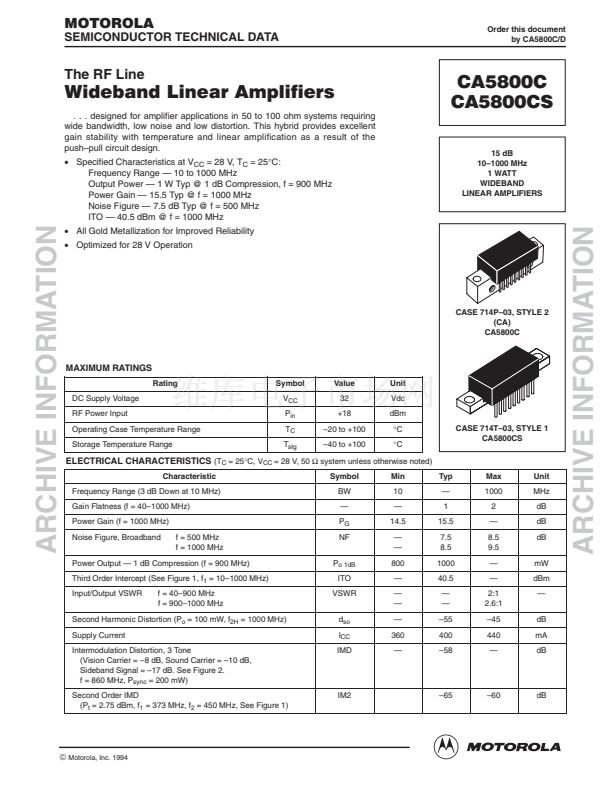

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document
by CA5800C/D
The RF Line
Wideband Linear Amplifiers
. . . designed for amplifier applications in 50 to 100 ohm systems requiring
wide bandwidth, low noise and low distortion. This hybrid provides excellent
gain stability with temperature and linear amplification as a result of the
push鈥損ull circuit design.
鈥?/div>
Specified Characteristics at V
CC
= 28 V, T
C
= 25擄C:
Frequency Range 鈥?10 to 1000 MHz
Output Power 鈥?1 W Typ @ 1 dB Compression, f = 900 MHz
Power Gain 鈥?15.5 Typ @ f = 1000 MHz
Noise Figure 鈥?7.5 dB Typ @ f = 500 MHz
ITO 鈥?40.5 dBm @ f = 1000 MHz
CA5800C
CA5800CS
15 dB
10鈥?000 MHz
1 WATT
WIDEBAND
LINEAR AMPLIFIERS
ARCHIVE INFORMATION
鈥?/div>
All Gold Metallization for Improved Reliability
鈥?/div>
Optimized for 28 V Operation

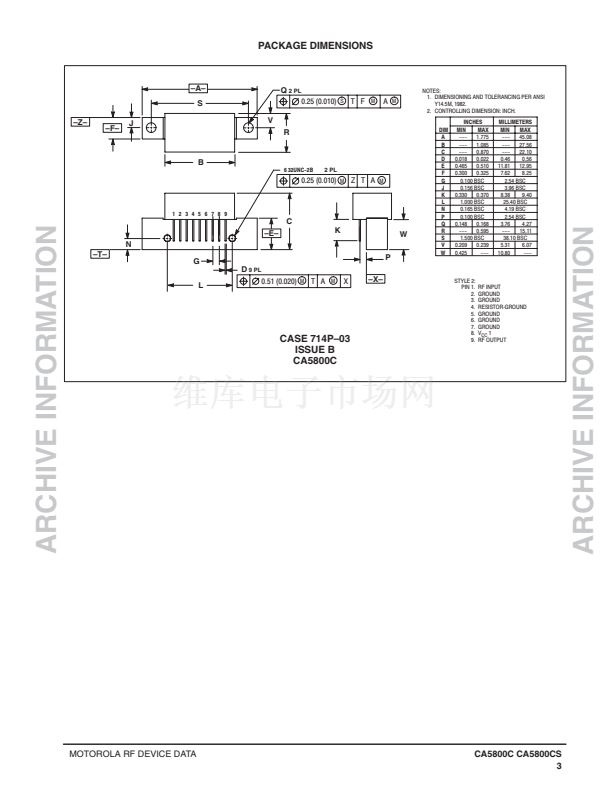

CASE 714P鈥?3, STYLE 2
(CA)
CA5800C
MAXIMUM RATINGS
Rating
DC Supply Voltage
RF Power Input
Operating Case Temperature Range
Storage Temperature Range
Symbol
V
CC
P
in
T
C
T
stg
Value
32
+18
鈥?0 to +100
鈥?0 to +100
Unit
Vdc
dBm
擄C
擄C

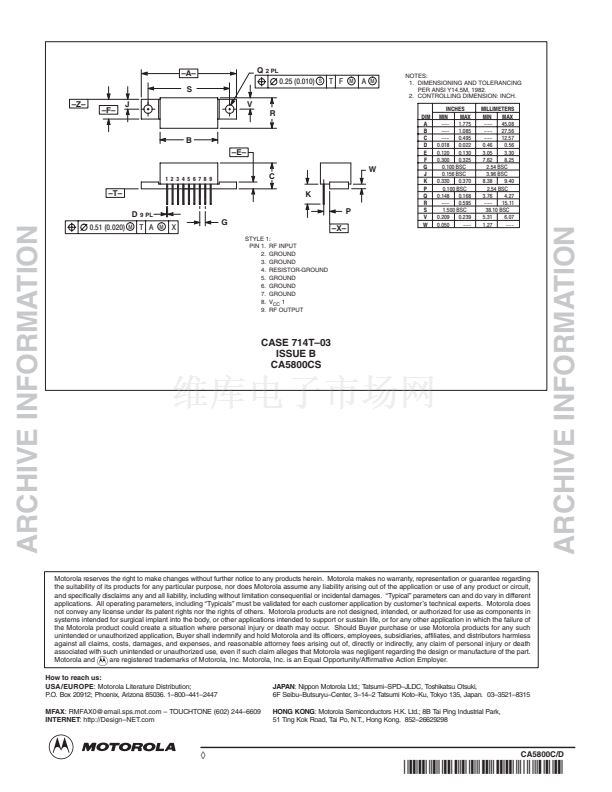

CASE 714T鈥?3, STYLE 1
CA5800CS
ELECTRICAL CHARACTERISTICS
(T
C
= 25擄C, V
CC
= 28 V, 50
鈩?/div>
system unless otherwise noted)
Characteristic
Frequency Range (3 dB Down at 10 MHz)
Gain Flatness (f = 40鈥?000 MHz)
Power Gain (f = 1000 MHz)
Noise Figure, Broadband
f = 500 MHz
f = 1000 MHz
Symbol
BW
鈥?/div>
P
G
NF
P
o 1dB
ITO
VSWR
d
so
I
CC
IMD
Min
10
鈥?/div>
14.5
鈥?/div>
鈥?/div>
800
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
360
鈥?/div>
Typ
鈥?/div>
1
15.5
7.5
8.5
1000
40.5
鈥?/div>
鈥?/div>
鈥?5
400
鈥?8
Max
1000
2
鈥?/div>
8.5
9.5
鈥?/div>
鈥?/div>
2:1
2.6:1
鈥?5
440
鈥?/div>
Unit
MHz
dB
dB
dB
mW
dBm
鈥?/div>
dB
mA
dB
Power Output 鈥?1 dB Compression (f = 900 MHz)

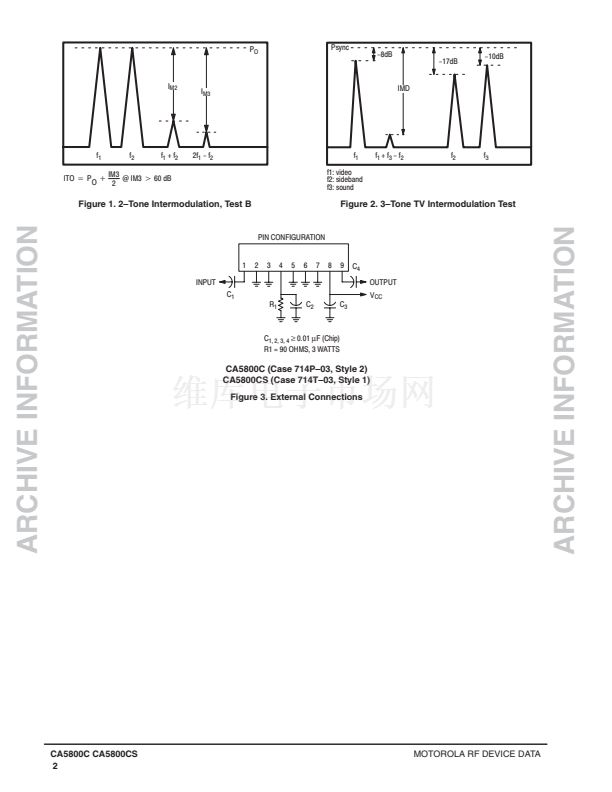

Third Order Intercept (See Figure 1, f
1
= 10鈥?000 MHz)
Input/Output VSWR
f = 40鈥?00 MHz
f = 900鈥?000 MHz
Second Harmonic Distortion (P
o
= 100 mW, f
2H
= 1000 MHz)
Supply Current
Intermodulation Distortion, 3 Tone
(Vision Carrier = 鈥? dB, Sound Carrier = 鈥?0 dB,
Sideband Signal = 鈥?7 dB. See Figure 2.
f = 860 MHz, P
sync
= 200 mW)
Second Order IMD
(P
t
= 2.75 dBm, f
1
= 373 MHz, f
2
= 450 MHz, See Figure 1)
IM2
鈥?5
鈥?0
dB
MOTOROLA RF
錚?/div>
Motorola, Inc. 1994
DEVICE DATA
CA5800C CA5800CS
1
ARCHIVE INFORMATION
