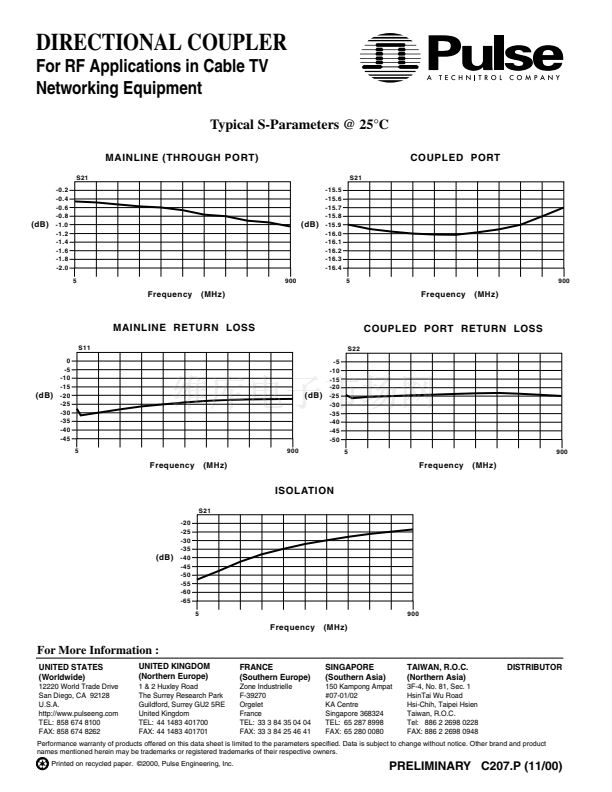

DIRECTIONAL COUPLER

For RF Applications in Cable TV

Networking Equipment

16 dB coupling level

Value-oriented construction

Operating bandwidth of 5 MHz to 900 MHz

Operating temperature: -40擄C to +85擄C

235擄C peak IR reflow temperature rating

Electrical Specifications @ 25擄C 鈥?Operating Temperature -40擄C to +85擄C

Part

Number

C3027

Frequency

(MHz)

5 - 900

Z

( )

75

Nom.

(dB)

16 +0.4/-0.6

Coupling

Flatness

(dB MAX)

0.6

Mainline Loss

TYP

(dB)

0.6

MAX

(dB)

1.3

Isolation

(dB MIN)

18

Return Loss

TYP

(dB)

22

MIN

(dB)

17

Mechanical

C3027

.200

5,08

.310

MAX

7,87

.310

7,87

DATE CODE

CTRY ORIGIN

.255

MAX

6,48

C3027

PIN 1

IDENTIFICATION

.210

MAX

5,33

.100

2,54

.200

5,08

Dimensions:

Inches

mm

Unless otherwise specified, all tolerances are 鹵 .005

0,13

PRELIMINARY C207.P (11/00)

路

路

路

路

路

路

路

路

路

路

路

路

路

路

路

路

路

路

路

路

U.S: 858 674 8100

U.K: 44 1483 401 700

W

Schematic

.100

2,54

.130

3,30

.090

2,29

1

6

2

3

.050

1,27

4

SUGGESTED PAD LAYOUT

PIN 1

IDENTIFICATION

INPUT

GND

COUPLED PORT

.040

1,02

6 PL

1

2

3

6

5

4

THROUGH PORT

GND

EXTERNAL

75

W

RESISTOR

BOTTOM VIEW

Weight

. . . . . . . . . . .0.35 grams

Tape & Reel

. . . . . . . . .850/reel

Tube

. . . . . . . . . . . . . . .65/tube

France: 33 3 84 35 04 04

Singapore: 65 287 8998

Taiwan: 886 2 2698 0228

http://www.pulseeng.com
